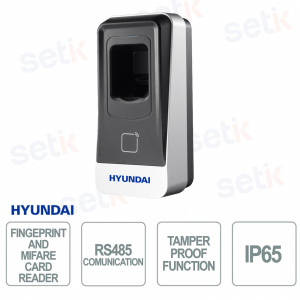

HYU-645 – IP65 Biometric Fingerprint and Mifare Card Reader for Access Control

HYU-645 – IP65 Biometric Fingerprint and Mifare Card Reader for Access Control

New

The HYU-645 is a biometric fingerprint and Mifare card reader for access control, designed to ensure maximum security and reliability for both indoor and outdoor environments. It supports up to 5,000 fingerprints, card reading at a distance of 3–10 cm, and various authentication modes (card only, fingerprint only, or combined). Equipped with RS485 communication with a secure CRC protocol, it stores data in encrypted form and integrates a high-precision CMOS optical module. Thanks to IP65 protection, an anti-sabotage tamper switch, and temperature resistance from -40°C to +70°C, it offers high performance in any condition.

Technical Data Sheet

Reference: HYU-645

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

HYU-645 | BIOMETRIC FINGERPRINT READER AND MIFARE CARD READER FOR ACCESS CONTROL

Dahua

The HYU-645 is a biometric fingerprint and Mifare card reader for access control, ideal for ensuring advanced security in indoor and outdoor environments. With a capacity of up to 5,000 fingerprints and card reading at a range of 3–10 cm, it offers multiple authentication modes and broad compatibility thanks to RS485 communication. Built with IP65 protection and resistant to extreme temperatures, it ensures reliable and long-lasting performance.

Main specifications:

- Biometric reader + Mifare cards

- Capacity up to 5,000 fingerprints

- Authentication mode: card, fingerprint or combined

- Secure RS485 communication with CRC protocol

- IP65 protection and resistance from -40°C to +70°C

- Anti-sabotage tamper and audible warnings

Further details

Authentication method:
It supports multiple login options, including card only, fingerprint only, or card + fingerprint combination, providing flexibility based on your security needs.
RS485 communication :
It uses a stable and secure connection with 19200bps transmission speed and CRC protocol, ensuring secure integration with access control systems.
Anti-sabotage tamper:
Protection system that detects tampering attempts and sends an immediate alarm, safeguarding the integrity of the device.
Card reading range:
Compatible with Mifare cards, it allows a reading distance of between 3 and 10 cm, ensuring quick and reliable identification.

Technical data sheet

HYU-645
Specifications
High-performance 32-bit processor
Fingerprint capacity: Up to 5,000 fingerprints
Footprint comparison mode: 1:1 and 1:N
Comparative impression time: 1:1 <1 sec="" 1:3000="" 1="" 5="" td="">
FAR (False Acceptance Rate): ≤0.001%
FRR (False Rejection Rate): ≤0.01%
Fingerprint recognition: optical module
The built-in card reader supports Mifare cards
Card reading range: 3~10cm
Communication interface: RS485
Transmission rate: 19200bps-N-8-1
LED indicators for power and communication
Incorporate sound alerts
Anti-sabotage tamper
IP65 protection rating
Power supply: 12V DC (±10%)
Operating temperature -40°C ~ +70°C
Operating humidity: 10% ~ 90%, non-condensing
Dimensions: 62 x 132 x 44 mm
Surface mounting
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
