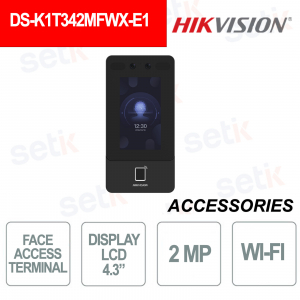

Hikvision DS-K1T342MFWX-E1 | AI 2MP Touch 4.3" IP65 Facial Terminal

Hikvision DS-K1T342MFWX-E1 | AI 2MP Touch 4.3" IP65 Facial Terminal

 
-35% nuevo

DS-K1T342MFWX-E1 - Hikvision is an advanced facial recognition terminal that uses deep learning algorithms for fast and precise identification with an accuracy of ≥99%. It features a 4.3" LCD touchscreen, a dual 2MP wide-angle lens, and supports up to 1,500 faces, 3,000 fingerprints, and 3,000 M1 cards. Authentication is fast (<0.2 s per user) and secure, with facial recognition even with a mask. It integrates two-way audio, TCP/IP support, Wi-Fi, and standard PoE, with the option to directly power electric locks. Resistant to IP65 protection and operating from -30°C to +60°C, it is ideal for businesses, offices, and facilities requiring intelligent and reliable access control.

Technical Data Sheet

referencia : DS-K1T342MFWX-E1

brand : Hikvision

EAN: 6942160439778

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DS-K1T342MFWX-E1 – FRONT ACCESS TERMINAL WITH 4.3" LCD SCREEN, 2MP RESOLUTION

Hikvision

The Hikvision DS-K1T342MFWX-E1 facial recognition terminal offers an advanced access control solution, thanks to deep learning algorithms that ensure fast and accurate recognition. Ideal for buildings, businesses and high-security environments, it supports multiple authentication (face, fingerprint, M1 card and PIN) with a high user management capacity. Thanks to the 4.3" LCD display, Wi-Fi and PoE connection and IP65 protection rating, it ensures maximum reliability and ease of use even in harsh environments .

Main features:

- Capacity: up to 1500 faces, 3000 fingerprints and 3000 cards

- 4.3” LCD touch display with dual 2MP camera

- Facial recognition in <0.2 seconds with ≥99% accuracy

- Supports mask recognition

- Connectivity: TCP/IP, Wi-Fi, PoE

- Two-way audio and web client management

- Dust and water resistant with IP65 certification

- Operating temperature: -30°C to +60°C

Further details

✅ Display :
 4.3" LCD touch screen with 272×480 resolution, equipped with 2MP dual wide-angle lens, ideal for clear images and reliable identification.
✅ Interface :
 Includes PoE, RS-485, Wiegand, USB, lock output, exit button and door contact , for full integration with access control systems.
✅ Two-way audio :
 Communication support via client software, internal and master stations, with integrated microphone and speaker for advanced management.
✅ Network:
 Compatible with TCP/IP and 2.4 GHz Wi-Fi, supports ISAPI and ISUP 5.0 protocols, with easy configuration via web client.
✅  Authentication :
 It offers multiple login methods with capacity of up to 1500 faces, 3000 fingerprints, 3000 M1 cards and personal PIN, with recognition time less than 0.2s and accuracy ≥99%.

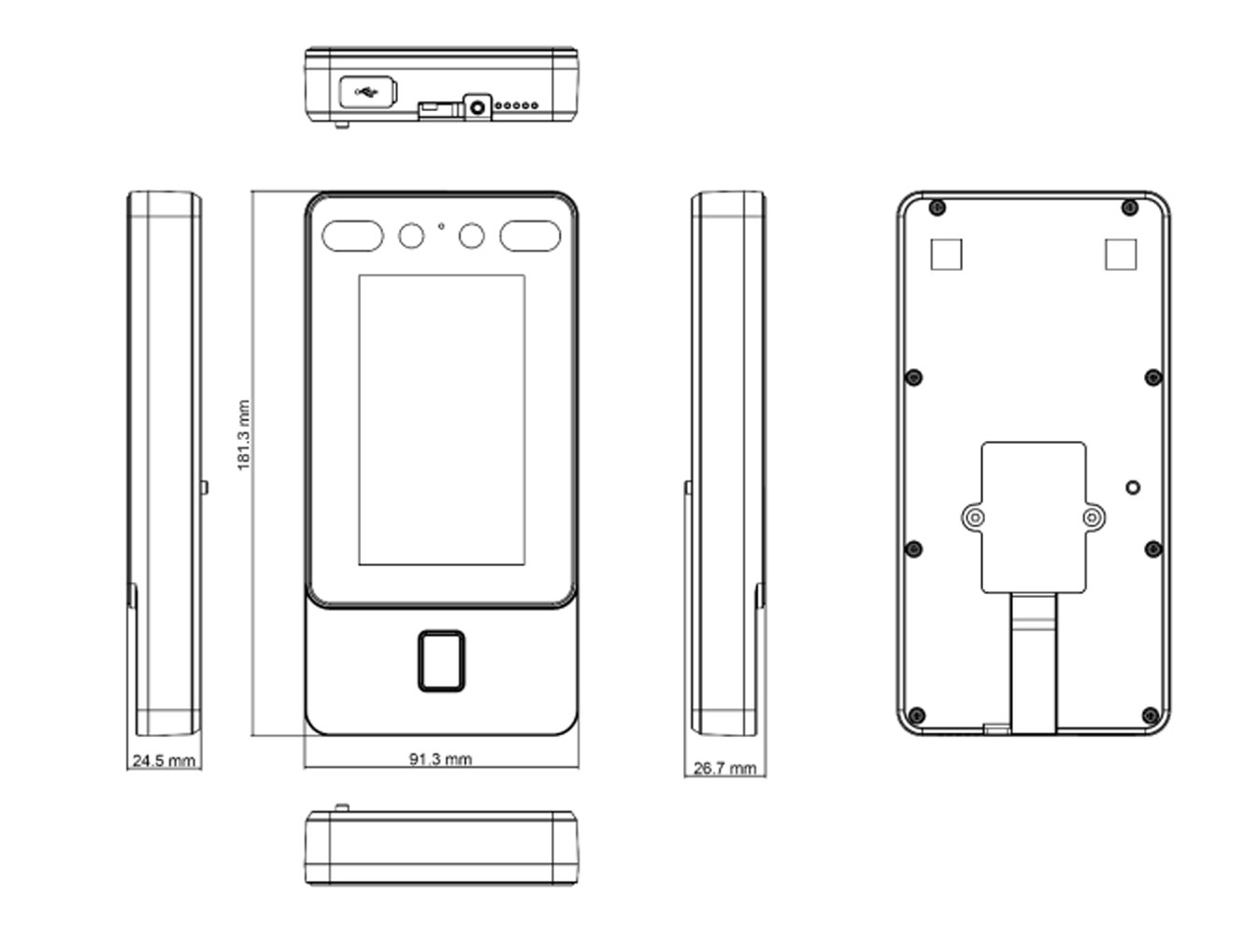

DS-K1T342MFWX-E1 dimensions

Technical data sheet

DS-K1T342MFWX-E1

System
Operation system Linux

Display

Screen size

4.3-inch

Resolution

272 × 480

Type

LCD

Operation method

Capacitive touch screen

Video

Pixel

2 MP

Lens

× 2

Standard video

PAL (Default) and NTSC

Network

Wired network

10M/100M self-adaptive

Wi-Fi

Support

Interface

PoE

IEEE802.3at, PoE standard

Network interface

1

RS-485

1

Wiegand

1

Lock control

1

Exit button

1

Door contact input

1

TAMPER

1

USB

1

Capacity
Card capacity 3,000
Face capacity 1,500
Fingerprint capacity 3,000
Event capacity 150,000

Authentication

Card type

M1 card

Card reading frequency

13.56 MHz
Face recognition duration ＜ 0.2 s
Face recognition accuracy rate ＞99%
Face recognition distance 0.3 to 1.5 m
Fingerprint recognition duration ＜1 s

General

Power supply

Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)
Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)

Working temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working humidity

0 to 90% (No condensation)
Dimensions 91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
Installation Wall Mounting
Protective level IP65
Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Weight Gross weight: 0.93 kg (2.05 lbs)
Net weight: 0.36 kg (0.79 lbs)
Function
Face anti-spoofing Support
Hik-Partner Pro Support
Face recognition Support
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
