Hikvision DS-K1T342MFWX-E1 | AI 2MP Touch 4.3" IP65 Facial Terminal

Hikvision DS-K1T342MFWX-E1 | AI 2MP Touch 4.3" IP65 Facial Terminal

 
-35% Neu

DS-K1T342MFWX-E1 - Hikvision is an advanced facial recognition terminal that uses deep learning algorithms for fast and precise identification with an accuracy of ≥99%. It features a 4.3" LCD touchscreen, a dual 2MP wide-angle lens, and supports up to 1,500 faces, 3,000 fingerprints, and 3,000 M1 cards. Authentication is fast (<0.2 s per user) and secure, with facial recognition even with a mask. It integrates two-way audio, TCP/IP support, Wi-Fi, and standard PoE, with the option to directly power electric locks. Resistant to IP65 protection and operating from -30°C to +60°C, it is ideal for businesses, offices, and facilities requiring intelligent and reliable access control.

Technical Data Sheet

Artikel-Nr.: DS-K1T342MFWX-E1

Marke: Hikvision

EAN: 6942160439778

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Seit ihrem Geburtsjahr ist ihr Ansehen so stark gewachsen, dass sie 2015 die erste globale Sicherheitsrealität sein wird.

Ab 2016 expandiert Hikvision seinen Markt und wird zum Total Solution Provider für den gesamten Sicherheitsmarkt. So tritt sie in die Welt der Intrusion Detection ein und nähert sich dann neuen Technologien und Intelligenz im Dienste der Menschheit, indem sie sich mit IoT, Machine Vision, Robotik und Automotive-Systemen befasst. Vom Marktführer im Sicherheitsbereich wird Hikvision mit Engagement, Leidenschaft und Kompetenz zu einem Hi-Tech-Unternehmen mit der Vision 4.0, immer mit hohen Zielen.

Setik fühlt sich daher geehrt, ein Hikvision-Vertriebspartner zu sein. Wir werden, wie immer, Produkte der neuesten Generation und die entsprechende technische und kommerzielle Unterstützung anbieten.

[short_description] =>

Videosorveglianza Hikvision

Hikvision wurde 2001 mit dem Ziel gegründet, komplette professionelle Videoüberwachungslösungen zu schaffen und zu entwickeln und wurde schnell zu einem führenden Unternehmen in der Sicherheitswelt.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Hikvision [meta_keywords] => Hikvision [meta_description] => Hikvision wurde 2001 gegründet und wurde bald zu einem führenden Unternehmen in der Welt der Videoüberwachung. Entdecken Sie jetzt die Produkte im Katalog! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TOTALER AUSVERKAUF ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

DS-K1T342MFWX-E1 – FRONT ACCESS TERMINAL WITH 4.3" LCD SCREEN, 2MP RESOLUTION

Hikvision

The Hikvision DS-K1T342MFWX-E1 facial recognition terminal offers an advanced access control solution, thanks to deep learning algorithms that ensure fast and accurate recognition. Ideal for buildings, businesses and high-security environments, it supports multiple authentication (face, fingerprint, M1 card and PIN) with a high user management capacity. Thanks to the 4.3" LCD display, Wi-Fi and PoE connection and IP65 protection rating, it ensures maximum reliability and ease of use even in harsh environments .

Main features:

- Capacity: up to 1500 faces, 3000 fingerprints and 3000 cards

- 4.3” LCD touch display with dual 2MP camera

- Facial recognition in <0.2 seconds with ≥99% accuracy

- Supports mask recognition

- Connectivity: TCP/IP, Wi-Fi, PoE

- Two-way audio and web client management

- Dust and water resistant with IP65 certification

- Operating temperature: -30°C to +60°C

Further details

✅ Display :
 4.3" LCD touch screen with 272×480 resolution, equipped with 2MP dual wide-angle lens, ideal for clear images and reliable identification.
✅ Interface :
 Includes PoE, RS-485, Wiegand, USB, lock output, exit button and door contact , for full integration with access control systems.
✅ Two-way audio :
 Communication support via client software, internal and master stations, with integrated microphone and speaker for advanced management.
✅ Network:
 Compatible with TCP/IP and 2.4 GHz Wi-Fi, supports ISAPI and ISUP 5.0 protocols, with easy configuration via web client.
✅  Authentication :
 It offers multiple login methods with capacity of up to 1500 faces, 3000 fingerprints, 3000 M1 cards and personal PIN, with recognition time less than 0.2s and accuracy ≥99%.

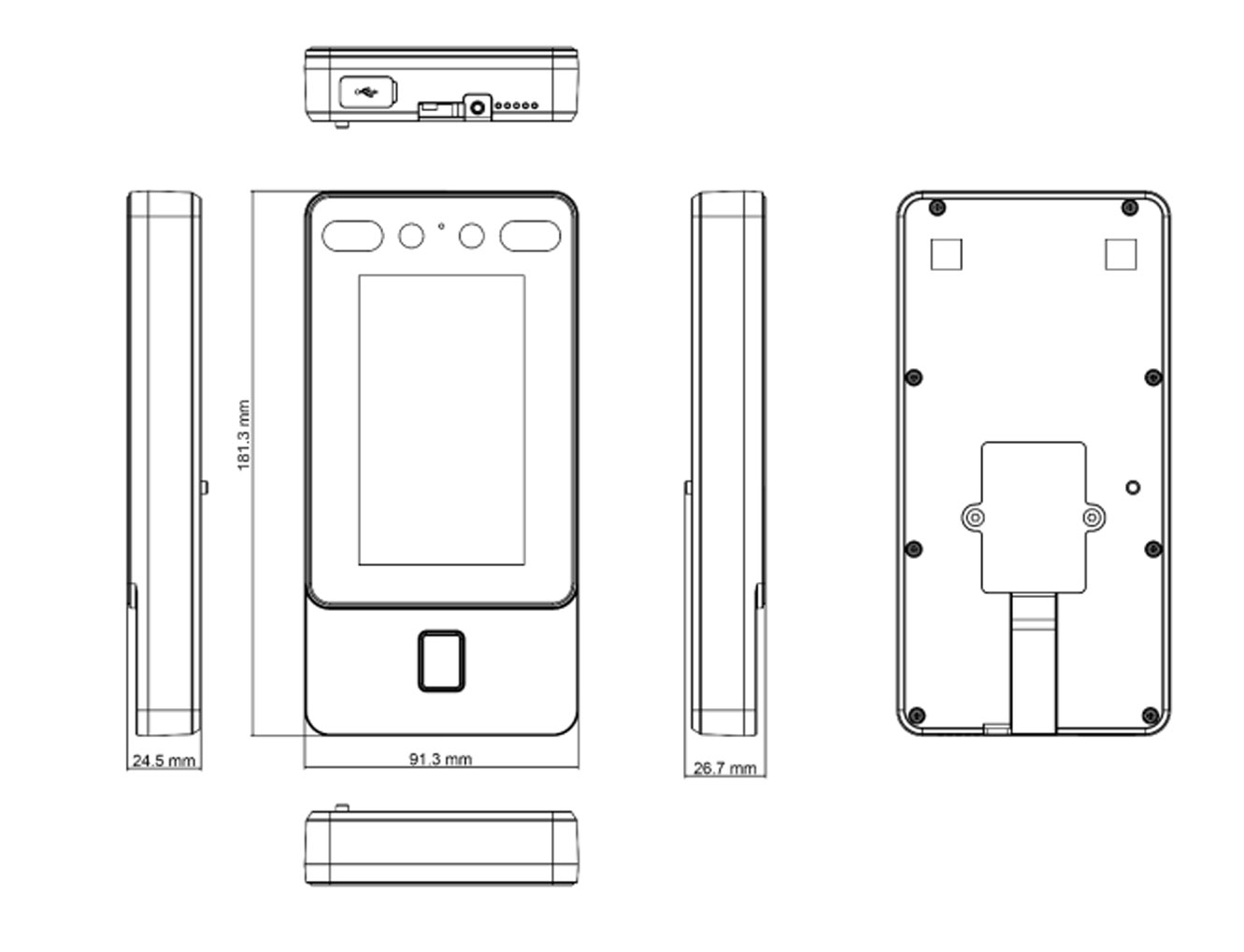

DS-K1T342MFWX-E1 dimensions

Technical data sheet

DS-K1T342MFWX-E1

System
Operation system Linux

Display

Screen size

4.3-inch

Resolution

272 × 480

Type

LCD

Operation method

Capacitive touch screen

Video

Pixel

2 MP

Lens

× 2

Standard video

PAL (Default) and NTSC

Network

Wired network

10M/100M self-adaptive

Wi-Fi

Support

Interface

PoE

IEEE802.3at, PoE standard

Network interface

1

RS-485

1

Wiegand

1

Lock control

1

Exit button

1

Door contact input

1

TAMPER

1

USB

1

Capacity
Card capacity 3,000
Face capacity 1,500
Fingerprint capacity 3,000
Event capacity 150,000

Authentication

Card type

M1 card

Card reading frequency

13.56 MHz
Face recognition duration ＜ 0.2 s
Face recognition accuracy rate ＞99%
Face recognition distance 0.3 to 1.5 m
Fingerprint recognition duration ＜1 s

General

Power supply

Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)
Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)

Working temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working humidity

0 to 90% (No condensation)
Dimensions 91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
Installation Wall Mounting
Protective level IP65
Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean
Weight Gross weight: 0.93 kg (2.05 lbs)
Net weight: 0.36 kg (0.79 lbs)
Function
Face anti-spoofing Support
Hik-Partner Pro Support
Face recognition Support
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
