HYU-712 - The HYUNDAI HYU-712 NEXTGEN indicator module is designed for advanced video intercom systems, offering immediate control thanks to the device status reporting function for calls, door opening, and two-way audio. Equipped with 8 configurable DIP switches , it guarantees flexible and customized system management, while the modular connection with 12V DC input/output facilitates integration with other modules. The presence of backlight compensation improves visibility in all environmental conditions, while the IP65 protection rating ensures resistance to external agents. The compact design and low consumption ≤2W make it ideal for professional installations, both flush-mounted and surface-mounted. Hyundai

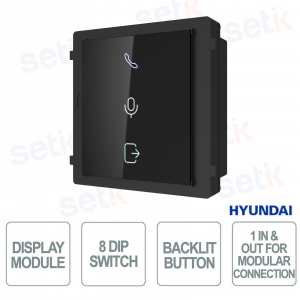

HYU-712 | HYUNDAI NEXTGEN VIDEO INTERCOM DISPLAY MODULE
The HYUNDAI HYU-712 NEXTGEN indicator module is an advanced solution for video intercom systems, designed to offer immediate control thanks to device status indications that include calls, door opening, and two-way audio. Equipped with 8 configurable DIP switches , it allows for flexible and customized system management, while the modular connection with 12V DC input/output ensures easy integration with other modules. The backlight compensation function improves visibility in any conditions, while the IP65 protection rating ensures durability and reliability even in outdoor environments. Low consumption ≤2W and compact design make it ideal for professional installations.
Main specifications:
- Device status reporting (calls, door opening, audio)
- 8 DIP switches for advanced configuration
- 12V DC input/output modular connection
- Backlight compensation for better visibility
- IP65 protection for outdoor use
- Low power consumption ≤2W
Further details
8 configurable DIP switches designed to offer advanced customization of the video intercom system , allowing you to easily adapt the operating settings and integration with other modules according to the system needs.
Technical data sheet
| HYU-712 |
| Characteristics |
| Indicates device status: calls, door opening and two-way audio |
| Backlight compensation |
| IP65 protection grade Easy to extend |
| Specifications |
| Embedded MCU processor |
| 8 DIP switches |
| Modular connection: 1 input / 1 output |
| Power input: 12V DC (from another module) |
| 12V DC power output (up to another module) |
| Power consumption ≤2W |
| Debug interface |
| Operating temperature -40°C ~ +55°C |
| Operating humidity 10% ~ 95% |
| IP65 protection rating |
| Dimensions: 100 (W) x 98.5 (H) x 33.7 mm |
| Flush or surface installation |
