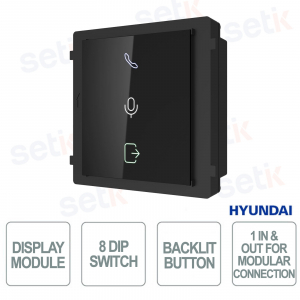

HYU-712 - The HYUNDAI HYU-712 NEXTGEN indicator module is designed for advanced video intercom systems, offering immediate control thanks to the device status reporting function for calls, door opening, and two-way audio. Equipped with 8 configurable DIP switches , it guarantees flexible and customized system management, while the modular connection with 12V DC input/output facilitates integration with other modules. The presence of backlight compensation improves visibility in all environmental conditions, while the IP65 protection rating ensures resistance to external agents. The compact design and low consumption ≤2W make it ideal for professional installations, both flush-mounted and surface-mounted. Hyundai

Technical Data Sheet

Reference: HYU-712

Brand: Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


HYU-712 | HYUNDAI NEXTGEN VIDEO INTERCOM DISPLAY MODULE


Hyundai Security

The HYUNDAI HYU-712 NEXTGEN indicator module is an advanced solution for video intercom systems, designed to offer immediate control thanks to device status indications that include calls, door opening, and two-way audio. Equipped with 8 configurable DIP switches , it allows for flexible and customized system management, while the modular connection with 12V DC input/output ensures easy integration with other modules. The backlight compensation function improves visibility in any conditions, while the IP65 protection rating ensures durability and reliability even in outdoor environments. Low consumption ≤2W and compact design make it ideal for professional installations.

Main specifications:

- Device status reporting (calls, door opening, audio)

- 8 DIP switches for advanced configuration

- 12V DC input/output modular connection

- Backlight compensation for better visibility

- IP65 protection for outdoor use

- Low power consumption ≤2W

Further details

8 DIP switches:
8 configurable DIP switches designed to offer advanced customization of the video intercom system , allowing you to easily adapt the operating settings and integration with other modules according to the system needs.
MCU Processor:
Built-in high-performance MCU processor ensures stable and efficient management of device functions , improving system responsiveness and ensuring reliability in continuous operation.
Modular connection:
Modular connection with 1 input/output designed for simple and scalable integration , allowing direct connection with other modules in the system and facilitating the expansion of the video intercom system.

Technical data sheet

HYU-712
Characteristics
Indicates device status: calls, door opening and two-way audio
Backlight compensation
IP65 protection grade Easy to extend
Specifications
Embedded MCU processor
8 DIP switches
Modular connection: 1 input / 1 output
Power input: 12V DC (from another module)
12V DC power output (up to another module)
Power consumption ≤2W
Debug interface
Operating temperature -40°C ~ +55°C
Operating humidity 10% ~ 95%
IP65 protection rating
Dimensions: 100 (W) x 98.5 (H) x 33.7 mm
Flush or surface installation
