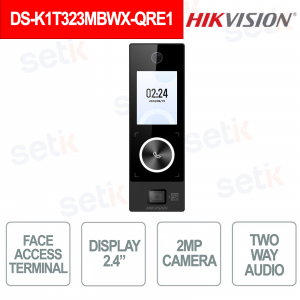

Hikvision 2MP WiFi QR PoE IP65 Face Recognition Access Control Terminal with Two-Way Audio

Hikvision 2MP WiFi QR PoE IP65 Face Recognition Access Control Terminal with Two-Way Audio

 
-35% nuevo

DS-K1T323MBWX-QRE1 - The terminal is an advanced solution for access control, equipped with a 2.4-inch display and a 2 MP camera with a wide-angle lens , designed to ensure rapid and accurate identification. Thanks to the capacity of up to 1000 faces and 3000 cards and a recognition time of less than 0.2 seconds , it ensures high performance in high-traffic environments. It supports multiple authentication via face, badge and QR code , as well as two-way audio for real-time communication. Connectivity is guaranteed by Wi-Fi, LAN and PoE , with management via Web and AP mode. Ideal for outdoor installations thanks to IP65 protection and WDR technology , it offers reliability and advanced security for professional systems. Hikvision

Technical Data Sheet

referencia : DS-K1T323MBWX-QRE1

brand : Hikvision

EAN: 6936422110338

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-K1T323MBWX-QRE1 – VALUE SERIES FACE ACCESS TERMINAL

Hikvision

The Hikvision DS-K1T323MBWX-QRE1 terminal is an advanced access control solution, equipped with a 2.4-inch display and 2 MP camera with wide-angle lens , designed to ensure rapid and accurate identification. It offers capacity for up to 1000 faces and 3000 cards , with rapid facial recognition (<0.2 s) and an accuracy of over 99%, ideal for high-traffic environments. It supports multiple authentication via face, M1 badge and QR code , as well as two-way audio for real-time communication. It integrates Wi-Fi, Bluetooth, LAN and PoE power supply , with web configuration and AP mode. The robust structure with IP65 protection and WDR technology ensures reliability even in difficult conditions.

Main features:

- 2.4" display with 240×320 resolution

- 2 MP camera with wide angle lens

- Capacity 1000 faces and 3000 cards

- Facial recognition <0.2 s="" and="" accuracy="">99%

- Multiple authentication: face, M1 card and QR code

- Wi-Fi, Bluetooth, LAN 10/100 Mbps and PoE

- Integrated two-way audio

- IP65 protection for indoor and outdoor environments

- Support WDR and anti-face spoofing

Further details

✅ Touch Display :
 Equipped with a 2.4-inch TFT screen with 240×320 resolution , it offers clear information display and a simple interface for managing access operations.
✅ Capacity :
 It supports up to 1000 users/faces, 3000 cards and 150,000 events , ensuring efficient data management even in high-traffic contexts with numerous accesses.
✅ Authentication :
It integrates high-precision facial recognition (>99%) , M1 card reading (13.56 MHz) and QR code , offering multiple and secure access methods with extremely fast recognition times (<0.33 s="" span=""> .
✅ Functions :
It includes two-way audio , face anti-spoofing , voice notifications, and support for web and AP mode configuration , ensuring advanced security and easy operational management .
✅ Interfaces :
It features RJ45 network port , Wiegand , lock control , exit button input , door contact and tamper , ensuring complete integration with professional access control systems .
✅ Network :
It offers full connectivity with Wi-Fi, Bluetooth and 10/100 Mbps LAN , as well as IEEE802.3at PoE power supply , ensuring flexible installation and stable communication in IP environments .

Technical data sheet

DS-K1T323MBWX-QRE1
System parameters
Operating system Linux
Display parameters
Screen size 2.4-inch
Resolution 240 × 320
Type TFT
Operation method Non-touchable
Video
Resolution 2MP (video stream:540P)
Lens ×1
Standard video PAL (Default) and NTSC
Network
Bluetooth Support
Wired network 10/100 Mbps self-adaptive
Wi-Fi Support
Interface
PoE IEEE802.3at, PoE standard
Network interface 1
Wiegand 1, supports Wiegand input, single direction
Lock control 1
Exit button 1
Door contact input 1
TAMPER 1
Capacity
User capacity

1000
Card capacity

3000
Face capacity

1000
Event capacity

150000
Authentication
Card type M1 card;M1 card content;CPU card No.
Card reading frequency 13.56 MHz
Face recognition duration ＜ 0.33 s
Face recognition accuracy rate ＞99%
Face recognition distance 0.3 to 1.5 m
General
Button

1 physical call button
Power supply

12 VDC, 1 A, PoE standard
Working temperature

-30 °C to 65 °C (-22 °F to 149 °F)
Working humidity

0% to 90% (no condensation)
Dimensions

157 mm × 52 mm × 26 mm (6.18" × 2.05" × 1.02")
Installation

Wall mounting
Protective level

IP65
Language

English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese
Weight

Net weight: 0.22 kg (0.49 lb)
Rough weight: 0.6 kg (1.32 lb)
Function
QR code recognition

Support scan QR code via QR code module
Face anti-spoofing

Support
Two-way audio Support
Audio prompt Support
