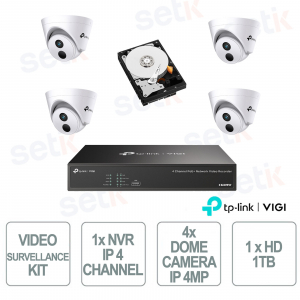

Complete VIGI video surveillance kit 1 x IP NVR ( VIGI NVR1004H-4P ), 4x 4MP Dome cameras ( VIGI C440I(4mm) ) and 1x 1TB hard disk ( HD1000U )


ONLY 10 PIECES!


referencia : KIT VIGI C440I(4mm)

brand : VIGI

Manufacturer Object ( [id] => 52 [name] => VIGI [description] =>

La historia de VIGI se remonta a la creciente demanda de soluciones de seguridad de video de alta calidad. Con el aumento de la conciencia sobre la seguridad, las personas buscaban soluciones confiables para monitorear y proteger sus espacios. TP-Link respondió a esta necesidad mediante la introducción de la marca VIGI.
Los productos VIGI incluyen varios tipos de cámaras de vigilancia, como cámaras bullet, cámaras domo, cámaras PTZ y más. Estas cámaras vienen con características avanzadas como resolución de video de alta definición, visión nocturna, detección de movimiento, notificaciones push y mucho más. Además, muchas cámaras VIGI ofrecen la opción de almacenar videos en tarjetas microSD o utilizar servicios de almacenamiento en la nube.
TP-Link se ha ganado una reputación de confiabilidad y calidad en la industria de redes, y la marca VIGI ha continuado esta tradición en el sector de seguridad de video. Con un compromiso constante con la innovación y la calidad, TP-Link continúa expandiendo la línea de productos VIGI para satisfacer las crecientes necesidades de seguridad del mercado.

[short_description] =>


La marca VIGI fue lanzada por TP-Link como una línea de productos de vigilancia de video avanzados, enfocados en la seguridad doméstica y comercial. Esta línea de productos fue diseñada para ofrecer soluciones de vigilancia de video confiables, de alto rendimiento y fáciles de usar para ayudar a las personas a proteger sus hogares, negocios y propiedades.

[id_address] => [date_add] => 2024-06-11 17:20:54 [date_upd] => 2025-09-12 15:53:36 [link_rewrite] => vigi [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Made VIGI

ONLY 10 PIECES!


The VIGI NVR1004H-4P video surveillance kit with 4 VIGI C440I (4mm) cameras and 1TB hard disk is a complete, reliable and easy-to-install solution for ensuring 24/7 security in homes, offices and shops.

The VIGI NVR1004H-4P network video recorder features 4 PoE ports that provide power and device connectivity via a single Ethernet cable, simplifying installation. It supports H.265+ codec for efficient video compression, remote monitoring via the VIGI app, and intelligent video management features.

The VIGI C440I (4mm) cameras offer 4MP Ultra HD resolution for sharp, detailed images, with a 4mm fixed lens ideal for monitoring medium to large areas. They feature infrared night vision up to 30 meters and smart features such as motion, line crossing, and tampering detection. The IP67- rated casing also makes them perfect for outdoor installations.

The included 1TB hard drive provides ample storage capacity for continuous recording and constant security. This VIGI kit is a professional, ready-to-use choice for those who want complete control and reliability day and night.

Product details

1x VIGI NVR1004H-4P - IP NVR

  • Video Resolution: H.265+/H.265/H.264+/H.264

    4 Channel PoE+ 2 Channel 8MP / 4 Channel 4MP

    80 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth

    Maximum resolution 8MP

    Ports: 2x USB 2.0, 1x RJ-45 bidirectional audio

    Supports 1 HDD up to 10TB

  • Smart Detection - Two-Way Audio - Motion Detection - Abandoned Object Detection - Vehicle and Person Detection - Smart Frame

  • Remote monitoring

4x VIGI C440I(4mm) – IP Dome Cameras

  • Video Resolution: H.265+/H.265/H.264+/H.264

    Sensor: 1/3" Progressive Scan CMOS

    Illumination: 0 Lux with IR/White Light

  • Frame Rate: 2560x1440, 2304x1296, 2048x1280,1920x1080,1280x720

  • Power supply: PoE/12V DC
  • Lens: 4mm fixed lens

1x HD1000U - Hard Disk

  • Internal Hard Disk

    Type: 3.5" SATA Audio/Video

    Capacity: 1TB

Technical data sheet

VIGI NVR1004H-4P
VIDEO AND AUDIO
IP Video Input 4-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1.4
DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 4-Channel
Capability 25fps:
2-ch @ 8MP, 4-ch @ 4MP
30fps:
4-ch @ 4MP, 3-ch @ 5MP
RECORD MANAGEMENT
Record Mode
  • Manual Recording
  • Scheduling Recording
  • Motion Detection Recording
Playback Mode
  • Instant Playback
  • Regular Playback
  • Tag Playback
  • Event Playback
Backup Mode
  • Regular Backup
  • Video Clip Backup
Playback Function
  • Play
  • Breaks
  • Stop
  • Fast Forward
  • Fast Backward
  • Play By Frame
  • Full Screen
  • Video Clip
  • Export Clip
  • Digital Zoom
  • Lock Recording
  • Audio On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF Profile S/T/G, CGI
EXTERNAL INTERFACE
Network Interface 1, RJ-45 10/100Mbps Self-Adaptive Ethernet Interface
USB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1
HARD DISK
SATA 1 SATA Interfaces
Capacity Up to 10 TB Capacity for Each HDD
1 × 2TB HDD Preinstalled
POE
Standard 802.3at/af Compliant
Interface 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget 53 W△ Available for All PoE+ Ports, 30 W Max per Port
ALARM
General Alarm
  • Motion Detection
  • Video Tampering
  • Scene Change Detection
  • Line-Crossing Detection
  • Intrusion Detection
  • Region Entering Detection
  • Region Exiting Detection
  • Loitering Detection
  • Object Abandoned/Removal Detection
  • Vehicle Detection
  • Human Detection
  • Abnormal Sound Detection
  • Smart Frame
Note: The alarm function requires the use of a camera
Anomaly Alarm
  • Video Loss
  • Offline and IP Conflict
  • Disk Exception
  • Login Exception
Note: The alarm function requires the use of a camera
Alarm Linkage
  • Recording
  • White Light Alarm
  • Buzzer
  • Log
  • Audible Alarm
Note: The alarm function requires the use of a camera
VIGI C440I(4mm)
ROOM
Image Sensor 1/3” Progressive Scan CMOS
Min. Illumination Color: 0.1 Lux; 0 Lux with IR
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR DWDR
LENS
Focal Length 4 mm
Openings F2.2
FOV 75.1°/41.5°/88.7° (H/V/D)
Lens Mount M12
IR
IR Range 30m
Wavelength 850nm
COMPRESSION STANDARD
Video Compression Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Main Stream Supported
H.265 Type Main Profile
H.265+ Main Stream Supported
Video Bit Rate 64 Kbps to 512 Kbps
SMART FEATURE-SET
Smart Event Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned
Object Detection, Object Removal Detection, Vehicle Detection
Basic Event Motion Detection, Video Tampering Detection, Exception (illegal login)
Linkage Method Trigger Notification: ONVIF, HTTPS
Region of Interest 1 Region
Max. Resolution 4MP (2560 × 1440)
Main Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480, 352x288, 320x240
Image Enhancement BLC/3D DNR/HLC/SmartIR
Image Settings Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, HLC
adjustable by client software, Rotation(90°/270°)
Day/Night Switch Day/Night/Auto/Schedule
NETWORK
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
General Function Two Streams, Mirror, Privacy Masks, Password Reset via Email, HTTP Listening
API ONVIF
Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Simultaneous Live View 3 Main Streams & 3 Sub-Streams
Client VIGI App, VIGI Security Manager, VIGI NVR, Web
INTERFACE
Communication Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port
Video Output No
Reset Button N/A
GENERAL
Operating Temperature -30–60 °C
Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Power Consumption 12V DC: Max 5W
PoE: class 0
Material Plastic
Product Dimensions (L x W x H) 123 × 123 × 83 mm
Certifications CE/BSMI/VCCI/ONVIF
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
