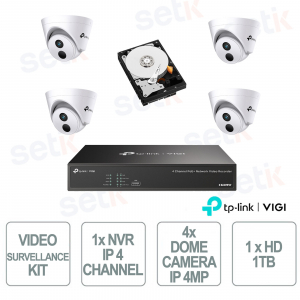

Kit videosorveglianza VIGI completo 1 x NVR IP (VIGI NVR1004H-4P), 4x Telecamere Dome 4MP (VIGI C440I(4mm)) e 1x Hard disk 1TB (HD1000U)
SOLO 10 PEZZI!
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>
SOLO 10 PEZZI!
Il kit di videosorveglianza VIGI NVR1004H-4P con 4 telecamere VIGI C440I (4mm) e hard disk da 1TB è una soluzione completa, affidabile e facile da installare per garantire sicurezza 24/7 in abitazioni, uffici e negozi.
Il videoregistratore di rete VIGI NVR1004H-4P dispone di 4 porte PoE che forniscono alimentazione e connessione ai dispositivi tramite un unico cavo Ethernet, semplificando l’installazione. Supporta codec H.265+ per una compressione video efficiente, monitoraggio remoto tramite app VIGI e funzioni intelligenti di gestione video.
Le telecamere VIGI C440I (4mm) offrono risoluzione Ultra HD 4MP per immagini nitide e dettagliate, con ottica fissa da 4mm ideale per il controllo di aree medie e larghe. Dispongono di visione notturna a infrarossi fino a 30 metri e funzioni smart come rilevamento di movimento, attraversamento linea e manipolazione. La scocca con protezione IP67 le rende perfette anche per installazioni esterne.
L’hard disk da 1TB incluso garantisce ampia capacità di archiviazione per registrazioni continue e sicurezza costante. Questo kit VIGI rappresenta una scelta professionale e pronta all’uso per chi desidera controllo totale e affidabilità giorno e notte.
Dettagli prodotto
✅ 1x VIGI NVR1004H-4P - NVR IP
-
Risoluzione Video: H.265+/H.265/H.264+/H.264
4 Canali PoE+ 2 canali 8MP / 4 canali 4MP
80 Mbps di larghezza di banda in entrata e 60 Mbps di larghezza di banda in uscita
Risoluzione massima 8MP
Porte: 2x USB 2.0, 1x RJ-45 audio bidirezionale
Supporta 1 HDD fino a 10TB
-
Smart Detection - Audio bidirezionale - Motion Detection - rilevamento di oggetti abbandonati - rilevamento di veicoli e persone - smart frame
-
Monitoraggio da remoto
✅ 4x VIGI C440I(4mm) – Telecamere Dome IP
-
Risoluzione Video: H.265+/H.265/H.264+/H.264
Sensore: 1/3" Progressive Scan CMOS
Illuminazione: 0 Lux con IR/Luce Bianca
-
Frequenza dei Fotogrammi: 2560x1440, 2304x1296, 2048x1280,1920x1080,1280x720
- Alimentazione: PoE/12V DC
-
Obiettivo: Lente fissa 4 mm
✅ 1x HD1000U - Hard Dirsk
-
Hard Disk Interno
Tipologia: Audio/Video SATA 3,5"
Capacità: 1TB
Scheda tecnica
| VIGI NVR1004H-4P | |
|---|---|
| VIDEO AND AUDIO | |
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1,4 |
| DECODING | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 4-Channel |
| Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
| RECORD MANAGEMENT | |
| Record Mode |
|
| Playback Mode |
|
| Backup Mode |
|
| Playback Function |
|
| NETWORK | |
| Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S/T/G, CGI |
| EXTERNAL INTERFACE | |
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
| SATA | 1 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD 1 × 2TB HDD Preinstalled |
| POE | |
| Standard | 802.3at/af Compliant |
| Interface | 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| PoE Budget | 53 W△ Available for All PoE+ Ports, 30 W Max per Port |
| ALARM | |
| General Alarm |
|
| Anomaly Alarm |
|
| Alarm Linkage |
|
| VIGI C440I(4mm) | |
| CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS |
| Min. Illumination | Color: 0.1 Lux; 0 Lux with IR |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| LENS | |
| Focal Length | 4 mm |
| Aperture | F2.2 |
| FOV | 75.1°/41.5°/88.7° (H/V/D) |
| Lens Mount | M12 |
| IR | |
| IR Range | 30m |
| Wavelength | 850nm |
| COMPRESSION STANDARD | |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | 64 Kbps to 512 Kbps |
| SMART FEATURE-SET | |
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Area Entrance Detection, Area Exiting Detection, Abandoned Object Detection, Object Removal Detection, Vehicle Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| IMAGE | |
| Max. Resolution | 4MP (2560 × 1440) |
| Main Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720 |
| Sub-Stream | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240 |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Image Settings | Mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, HLC adjustable by client software, Rotation(90°/270°) |
| Day/Night Switch | Day/Night/Auto/Schedule |
| NETWORK | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| General Function | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| API | ONVIF |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, VIGI NVR, Web |
| INTERFACE | |
| Communication Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Video Output | No |
| Reset Button | N/A |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Power Supply | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
| Power Consumption | 12V DC: Max 5W PoE: class 0 |
| Material | Plastic |
| Product Dimensions (L x W x H) | 123 × 123 × 83 mm |
| Certifications | CE/BSMI/VCCI/ONVIF |
