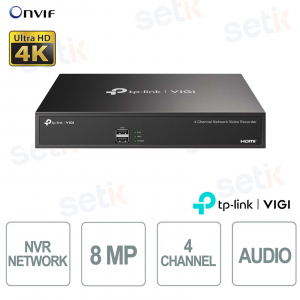

VIGI NVR1004H TP-Link VIGI is a 4-channel Network Video Recorder that supports H.265+ video compression for high-quality recordings with lower bandwidth consumption. Thanks to 4K support and decoding up to 16MP total, it guarantees detailed and smooth images, with synchronized playback of up to 4 channels. Two-way audio allows real-time communication, while Smart Detection functions detect intrusions, crossings, abandoned objects and the movement of people and vehicles. Compatible with the ONVIF standard, it ensures maximum integration with various surveillance devices. Easy to configure and manage via the VIGI app, web UI or dedicated software, it offers storage up to 10 TB to ensure continuous security.
3 Year Warranty
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
VIGI NVR1004H | NVR NETWORK TP-LINK VIGI 4 CHANNELS RESOLUTION 8MP 4K HDMI

The VIGI NVR1004H is a 4-channel Network Video Recorder designed to ensure secure and seamless recordings thanks to H.265+ compression and 4K support. Equipped with two-way audio and Smart Detection features, it offers accurate notifications and advanced surveillance management. Compatible with the ONVIF standard, it ensures broad integration with IP cameras from various brands, while storage capacity of up to 10 TB makes it ideal for businesses and professionals.
Main specifications:
- 4-channel recording with support for up to 8MP
- H.265+ compression for bandwidth and storage savings
- Simultaneous 4K HDMI/VGA video output
- Smart Detection (motion, intrusion, objects, people and vehicles)
- Real-time two-way audio
- Storage up to 10TB with SATA HDD
- ONVIF compatibility for maximum integration
Further details
Technical data sheet
IP Video Input | 4-Channel |
---|---|
Incoming Bandwidth | 80 Mbps |
Outgoing Bandwidth | 60 Mbps |
HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
Video Output Mode | HDMI/VGA Simultaneous Output |
Multi-View Display | 1/4 |
DECODING | |
Audio Compression | G.711A/G.711U/G.726 |
Video Compression | H.265+/H.265/ H.264+/H.264 |
Record Resolution | 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
Synchronous Playback | 4-Channel |
Capability | 25fps: 2-ch @ 8MP, 4-ch @ 4MP 30fps: 4-ch @ 4MP, 3-ch @ 5MP |
RECORD MANAGEMENT | |
Record Mode |
|
Playback Mode |
|
Backup Mode |
|
Playback Function |
|
NETWORK | |
Protocol | UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
Mobile Phone Access | Android, iOS |
Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
Interoperability | ONVIF Profile S, CGI |
EXTERNAL INTERFACE | |
Network Interface | 1, RJ-45 10/100Mbps Self-Adaptive Ethernet Interface |
USB Interface | 2× USB 2.0 |
Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
Alarm In/Out | N/A |
Serial Interface | N/A |
Power | 1× DC Jack |
Reset Button | 1 |
Speaker | N/A |
eSATA | N/A |
HDMI | 1 |
VGA | 1 |
HARD DISK | |
SATA | 1 SATA Interfaces |
Capacity | Up to 10 TB Capacity for Each HDD* |
ALARM | |
General Alarm |
|
Anomaly Alarm |
|
Alarm Linkage |
|
GENERAL | |
Storage Temperature | -40–70 °C |
Storage Humidity | 10%~90% RH Non-Condensing |
Package Contents |
|
Working Temperature | NVR: -10–55 °C Power Adapter: 0–40 °C |
Working Humidity | 10%~90% RH Non-Condensing |
Dimensions (L x W x H) | 246.2 × 148.2 × 45 mm |
External power supply | DC 12V/1.5A |
Power Consumption | 4.25 W (without disk) |
Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
