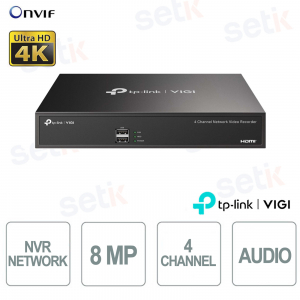

VIGI NVR1004H 4-Channel | 4K Network Video Recorder with AI and Audio

VIGI NVR1004H 4-Channel | 4K Network Video Recorder with AI and Audio
-45% New

VIGI NVR1004H TP-Link VIGI is a 4-channel Network Video Recorder that supports H.265+ video compression for high-quality recordings with lower bandwidth consumption. Thanks to 4K support and decoding up to 16MP total, it guarantees detailed and smooth images, with synchronized playback of up to 4 channels. Two-way audio allows real-time communication, while Smart Detection functions detect intrusions, crossings, abandoned objects and the movement of people and vehicles. Compatible with the ONVIF standard, it ensures maximum integration with various surveillance devices. Easy to configure and manage via the VIGI app, web UI or dedicated software, it offers storage up to 10 TB to ensure continuous security.

Technical Data Sheet


3 Year Warranty


Reference: VIGI NVR1004H

Brand: VIGI

EAN: 8885020620412

Manufacturer Object ( [id] => 52 [name] => VIGI [description] =>

The history of VIGI dates back to the growing demand for high-quality video security solutions. With increased security awareness, people were seeking reliable solutions to monitor and safeguard their spaces. TP-Link responded to this need by introducing the VIGI brand.
VIGI products include various types of surveillance cameras, such as bullet cameras, dome cameras, PTZ cameras, and more. These cameras come with advanced features like high-definition video resolution, night vision, motion detection, push notifications, and much more. Additionally, many VIGI cameras offer the option to store videos on microSD cards or use cloud storage services.
TP-Link has earned a reputation for reliability and quality in the networking industry, and the VIGI brand has continued this tradition in the video security sector. With a constant commitment to innovation and quality, TP-Link continues to expand the VIGI product line to meet the growing security needs of the market.

[short_description] =>


The VIGI brand was launched by TP-Link as a line of advanced video surveillance products, focused on home and commercial security. This product line was designed to offer reliable, high-performance, and user-friendly video surveillance solutions to help people protect their homes, businesses, and properties.

[id_address] => [date_add] => 2024-06-11 17:20:54 [date_upd] => 2025-02-18 16:36:33 [link_rewrite] => vigi [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

VIGI NVR1004H | NVR NETWORK TP-LINK VIGI 4 CHANNELS RESOLUTION 8MP 4K HDMI


Made VIGI

The VIGI NVR1004H is a 4-channel Network Video Recorder designed to ensure secure and seamless recordings thanks to H.265+ compression and 4K support. Equipped with two-way audio and Smart Detection features, it offers accurate notifications and advanced surveillance management. Compatible with the ONVIF standard, it ensures broad integration with IP cameras from various brands, while storage capacity of up to 10 TB makes it ideal for businesses and professionals.

Main specifications:

- 4-channel recording with support for up to 8MP

- H.265+ compression for bandwidth and storage savings

- Simultaneous 4K HDMI/VGA video output

- Smart Detection (motion, intrusion, objects, people and vehicles)

- Real-time two-way audio

- Storage up to 10TB with SATA HDD

- ONVIF compatibility for maximum integration

Further details

Number of Channels:
It supports up to 4 IP channels with simultaneous management, allowing you to monitor multiple areas simultaneously easily and effectively .
Resolution :
It offers video output up to 4K (3840×2160) via HDMI and multiple resolutions via VGA, with decoding up to 16MP total and recording up to 8MP for sharp, detailed images.
Interfaces :
Equipped with HDMI and VGA ports for video output, 2 USB 2.0 ports for mouse or external hard drives, RCA audio input/output for two-way communication, as well as a 10/100 Mbps RJ-45 LAN port for networking .
Hard Disk :
Includes 1 SATA interface with support for up to 10TB capacity, ideal for safely storing large amounts of recordings .

Technical data sheet

IP Video Input 4-Channel
Incoming Bandwidth 80 Mbps
Outgoing Bandwidth 60 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4
DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous Playback 4-Channel
Capability 25fps:
2-ch @ 8MP, 4-ch @ 4MP
30fps:
4-ch @ 4MP, 3-ch @ 5MP
RECORD MANAGEMENT
Record Mode
  • Manual Recording
  • Scheduling Recording
  • Motion Detection Recording
Playback Mode
  • Instant Playback
  • Regular Playback
  • Tag Playback
  • Event Playback
Backup Mode
  • Regular Backup
  • Video Clip Backup
Playback Function
  • Play
  • Breaks
  • Stop
  • Fast Forward
  • Fast Backward
  • Play By Frame
  • Full Screen
  • Video Clip
  • Export Clip
  • Digital Zoom
  • Lock Recording
  • Audio On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF Profile S, CGI
EXTERNAL INTERFACE
Network Interface 1, RJ-45 10/100Mbps Self-Adaptive Ethernet Interface
USB Interface 2× USB 2.0
Audio Interface 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out N/A
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA N/A
HDMI 1
VGA 1
HARD DISK
SATA 1 SATA Interfaces
Capacity Up to 10 TB Capacity for Each HDD*
ALARM
General Alarm
  • Motion Detection
  • Video Tampering
  • Scene Change Detection
  • Line-Crossing Detection
  • Intrusion Detection
  • Region Entering Detection
  • Region Exiting Detection
  • Loitering Detection
  • Object Abandoned/Removal Detection
  • Vehicle Detection
  • Human Detection
  • Abnormal Sound Detection
  • Smart Frame
Note: The alarm function requires the use of a camera
Anomaly Alarm
  • Video Loss
  • Offline and IP Conflict
  • Disk Exception
  • Login Exception
Note: The alarm function requires the use of a camera
Alarm Linkage
  • Recording
  • White Light Alarm
  • Buzzer
  • Log
  • Audible Alarm
Note: The alarm function requires the use of a camera
GENERAL
Storage Temperature -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing
Package Contents
  • VIGI Network Video Recorder
  • Power Adapter
  • HDD Screws
  • Mouse
  • Quick Installation Guide
Working Temperature NVR: -10–55 °C
Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensions (L x W x H) 246.2 × 148.2 × 45 mm
External power supply DC 12V/1.5A
Power Consumption 4.25 W (without disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
