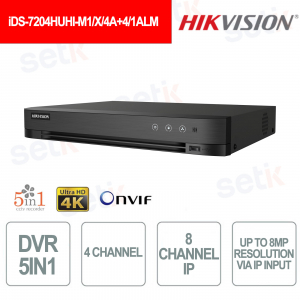

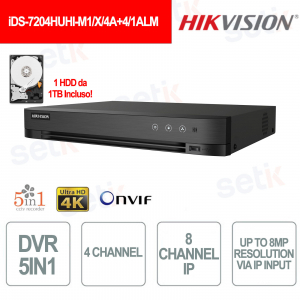

iDS-7204HUHI-M1/X/4A+4/1ALM – 5IN1 4-CHANNEL DVR UP TO 8-CHANNEL IP 8MP - 4IN AND 1OUT ALARM

Hikvision

The Hikvision iDS-7204HUHI-M1/X/4A+4/1ALM DVR is a professional 4-channel digital video recorder with AcuSense technology, designed to ensure advanced security through facial recognition, intelligent perimeter protection, and H.265 Pro+ compression that optimizes space and bandwidth. It supports up to 8 IP cameras with resolutions up to 8MP, offering high-definition images and quick AcuSearch functions. Multi-format compatibility and Full HD HDMI/VGA outputs make it a reliable solution for modern and high-performance video surveillance systems.

Main features:

- 4 video channels + support up to 8 8MP IP cameras

- AI-based facial recognition and vehicle/person analysis

- Perimeter protection with Deep Learning technology

- H.265 Pro+ compression for storage savings

- High definition HDMI/VGA outputs

Further details

✅ Channels :
 4 analog video inputs , supporting up to 8 IP channels , each up to 8MP .
✅ Resolution:
 Recording up to 8MP @8fps on the main channel, support 5MP@12fps, 4MP@15fps and HDMI/VGA outputs up to 2K.
✅  Perimeter Protection :
 Intelligent analysis of up to 4 channels with human and vehicle detection using Deep Learning algorithms.
✅ Facial Detection:
 Library with up to 16 faces, image search and alarms on 2 analog channels for immediate identification.
✅ Audio Channels :
1 RCA audio input + 4 coaxial cable inputs, 1 RCA audio output, support two-way audio.
✅ Alarm channels:
 Advanced management via RS-485 interface and alert functions, even without dedicated physical alarm inputs/outputs (N/A) .
✅ Network :
Bandwidth up to 96 Mbps, remote connections for up to 32 users, and Wi-Fi compatibility via dongle. It supports TCP/IP, PPPoE, DDNS, Hik-Connect, and ONVIF protocols for maximum network versatility.
iDS-7204HUHI-M1pXT4A+41ALM dimensions

Technical data sheet

iDS-7204HUHI-M1/PXT/4A+4/1ALM
Facial Recognition
Face Picture Library Up to 16 face picture libraries
Face Picture Comparison Face picture comparison, face picture search;
2-ch face picture comparison alarm (HD analog camera)
Perimeter Protection
Human/Vehicle Analysis Up to 4-ch
Video and Audio
IP Video Input 2-ch (up to 6-ch)
Up to 8 MP resolution
IP enhanced mode on:
4-ch (up to 8-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input

4-ch;
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDMI Output

1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
CVBS Input

PAL/NTSC
CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480
Synchronous playback

4-ch
HDTVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 × 1665)@20 fps, 5MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input

5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25fps
VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
HDCVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25fps, 720p@30fps, 720p@25fps
Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution

8MP/5MP/3K/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame Rate Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate

32 Kbps to 10 Mbps
Dual-stream

Support main stream or sub stream
Stream Type

Video, Video & Audio
Audio Compression

G.711u
Audio Bitrate

64 Kbps
Network
Total Bandwidth 96 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection

32
Network Interface

1, RJ45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 12 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 4/1
General
Power supply 12 VDC, 1.5 A
Consumption ≤ 10 W (without HDD)
Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity

10% to 90%
Dimensions (W × D × H)

319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch)
Weight

≤ 1.16 kg (2.6 lb)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
