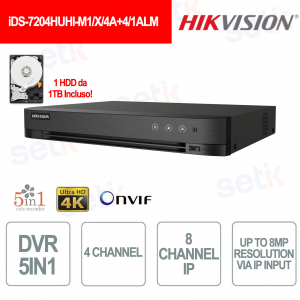

iDS-7204HUHI-M1/X/4A+4/1ALM 4-Channel AcuSense DVR with AI, Facial Recognition, and 8MP Recording - Hikvision

iDS-7204HUHI-M1/X/4A+4/1ALM 4-Channel AcuSense DVR with AI, Facial Recognition, and 8MP Recording - Hikvision
NEW -35% New

iDS-7204HUHI-M1/X/4A+4/1ALM - The DVR is a 4-channel digital video recorder with AcuSense technology, ideal for advanced video surveillance. It supports facial recognition, AI-based perimeter protection and compatibility with multiple signals (HDTVI, AHD, CVI, CVBS, IP) . It guarantees recordings up to 8MP with H.265 Pro+ compression to save space and bandwidth. It offers AcuSearch intelligent search functions, motion detection on all channels and connection of up to 8 IP cameras. The HDMI/VGA output ensures smooth high-definition images. A compact, secure and high-performance device for professional security systems. Hikvision

Technical Data Sheet

Reference: iDS-7204HUHI-M1/X/4A+4/1ALM

Brand: Hikvision

EAN: 6942160473857

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Since the year of its birth, its prestige has grown so much that in 2015 it will become the first global reality in security.

From 2016 Hikvision expands its market becoming Total Solution Provider for the entire security market. Thus it enters the world of intrusion detection and then approaches new technologies and intelligence at the service of mankind by dealing with IoT, Machine Vision, Robotics and Automotive systems. From security leader, Hikvision becomes with commitment, passion and competence a Hi-Tech company with a vision 4.0, always aiming high.

Setik is therefore honored to be a Hikvision distributor. We will, as always, offer the latest generation products and the appropriate technical and commercial support.

[short_description] =>

Videosorveglianza Hikvision

Hikvision was founded in 2001 with the aim of creating and developing complete professional video surveillance solutions, quickly becoming a leader in the security world.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Security Hikvision [meta_keywords] => Hikvision, Security Hikvision [meta_description] => Hikvision was founded in 2001 and soon became a leader in the world of video surveillance. Discover now the products in the catalogue! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

iDS-7204HUHI-M1/X/4A+4/1ALM – 5IN1 4-CHANNEL DVR UP TO 8-CHANNEL IP 8MP - 4IN AND 1OUT ALARM

Hikvision

The Hikvision iDS-7204HUHI-M1/X/4A+4/1ALM DVR is a professional 4-channel digital video recorder with AcuSense technology, designed to ensure advanced security through facial recognition, intelligent perimeter protection, and H.265 Pro+ compression that optimizes space and bandwidth. It supports up to 8 IP cameras with resolutions up to 8MP, offering high-definition images and quick AcuSearch functions. Multi-format compatibility and Full HD HDMI/VGA outputs make it a reliable solution for modern and high-performance video surveillance systems.

Main features:

- 4 video channels + support up to 8 8MP IP cameras

- AI-based facial recognition and vehicle/person analysis

- Perimeter protection with Deep Learning technology

- H.265 Pro+ compression for storage savings

- High definition HDMI/VGA outputs


Further details

Channels :
4 analog video inputs , supporting up to 8 IP channels , each up to 8MP .
Resolution:
Recording up to 8MP @8fps on the main channel, support 5MP@12fps, 4MP@15fps and HDMI/VGA outputs up to 2K.
 Perimeter Protection :
Intelligent analysis of up to 4 channels with human and vehicle detection using Deep Learning algorithms.
Facial Detection:
Library with up to 16 faces, image search and alarms on 2 analog channels for immediate identification.
Audio Channels :
1 RCA audio input + 4 coaxial cable inputs, 1 RCA audio output, support two-way audio.
Alarm channels:
Advanced management via RS-485 interface and alert functions, even without dedicated physical alarm inputs/outputs (N/A) .
Network :
Bandwidth up to 96 Mbps, remote connections for up to 32 users, and Wi-Fi compatibility via dongle. It supports TCP/IP, PPPoE, DDNS, Hik-Connect, and ONVIF protocols for maximum network versatility.
iDS-7204HUHI-M1pXT4A+41ALM dimensions

Technical data sheet

iDS-7204HUHI-M1/PXT/4A+4/1ALM
Facial Recognition
Face Picture Library Up to 16 face picture libraries
Face Picture Comparison Face picture comparison, face picture search;
2-ch face picture comparison alarm (HD analog camera)
Perimeter Protection
Human/Vehicle Analysis Up to 4-ch
Video and Audio
IP Video Input 2-ch (up to 6-ch)
Up to 8 MP resolution
IP enhanced mode on:
4-ch (up to 8-ch), each up to 4 Mbps
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input

4-ch;
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output

1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output

CVBS Input

PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous playback

4-ch

HDTVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 × 1665)@20 fps, 5MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input

5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25fps

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

HDCVI Input

8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25fps, 720p@30fps, 720p@25fps

Audio Output 1-ch, RCA (Linear, 1 KΩ)
Audio Input 4-ch, RCA (2.0 Vp-p, 1 KΩ)
4-ch via coaxial cable
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Recording
Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding Resolution

8MP/5MP/3K/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF

Frame Rate Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
*: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.
Substream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Video Bitrate

32 Kbps to 10 Mbps

Dual-stream

Support main stream or sub stream

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Network
Total Bandwidth 96 Mbps
Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Remote Connection

32

Network Interface

1, RJ45 10/100Mbps self-adaptive Ethernet interface

Auxiliary Interface
SATA 1 SATA interface
Capacity Up to 12 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out 4/1
General
Power supply 12 VDC, 1.5 A
Consumption ≤ 10 W (without HDD)
Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity

10% to 90%

Dimensions (W × D × H)

319 × 235 × 48 mm (12.6 × 9.3 × 1.9 inch)

Weight

≤ 1.16 kg (2.6 lb)

All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
