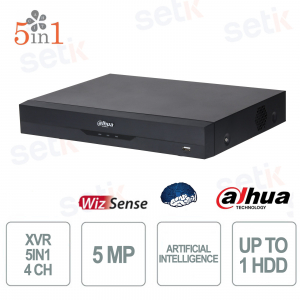

Dahua XVR5104H-I3-4P 4 Channel 5MP DVR with AI WizSense and SMD Plus

Dahua XVR5104H-I3-4P 4 Channel 5MP DVR with AI WizSense and SMD Plus

 
HDD space calculation
BEST PRICE -56% nuevo

The XVR5104H-I3-4P is a 4-channel penta-brid DVR designed to offer advanced security thanks to WizSense AI technology. It supports intelligent functions such as Face Recognition , perimeter protection and SMD Plus to reduce false alarms, accurately distinguishing between people and vehicles. Compatible with cameras up to 5MP and up to 6-channel IP inputs, it guarantees smooth and compressed recordings with Smart H.265+, optimizing space and bandwidth. Thanks to PoC support, it reduces installation time and costs, while QuickPick 2.0 speeds up target search. With a compact design and 1 HDD slot up to 16 TB, it is an ideal solution for professional video surveillance. Dahua

Technical Data Sheet

referencia : XVR5104H-I3-4P

brand : Dahua

EAN: 6937552405295

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

XVR5104H-I3-4P | XVR 4 CHANNELS ONVIF® POC DAHUA - 5MP - H.265+ - ARTIFICIAL INTELLIGENCE


Dahua

The Dahua XVR5104H-I3-4P digital video recorder is a 4-channel penta-brid DVR with support for up to 5MP, designed to ensure advanced security thanks to WizSense artificial intelligence. It offers features such as Face Recognition , perimeter protection and SMD Plus to accurately distinguish people and vehicles, reducing false alarms. Compatible with various video technologies (HDCVI, AHD, TVI, CVBS and IP), it supports up to 6 IP channels and Smart H.265+ compression, optimizing bandwidth and storage. With PoC technology, it reduces installation costs and simplifies video surveillance system management.

Main specifications:

- XVR penta-brid 4 channels up to 5MP

- AI WizSense with Face Recognition and Perimeter Protection

- SMD Plus for intelligent detection of people and vehicles

- Support up to 6 IP channels (32 Mbps)

- Smart H.265+ compression for space and bandwidth savings

- PoC technology for simplified installation

Further details

✅ Number of Channels :
4-channel analog penta-brid XVR with support for up to 6 IP channels , ideal for flexible and scalable video surveillance systems.
✅ Resolution:
Supports cameras up to 5MP for sharp, detailed images, with Smart H.265+ compression that reduces bandwidth and storage without compromising video quality.
✅ Maximum resolution:
Supports cameras up to 5MP for sharp, detailed images, with Smart H.265+ compression that reduces bandwidth and storage without compromising video quality.

✅ Face Recognition:
It integrates facial recognition function with a database of up to 10,000 images , allowing rapid and secure identification for professional applications.
✅ Perimeter Protection:
Based on AI algorithms, it detects intrusions and line crossings, distinguishing between people and vehicles, reducing false alarms and increasing surveillance reliability.
✅ SMD Plus:
Intelligent detection technology categorizes movements between humans and vehicles, filtering out irrelevant events caused by rain, wind, or animals.
✅ Perimeter Protection:
Up to 8 channels with AI by Recorder and all channels with AI by Camera , for precise and reliable perimeter protection.
✅ SMD Plus:
Intelligent detection technology categorizes movements between humans and vehicles, filtering out irrelevant events caused by rain, wind, or animals.
✅ QuickPick 2.0 :
Advanced quick search functionality identifies clothing, hats, and vehicles, speeding up event extraction and improving operational efficiency.
✅ PoC (Power over Coax):
It powers cameras and transmits video over a single coaxial cable, simplifying installation and reducing time and costs.
✅ WizSense Technology:
Powered by AI and deep learning, it offers intuitive and inclusive intelligent functions, focused on protecting people and vehicles with maximum accuracy.
XVR5104H-I3-4P dimensions

Technical data sheet

XVR5104H-I3-4P

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

QuickPick 2.0

QuickPick 2.0 AI by Recorder (Number of Channels)

1 channel

Perimeter Protection

Perimeter Performance AI by Recorder (Number of Channels)

Advanced Mode: 2 channels, 10 IVS rules for each channel
General Mode: 4 channels, 10 IVS rules for each channel

Face Detection

Face Attributes

6 attributes

Face Detection Performance of AI by Recorder (Number of Channels)

1 channels (up to 8 face images/s each channel)

Face Recognition

Face Database Capacity

Up to 10 face databases with 10,000 images.

Face Recognition Performance of AI by Recorder (Number of Channels)

1 channel
SMD

SMD Plus by Recorder

 4 channels: Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change

SMD Plus

SMD by Camera

6 channels

AI Video Quality Analytics

AI Video Quality Analytics by Recorder

4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

Scene Changing

Scene Changing by Recorder

1 channel

Irregular Black Block Masking

Irregular Black Block Masking by Recorder

1 channel

Audio and Video

Analog Camera Input

4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

1. CVI: 5MP@25fps; 5MP@20fps; 5MP@10/12.5fps; 4MP@25/30fps; 1080p@25/30fps; 720p@50/60fps; 720p@25/30fps.
2. TVI: 5MP(2560 x 1944)@20fps; 5MP(2960 x 1665)@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.
3. AHD: 5MP@20fps; 4MP@25/30fps; 1080p@25/30fps; 720p@25/30fps.

IP Camera Input

Up to 6 channels of IPC access
2 IP channels by default +4 channels (analog channels are converted to IP channels) incoming bandwidth: 32 Mbps, recording bandwidth: 32 Mbps and outgoing bandwidth: 32 Mbps
*After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection and QuickPick 2.0 cannot be used.

Encoding Capacity

Encode Enhancement disabled:
Main stream:
Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps);
Channels 1-2 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps); 1080N/720p/960H/D1/CIF@(1fps–25/30fps);
Sub stream: D1/CIF@(1 fps–15 fps);
Encode Enhancement enabled:
Main stream:
4-ch 5M-N@(1 fps-25 fps);(4 channels can be transformed to 5MP@6 fps)
4-ch 4M-N/1080p@(1fps–25fps); 1080N/720p/960H/D1/CIF@(1fps–25/30fps)
Sub stream: D1/CIF@(1 fps–15 fps);
*When Encode Enhancement is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, Perimeter Protection and QuickPick 2.0 cannot be used.

Dual-stream

Yes

Video Bit Rate

325.0 mm × 257.1 mm × 55.0 mm (12.80" × 10.12" × 2.17") (W × D × H)

Packaging Dimensions

372.0 mm × 117.0 mm × 308.0 mm (14.65" × 4.61" × 12.13") (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH), non-condensing

Installation

Desktop

Certifications

CE: CE-LVD: EN 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
