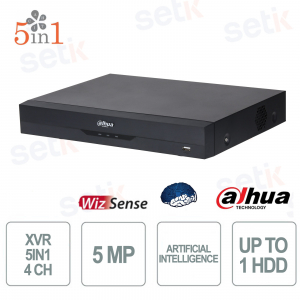

XVR5104H-I3-4P | XVR 4 CANALI ONVIF® POC DAHUA - 5MP - H.265+ - INTELLIGENZA ARTIFICIALE

Il videoregistratore digitale Dahua XVR5104H-I3-4P è un DVR penta-brid a 4 canali con supporto fino a 5MP, progettato per garantire sicurezza avanzata grazie all’intelligenza artificiale WizSense. Offre funzioni come Face Recognition, protezione perimetrale e SMD Plus per distinguere con precisione persone e veicoli, riducendo i falsi allarmi. Compatibile con diverse tecnologie video (HDCVI, AHD, TVI, CVBS e IP), supporta fino a 6 canali IP e compressione Smart H.265+, ottimizzando banda e storage. Con tecnologia PoC, riduce costi di installazione e semplifica la gestione del sistema di videosorveglianza.
Specifiche principali:
- XVR penta-brid 4 canali fino a 5MP
- AI WizSense con Face Recognition e Perimeter Protection
- SMD Plus per rilevamento intelligente di persone e veicoli
- Supporto fino a 6 canali IP (32 Mbps)
- Compressione Smart H.265+ per risparmio di spazio e banda
- Tecnologia PoC per installazione semplificata
Ulteriori dettagli
✅ Face Recognition:

Scheda tecnica
XVR5104H-I3-4P | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
System |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor |
Industrial-grade processor |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System |
Embedded Linux |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Interface |
Web, Local GUI |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QuickPick 2.0 |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
QuickPick 2.0 AI by Recorder (Number of Channels) |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Protection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Perimeter Performance AI by Recorder (Number of Channels) |
Advanced Mode: 2 channels, 10 IVS rules for each channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Attributes |
6 attributes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection Performance of AI by Recorder (Number of Channels) |
1 channels (up to 8 face images/s each channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Database Capacity |
Up to 10 face databases with 10,000 images. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Recognition Performance of AI by Recorder (Number of Channels) |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus by Recorder |
4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD Plus |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SMD by Camera |
6 channels |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Video Quality Analytics |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Video Quality Analytics by Recorder |
4 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Changing |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scene Changing by Recorder |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Irregular Black Block Masking |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Irregular Black Block Masking by Recorder |
1 channel |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Analog Camera Input |
4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Camera Input |
1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input |
Up to 6 channels of IPC access |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Encoding Capacity |
Encode Enhancement disabled: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dual-stream |
Yes |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Bit Rate |
32 kbps–6144 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Sampling |
8 kHz, 16 bit |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Bit Rate |
64 kbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Output | 1 HDMI, 1 VGA HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Multi-screen Displa | When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/6 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Third-party Camera Access | Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression Standard |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Compression |
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Compression |
G.711a; G.711u; PCM |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Phone Access |
iOS; Android |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability |
ONVIF 24.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser |
Chrome; IE; Safari; Edge; Firefox |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode |
General, motion detection; intelligent; alarm; POS |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Recording Playback |
1/4 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Method |
USB device and network |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Mode |
Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General Alarm |
Motion detection; local alarm; alarm box; camera external alarm; network alarm; scene changing; PIR alarm |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Anomaly Alarm |
Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligent Alarm |
Face detection; face recognition; perimeter protection; SMD Plus |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Linkage |
Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Port |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Input |
1-channel RCA (external) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio Output |
1-channel RCA |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk |
Yes (share the same audio input with the first channel) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Output |
8 channels (1-channel 12 V 1 A output) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Disk Interface |
1 SATA port, up to 16 TB. This limit varies depending on the environment temperature. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS-485 |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB |
2 (1 front USB 2.0 port, 1 rear USB 2.0 port) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
HDMI |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
VGA |
1 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port |
1(10/100 Mbps Ethernet port, RJ-45) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
General |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply |
53 VDC, 1.13 A |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption |
<7 W (without HDD) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight |
1.17 kg (2.58 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight |
1.98 kg (4.37 lb) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions |
325.0 mm × 257.1 mm × 55.0 mm (12.80" × 10.12" × 2.17") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Packaging Dimensions |
372.0 mm × 117.0 mm × 308.0 mm (14.65" × 4.61" × 12.13") (W × D × H) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature |
–10 °C to +55 °C (14 °F to +131 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature |
–20 °C to +60 °C (–4 °F to +140 °F) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity |
10%–93% (RH), non-condensing |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation |
Desktop |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications |
CE: CE-LVD: EN 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 FCC: Part 15 Subpart B |
