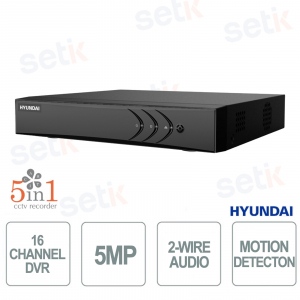

16-Channel 5-in-1 H.265+ DVR with 2 x 5MP IP Cameras, HDMI VGA, Two-Way Audio, and Deep Learning 2.0 - Hyundai

16-Channel 5-in-1 H.265+ DVR with 2 x 5MP IP Cameras, HDMI VGA, Two-Way Audio, and Deep Learning 2.0 - Hyundai

 
HDD space calculation
nuevo

HYU-1079 - The 16-channel 5-in-1 DVR is an advanced solution for professional video surveillance, designed to guarantee high performance thanks to the support for 5 technologies (IP, HDCVI, HDTVI, AHD and CVBS) which ensures maximum compatibility with different systems. Equipped with H.265+ video compression , it optimizes storage space while maintaining high image quality up to 1080P Lite. Management is enhanced by recording on 16 BNC channels + 2 IP channels up to 5MP , ideal for complex systems. It integrates simultaneous HDMI and VGA outputs and two-way audio , offering complete control and monitoring. Thanks to motion detection with deep learning 2.0 , it improves accuracy by reducing false alarms. It also supports 1 HDD up to 10TB and remote access for up to 128 users , ensuring flexibility and scalability. Hyundai

Technical Data Sheet

referencia : HYU-1079

brand : Hyundai Security

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Fundada en Corea, Hyundai Corporation es un fabricante líder de productos digitales y se destaca en el mercado mundial por su amplia gama de productos industriales, eléctricos y electrónicos. Hyundai Corporation ha entrado en el mundo de la videovigilancia desarrollando y diseñando sistemas de seguridad como cámaras y grabadoras de alta tecnología y diseño. El principal objetivo que persigue la empresa coreana es garantizar la protección y la seguridad de las personas en los hogares, las oficinas y los transportes.

Todos los sistemas de videovigilancia de Hyundai son apreciados y recomendados por los profesionales del sector, sobre todo porque la mayor parte de la gama se basa en la tecnología Hikvision, por lo que son totalmente compatibles.

Los distribuidores oficiales de Hyundai Seguridad son pocos porque hay pocas realidades, como Setik, autorizadas a distribuirlo. En la base de esta política está la voluntad de proteger y salvaguardar la marca, evitando así las elecciones agresivas de los canales.

CATALOGO HYUNDAI: DOWNLOAD

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Productos de seguridad Hyundai para la protección y la seguridad de las personas que se instalen en el hogar, las oficinas y el transporte.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Security,Videosorveglianza Hyundai,Sicurezza Hyundai,Hyundai NEXTGEN,Telecamere Hyundai,Dvr Hyundai [meta_description] => Hyundai Security diseña y desarrolla sistemas de videovigilancia ofreciendo soluciones innovadoras y avanzadas tanto en tecnología como en diseño. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HYU-1079 | 16 CHANNEL 5in1 DVR


Hyundai Security

The Hyundai HYU-1079 5-in-1 16-channel DVR is a complete solution for advanced video surveillance systems, designed to ensure maximum compatibility thanks to multi-technology support for IP, HDCVI, HDTVI, AHD and CVBS . The presence of H.265+ compression allows you to optimize storage space while maintaining high video quality up to 1080P Lite. It supports 16 BNC channels + 2 IP channels up to 5MP , offering flexibility for complex systems. It integrates simultaneous HDMI and VGA outputs and two-way audio , ensuring complete monitoring and management. The system is enhanced by motion detection with deep learning 2.0 , which reduces false alarms by improving intelligent analysis. Furthermore, it supports HDDs up to 10TB and remote access for up to 128 users , ensuring scalability and remote control.

Main specifications:

- 5-in-1 DVR compatible with IP, HDCVI, HDTVI, AHD and CVBS

- H.265+ video compression for space and quality optimization

- 16 BNC channels + 2 IP channels up to 5MP (16+2)

- Simultaneous HDMI and VGA outputs with two-way audio

- Intelligent deep learning 2.0 motion detection

- Support HDD up to 10TB and remote access up to 128 users

Further details

✅ Number of channels:
 Number of channels 16 BNC + 2 IP which allows the management of complex video surveillance systems, allowing the simultaneous connection of multiple analog and IP cameras up to 5MP for complete coverage.
✅ Resolution:
Resolution up to 1080P Lite with different recording modes that ensure a balance between video quality and space optimization, adapting to different operational needs.
✅ 5in1 Technology :
5in1 technology compatible with IP, HDCVI, HDTVI, AHD and CVBS , ideal for flexible integrations and upgrades of existing systems without replacing the infrastructure.
✅ Audio :
Audio channels with RCA input and output and two-way audio , designed for effective communication and sound monitoring via coaxial on multiple channels.
✅ Motion detection:
Motion detection with deep learning 2.0 capable of distinguishing people and vehicles, drastically reducing false alarms and improving the efficiency of intelligent security.

Technical data sheet

HYU-1079
Specifications
5-in-1 DVR with 16 analog HD channels + 2 IP channels
5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS
Connectable to H.265+, H.265, H.264+, H.264+, H.264 IP cameras
16 BNC inputs (supports coaxitron)
2 IP inputs up to 5MP (16+2)
Simultaneous HDMI (1080P) and VGA (1080P) outputs
CVBS video output
Audio channels: 1 RCA input / 1 RCA output
Two-way audio: via RCA audio channel 1
Supports coaxial audio (16 inputs)
Recording Resolution: 1080P Lite, 720P, 720P Lite, WD1, 4CIF, VGA, CIF
Main stream:
  • 1080P Stream: 1080P Lite, 720P Lite, WD1, 4CIF, VGA (15 fps), CIF (25/30 fps)
  • 720P Stream: 720P, WD1, 4CIF, VGA (15 fps), CIF (25/30 fps)
  • SD Stream: WD1, 4CIF, VGA, CIF (25/30 fps)
Secondary flow:
  • 1080P/720P stream: CIF, QVGA (15 fps)
  • SD stream: CIF, QVGA (25/30 fps)
16-channel synchronized playback
Internal capacity for 1 SATA HDD up to 10 TB (sold separately)
Smart search
Deep learning 2.0-based motion detection, capable of classifying people and vehicles and minimizing false alarms caused by lights or objects such as leaves
Self-adaptive RJ45 Ethernet (10/100/1000M) network interface
Network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Onvif support
Remote access for up to 128 users
P2P in the cloud, DDNS DEMES, Push and channel zero
Connections: 2 USB 2.0
Power supply: 12V DC, 1.5A
Power consumption: ≤18W
Operating temperature: -10°C ~ +55°C
Relative humidity: 10~90%.
Dimensions: 260 (W) x 45 (H) x 222 mm (desk)
Weight: ≤2.2kg
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
