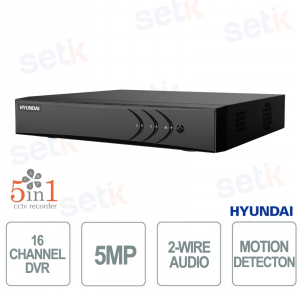

HYU-1079 - The 16-channel 5-in-1 DVR is an advanced solution for professional video surveillance, designed to guarantee high performance thanks to the support for 5 technologies (IP, HDCVI, HDTVI, AHD and CVBS) which ensures maximum compatibility with different systems. Equipped with H.265+ video compression , it optimizes storage space while maintaining high image quality up to 1080P Lite. Management is enhanced by recording on 16 BNC channels + 2 IP channels up to 5MP , ideal for complex systems. It integrates simultaneous HDMI and VGA outputs and two-way audio , offering complete control and monitoring. Thanks to motion detection with deep learning 2.0 , it improves accuracy by reducing false alarms. It also supports 1 HDD up to 10TB and remote access for up to 128 users , ensuring flexibility and scalability. Hyundai
HYU-1079 | 16 CHANNEL 5in1 DVR
The Hyundai HYU-1079 5-in-1 16-channel DVR is a complete solution for advanced video surveillance systems, designed to ensure maximum compatibility thanks to multi-technology support for IP, HDCVI, HDTVI, AHD and CVBS . The presence of H.265+ compression allows you to optimize storage space while maintaining high video quality up to 1080P Lite. It supports 16 BNC channels + 2 IP channels up to 5MP , offering flexibility for complex systems. It integrates simultaneous HDMI and VGA outputs and two-way audio , ensuring complete monitoring and management. The system is enhanced by motion detection with deep learning 2.0 , which reduces false alarms by improving intelligent analysis. Furthermore, it supports HDDs up to 10TB and remote access for up to 128 users , ensuring scalability and remote control.
Main specifications:
- 5-in-1 DVR compatible with IP, HDCVI, HDTVI, AHD and CVBS
- H.265+ video compression for space and quality optimization
- 16 BNC channels + 2 IP channels up to 5MP (16+2)
- Simultaneous HDMI and VGA outputs with two-way audio
- Intelligent deep learning 2.0 motion detection
- Support HDD up to 10TB and remote access up to 128 users
Further details
Number of channels 16 BNC + 2 IP which allows the management of complex video surveillance systems, allowing the simultaneous connection of multiple analog and IP cameras up to 5MP for complete coverage.
5in1 technology compatible with IP, HDCVI, HDTVI, AHD and CVBS , ideal for flexible integrations and upgrades of existing systems without replacing the infrastructure.
Technical data sheet
| HYU-1079 |
| Specifications |
| 5-in-1 DVR with 16 analog HD channels + 2 IP channels |
| 5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS |
| Connectable to H.265+, H.265, H.264+, H.264+, H.264 IP cameras |
| 16 BNC inputs (supports coaxitron) |
| 2 IP inputs up to 5MP (16+2) |
| Simultaneous HDMI (1080P) and VGA (1080P) outputs |
| CVBS video output |
| Audio channels: 1 RCA input / 1 RCA output |
| Two-way audio: via RCA audio channel 1 |
| Supports coaxial audio (16 inputs) |
| Recording Resolution: 1080P Lite, 720P, 720P Lite, WD1, 4CIF, VGA, CIF |
Main stream:
|
Secondary flow:
|
| 16-channel synchronized playback |
| Internal capacity for 1 SATA HDD up to 10 TB (sold separately) |
| Smart search |
| Deep learning 2.0-based motion detection, capable of classifying people and vehicles and minimizing false alarms caused by lights or objects such as leaves |
| Self-adaptive RJ45 Ethernet (10/100/1000M) network interface |
| Network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS |
| Onvif support |
| Remote access for up to 128 users |
| P2P in the cloud, DDNS DEMES, Push and channel zero |
| Connections: 2 USB 2.0 |
| Power supply: 12V DC, 1.5A |
| Power consumption: ≤18W |
| Operating temperature: -10°C ~ +55°C |
| Relative humidity: 10~90%. |
| Dimensions: 260 (W) x 45 (H) x 222 mm (desk) |
| Weight: ≤2.2kg |
