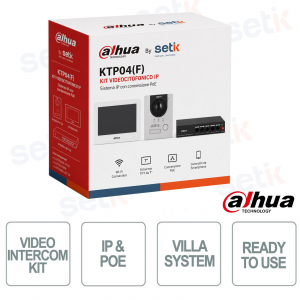

KTP04(F) - is a flush-mounted IP video intercom kit ideal for villas and homes, consisting of an external unit with 2 MP HD camera , 7" capacitive touch internal monitor and dedicated PoE switch. Thanks to remote management via app , two-way audio communication, H.265/H.264 support and ONVIF compatibility, it offers practical and secure access control. The external unit with 168.6° wide-angle lens , IP65 and IK07 protection, PoE power supply and flush-mounted installation guarantees high performance, reliability and an elegant design for any residential context. Dahua
KTP04(F) | DAHUA VIDEO INTERCOM KIT - IP

The Dahua KTP04(F) is a flush-mounted IP video intercom kit designed for villas and homes, consisting of an external unit with a 2 MP HD camera , a 7" capacitive touch internal monitor and a dedicated PoE switch. Thanks to remote management via app , two-way audio communication, H.265/H.264 support and ONVIF compatibility, it offers practical and secure access control. The external unit with a 168.6° wide-angle lens , IP65 and IK07 protection, MicroSD support and flush-mounted installation guarantees high performance, reliability and elegant integration into any residential context.
Main specifications:
- Camera: 2MP CMOS HD 168.6° wide angle
- Monitor: 7" TFT capacitive touch display
- Compression: H.265 / H.264
- Audio: Two-way communication
- Control: Remote management via app
- Power supply: Standard PoE
- Installation: Flush Mount
- Protection: IP65 and IK07 rating
- Compatibility: ONVIF protocol
- Memory: MicroSD support up to 256 GB (external unit) and 64 GB (monitor)
Further details
- 2MP HD camera with 168.6° wide angle.
- Two-way audio.
- Door opening from app, monitor or remote.
- PoE or 12 VDC power supply.
- Aluminum case.
- IP65 and IK07 protection.
- Flush or wall installation.
- Support ONVIF, SIP and microSD up to 256GB.
- Dahua Indoor IP PoE Monitor Station
- Intercom with other compatible internal stations
- 7" capacitive color display (1024x600)
- Alarm: 6 inputs + 1 output
- Two-way audio: Speaker
- Call recording and history
- Alarm integration
- Image acquisition and recording (SD card required)
- Installation: Wall
- White color
- Dimensions: 189.0mm × 130.0mm × 26.9mm
- 24 month warranty
- 6-port Fast Ethernet switch (4 PoE + 2 uplink).
- 4 x IEEE 802.3af/at PoE ports (up to 30W/port).
- Total PoE budget 36W.
- PoE up to 250m (Extend mode).
- PoE Watchdog function.
- Power supply 100–240 VAC.
- Operating temperature -10 °C ÷ +55 °C.
Technical data sheet
| Model | KTP04(F) |
| System (VTO) | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux Operation System |
| Button Type | Mechanical |
| Interoperability | ONVIF; CGI |
| Network Protocol | SIP; TCP; RTP; UPnP; P2P; DNS; UDP; RTSP; IPv4 |
| Basic (VTO) | |
| Room | 1/2.9" 2 MP CMOS |
| Field of View | H: 168.6°; V: 87.1°; D: 176.7° |
| WDR | 120 dB |
| Noise Reduction | 3D NR |
| Video Compression | H.264; H.265 |
| Video Resolution | Main stream: 720p, WVGA, D1, CIF Sub stream: 1080p, WVGA, D1, QVGA, CIF |
| Video Frame Rate | 25 fps; |
| Video Bit Rate | 256 Kbps–8 Mbps |
| Light Compensation | Auto IR |
| Day/Night | Auto(ICR)/Color/B/W;Color/B/W |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 Channel |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression/digital noise reduction |
| Audio Bit Rate | 16 KHz, 16 bit |
| Function(VTO) | |
| Communication Mode | Full digital |
| Unlock Mode | Remote |
| Leave Videos | Yes (SD card is inserted in the indoor monitor or door station) |
| Storage | Supports Micro SD card (up to 256 GB) |
| Web Configuration | Yes |
| Performance (VTO) | |
| Casing Material | Aluminum |
| Port(VTO) | |
| RS-485 | 1 |
| Alarm Output | 1 |
| Power Output | 1 port, 12 V and 600 mA |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1 |
| Network Port | 1 × RJ-45 port, 10/100 Mbps network port |
| Alarm (VTO) | |
| Tamper Alarm | Yes |
| General (VTO) | |
| Appearance Color | Silver |
| Power Supply | 12 VDC, 2 A, PoE (802.3af/at) |
| Power Adapter | Optional |
| Installation | Flush mount (The flush mount kit comes with the flush mount bracket) |
| Certifications | THERE IS |
| Accessory | Surface mount box (included) |
| Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
| Protection | IK07; IP65 |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140°F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.52 ft) |
| Operating Environment | Outdoor |
| Power Consumption | ≤ 4 W (standby), ≤ 5 W (working) |
| Gross Weight | 0.48 kg (1.06 lb) |
| Storage Humidity | 30%–75% (RH), non-condensing |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| System(VTH) | |
| Main Processor | Embedded Processor |
| Operating System | Embedded Linux Operation System |
| Button Type | Touch button |
| Interoperability | ONVIF |
| Network Protocol | SIP; IPv4; RTSP; RTP; TCP; UDP |
| Basic(VTH) | |
| Screen Type | Capacitive Touchscreen |
| Display Screen | 7" TFT |
| Screen Resolution | 1024 (H) × 600 (V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 |
| Audio Output | Built-in speaker |
| Audio Mode | Two-way audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16 KHz; 16 bit |
| Function(VTH) | |
| Communication Mode | Full digital |
| Information Release | Supports viewing text announcement from the center (insert an SD card to receive and view pictures) |
| Leave Videos | Yes (SD card inserted in VTH is needed) |
| DND Mode | Do not disturb period can be set;Do not disturb mode can be set |
| Number of Extensions | Villa: 9; apartment: 4 |
| Storage | Micro SD Card, Max 64 GB (reserved for software) |
| Port(VTH) | |
| RS-485 | 1 |
| Alarm Input | 6 channels (switch quantity) |
| Alarm Output | 1 channel |
| Power Output | 1 port (12V, 100mA) |
| Door Bell | Yes (use any alarm input port) |
| Network Port | 1, 10/100 Mbps Ethernet port |
| Performance (VTH) | |
| Casing Material | PC + ABS |
| General (VTH) | |
| Appearance Color | White |
| Power Supply | 12 VDC, 1 A PoE Standard |
| Power Adapter | Optional |
| Installation | Surface Mount |
| Certifications | CE; FCC; UL |
| Accessory | Bracket (included) Alarm ribbon cable (standard) |
| Product Dimensions | 189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–95% (RH), non-condensing |
| Operating Altitude | 0 m–3,000 m (0 ft–9,842.52 ft) |
| Operating Environment | Indoor |
| Power Consumption | ≤ 2W (standby); ≤ 6W (working) |
| Gross Weightl | 0.74 kg (1.63 lb) |
| Storage Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
| Storage Humidity | 30%–75% (RH), non-condensing |
| System (Networking Device) | |
| Main Processor | Embedded Processor |
| Port (Networking Device) | |
| Network Port | 4 × PoE ports with 10/100 Mbps Base-TX 2 uplink ports with 10/100 Mbps Base-TX |
| General (Networking Device) | |
| Appearance Color | Black |
| Power Supply | Built-in power supply: 100–240 VAC |
| Certifications | CE; FCC |
| Product Dimensions | 194.0 mm × 108.1 mm × 35.0 mm (7.64" × 4.26" × 1.38") |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 10%–90% (RH), non-condensing |
| Power Consumption | Idling: 0.5W; Full load: 36W |
| Gross Weight | 1.11 kg (2.15 lb) |
