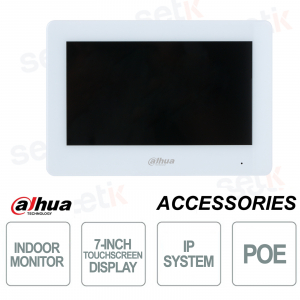

Postazione interna IP PoE Dahua VTH5421HW-W monitor interno a colori 7" TFT touch screen 1024X600, WIFI, H.264, 6 ingressi + 1 uscita allarme. 1 Ingresso audio + 1 autoparlante incorporato, Colorazione Bianco, Connessione con telecamere IP dahua, Allarme SOS, Slot MicroSD, montaggio a parete.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

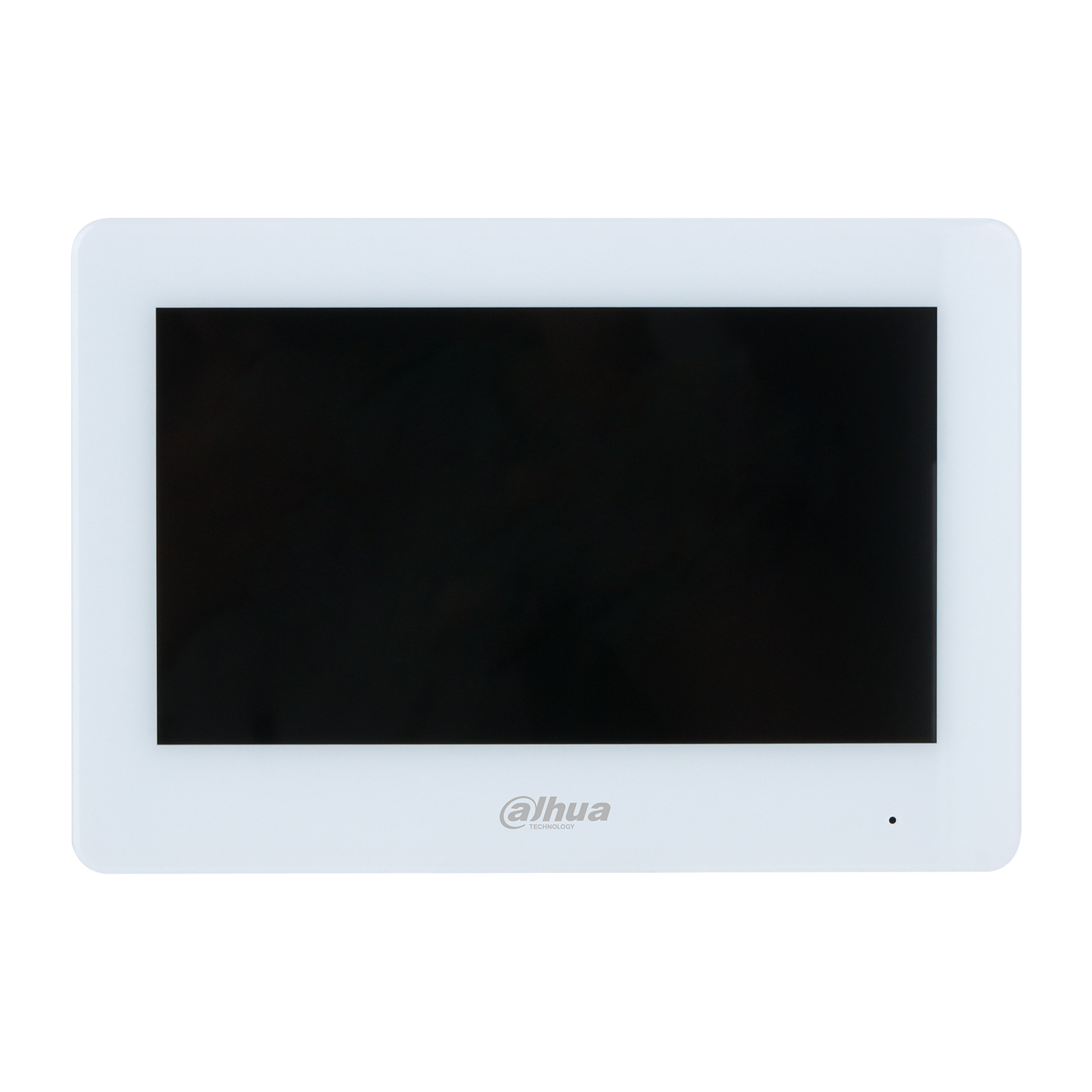

POSTAZIONE INTERNA IP DAHUA MONITOR TFT 7" A COLORI PER INTERNI - COLORAZIONE BIANCA

DESCRIZIONE:
La postazione VTH5421HW-W di Dahua, è una delle migliori postazioni ip PoE interne sul mercato.
Dotata di Display LCD Touch Screen Capacitivo da 7" (1024x600), 6 ingressi + 1 uscita allarme e Slot MicroSD, WI-FI
Presenti alcune funzioni interessanti come la integrazione allarme e connessione LIVE con telecamere IP Dahua, Cancellazione echo e DND (do not disturb). E' in grado di ricevere notifiche dal centro di gestione, lasciare messaggi video/testo ed effettuare chiamate d'emergenza.
Prodotto di qualità. Marca Dahua Security
Dettagli Prodotto:
|
Scheda tecnica
| VTH5421HW-W | |
| System | |
| Main Processor | Embedded processor |
| Operation system | Embedded Linux operation system |
| Interoperability | Support Onvif |
| Internet Protocol | RTSP, RTP, TCP, UDP, SIP |
| Basic | |
| Screen Type | Capacitive Screen |
| Display | 7 inch TFT display |
| Resolution | 1024(H)×600(V) |
| Audio Compression | G.711a; G.711u; PCM |
| Audio Input | 1 channel |
| Audio Output | 1 built-in speaker |
| Audio Mode | 2-way Audio |
| Audio Enhancement | Echo suppression |
| Audio Bit Rate | 16KHz, 16Bit |
| Function | |
| Communication Mode | Full digital |
| Information Release | Receive and view text information released by the management center |
| Leave Videos | Yes (insert an SD card into the indoor monitor) |
| DND Mode | Do not disturb period can be set; Do not disturb mode |
| Extension Quantity | Villa: 9 apartment: 4 Wi-Fi intercom: 1 main monitor, 2 extension monitors |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2,412–2,472 MHz |
| Storage | Micro SD card (up to 64 GB) |
| Wireless Security Encryption | WPA/WPA2; WPA-PSK/WPA2-PSK |
| Performance | |
| Casing | PC + ABS |
| Port | |
| RS485 | 1 |
| Alarm Input | 6 |
| Alarm Output | 1 |
| Power Output | 1 (12 V/200 mA) |
| Door bell | Yes (Use alarm input port) |
| Network | One 10 /100 Mbps Ethernet |
| General | |
| Appearance Color | White |
| Power Supply | 12 VDC 1 A Standard PoE (36–57 V, 0.35 A) |
| Installation | Surface mount |
| Certification | CE, FCC |
| Product Dimensions | 189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06") |
| Operating Temperature | -10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | 10%RH–90%RH (non-condensing) |
| Operating Altitude | Beneath 3000 m (9842.52 ft) |
| Power Consumption | ≤2W (standby), ≤5W (working) |
| Net Weight | 0.35 kg (0.78 lb) |
| Gross Weight | 0.56 kg (1.23 lb) |
Ulteriori dettagli
![]() |
Display a colori da 7" TFT Touch Screen 1024x600, Capacitivo
|
|
Supporta 2-way Audio |
|
![]() |
Connessione tramite porta LAN Ethernet RJ-45 (100Mbps) |
| Audio bidirezionale (Microfono e Speaker integrati) | |
![]() |
6 Ingressi Allarme + 1 Uscita allarme |
| Questo prodotto è coperto da Garanzia di 24 mesi. |
