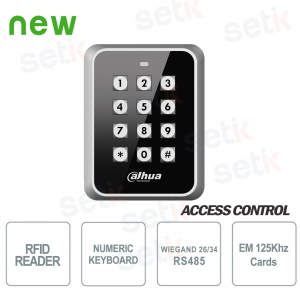

CONTROLLO ACCESSI: LETTORE DI PROSSIMITA' RFID EM 125KHZ CON TASTIERA - DAHUA

| DESCRIZIONE: Tempi di lettura/risposta veloci, dotato di leds colorati per indicazione stato e buzzer. Dotato di tastiera Prodotto estremamente affidabile. |
Dettagli prodotto

- Lettore di prossimità RFID con tastiera - Dahua Security
- Utile per un accesso più rapido attraverso Tessere RFID
- Compatibile tessere RFID EM 125Khz & RS485
- Processore 8 bit
- Funzione di analisi Watchdog
- Tempi di lettura tessera/risposta veloci (<0,1s)
- Tamper sabotaggio
- Leds colorati per indicazione stato
- Buzzer allarme
- Alimentazione: 9V ~ 15V CC, 100mA
- Dimensioni: 110 x 85 x 26 mm
- Installazione a parete
Scheda tecnica
| Model | ASR1101M-D-V1 | |
| System | ||
| Main processor | 8 Bit | |
| Performance | ||
| Read Format | 125KHz | |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") | |
| Response Time | <0.1s | |
| Basic | ||
| Product Type | Card reader | |
| Buzzer | Yes | |
| Casing | Zinc alloy | |
| Function | ||
| Unlock Mode | Card; password | |
| Card Type | ID card | |
| Port | ||
| RS-485 | Yer | |
| Wiegand | Yes | |
| Alarm | ||
| Tamper Alarm | Yes | |
| General | ||
| Power Supply | 9-15VDC/100mA | |
| Protection | IK08 | |
| Power Consumption | ≤ 0.9 W (standby), ≤ 1 W (working) | |
| Product Dimensions | 110 mm × 85 mm × 26 mm (4.33" × 3.35" × 1.02") (L × W × H) | |
| Packaging Dimensions | 153 mm × 144 mm × 77 mm (6.02" × 5.67" × 3.03") (L × W × H) | |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) | |
| Operating Humidity | 0%–95% (RH), non-condensing | |
| Operating Environment | Indoor | |
| Net Weight | 0.48 kg (1.06 lb) | |
| Gross Weight | 0.56 kg (1.23 lb) | |
| Installation | Surface mount; 86 case mount | |
| Certifications | CE; FCC | |
Ulteriori dettagli
|  | Lettore di prossimità RFID per tessere EM 125Khz Tempi di lettura / risposta molto rapidi <0.1s |
|  | Equipaggiato di tastierino numerico.
 |
|  | Luci Led Rosse e Verdi per indicazioni stato |
|

 | Comunicazione tramite controllo RS485 e Wiegand26/34
 |
|  | Funzione Watchdog per analisi anomalie dispositivo |
|  | Questo prodotto è coperto da Garanzia di 24 mesi. |
