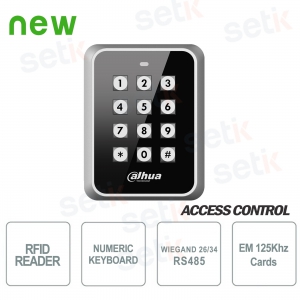

CONTROLLO ACCESSI: LETTORE DI PROSSIMITA' RFID EM 125KHZ CON TASTIERA - DAHUA

|
DESCRIZIONE: Tempi di lettura/risposta veloci, dotato di leds colorati per indicazione stato e buzzer. Dotato di tastiera Prodotto estremamente affidabile. |
Dettagli prodotto

- Lettore di prossimità RFID con tastiera - Dahua Security
- Utile per un accesso più rapido attraverso Tessere RFID
- Compatibile tessere RFID EM 125Khz & RS485
- Processore 8 bit
- Funzione di analisi Watchdog
- Tempi di lettura tessera/risposta veloci (<0,1s)
- Tamper sabotaggio
- Leds colorati per indicazione stato
- Buzzer allarme
- Alimentazione: 9V ~ 15V CC, 100mA
- Dimensioni: 110 x 85 x 26 mm
- Installazione a parete
Scheda tecnica
| Model | ASR1101M-D-V1 | |
| System | ||
| Main processor | 8 Bit | |
| Performance | ||
| Read Format | 125KHz | |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") | |
| Response Time | <0.1s | |
| Basic | ||
| Product Type |
Card reader |
|
| Buzzer |
Yes |
|
| Casing |
Zinc alloy |
|
| Function |
||
| Unlock Mode | Card; password | |
| Card Type | ID card | |
| Port | ||
| RS-485 |
Yer |
|
| Wiegand |
Yes |
|
|
Alarm |
||
| Tamper Alarm |
Yes |
|
|
General |
||
| Power Supply |
9-15VDC/100mA |
|
| Protection |
IK08 |
|
| Power Consumption |
≤ 0.9 W (standby), ≤ 1 W (working) |
|
| Product Dimensions |
110 mm × 85 mm × 26 mm (4.33" × 3.35" × 1.02") (L × W × H) |
|
| Packaging Dimensions |
153 mm × 144 mm × 77 mm (6.02" × 5.67" × 3.03") (L × W × H) |
|
| Operating Temperature |
–10 °C to +55 °C (+14 °F to +131 °F) |
|
| Operating Humidity |
0%–95% (RH), non-condensing |
|
| Operating Environment |
Indoor |
|
| Net Weight |
0.48 kg (1.06 lb) |
|
| Gross Weight |
0.56 kg (1.23 lb) |
|
| Installation |
Surface mount; 86 case mount |
|
| Certifications |
CE; FCC |
|
Ulteriori dettagli
![]() |
Lettore di prossimità RFID per tessere EM 125Khz Tempi di lettura / risposta molto rapidi <0.1s |
![]() |
Equipaggiato di tastierino numerico.
|
![]() |
Luci Led Rosse e Verdi per indicazioni stato |
|
|
Comunicazione tramite controllo RS485 e Wiegand26/34
|
![]() |
Funzione Watchdog per analisi anomalie dispositivo |
|
Questo prodotto è coperto da Garanzia di 24 mesi. |
