ARM310-W2-868 | WIRELESS MODULE FOR INPUT EXPOSURE


Dahua

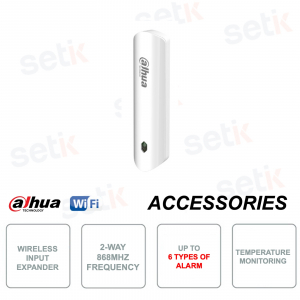

Dahua ARM310-W2-868 is a wireless expansion module designed to integrate wired devices into wireless alarm systems, providing a versatile and reliable solution for residential and commercial security. Compatible with DMSS app for quick configuration, it supports six alarm types: intrusion, medical emergency, fire, emergency, gas leakage and tampering. Equipped with configurable dry contact input (NO/NC), signal strength detection, low battery alarm and temperature monitoring, it ensures stable communication with frequency hopping technology and AES128 encryption. Its communication range reaches up to 1,200 meters in open space, ensuring extensive and reliable coverage.

Main specifications:

- Support for multiple alarm types: handles intrusion, fire, medical emergencies and gas leaks

- Reliable communication: Range up to 1,200 m with frequency hopping technology and AES128 encryption

- Configurable inputs: accepts NO/NC contacts for different types of wired sensors

- System alarms: reports low battery, tampering and temperature changes

- Remotely upgradeable: Supports cloud updates with automatic recovery in case of failure.

Further details

✅ Supported alarm types:
Intrusion, medical emergency, fire, emergency, gas leak, tampering.
✅ Configurable inputs:
Supports NO and NC contacts (NO by default).
✅ Wireless communication :
Frequency 868.0–868.6 MHz, range up to 1,200m in open space, two-way communication with frequency hopping.

✅ Security:
AES128 encryption for data protection.

✅ Monitoring:
Signal strength detection, low battery alarm, temperature monitoring (-15°C to +65°C).
✅ Power supply:
CR123A battery with up to 4 years life (NO input).

✅ Updates:
Support for remote cloud updates

ARM310-W2-868 cover

Technical data sheet

MODEL ARM310-W2-868
Port
Indicator Light 1 × green alarm indicator
Button 1 x power button
Protection Zone 1-channel dry contact input
Function
Tamper Alarm Yes
Remote Upgrade Cloud update
Low Battery Alarm Yes
Test Mode Yes
Search Signal strength detection
Wireless
Carrier Frequency 868.0MHz–868.6MHz
Communication Distance Up to 1,200 m (3,937.01 ft) in an open space
Communication Mechanism Two way
Frequency Hopping Yes
Encryption Mode AES128
General
Power Supply Mode CR123A battery
Power Consumption Max. 125mW
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity 10%–90% (RH)

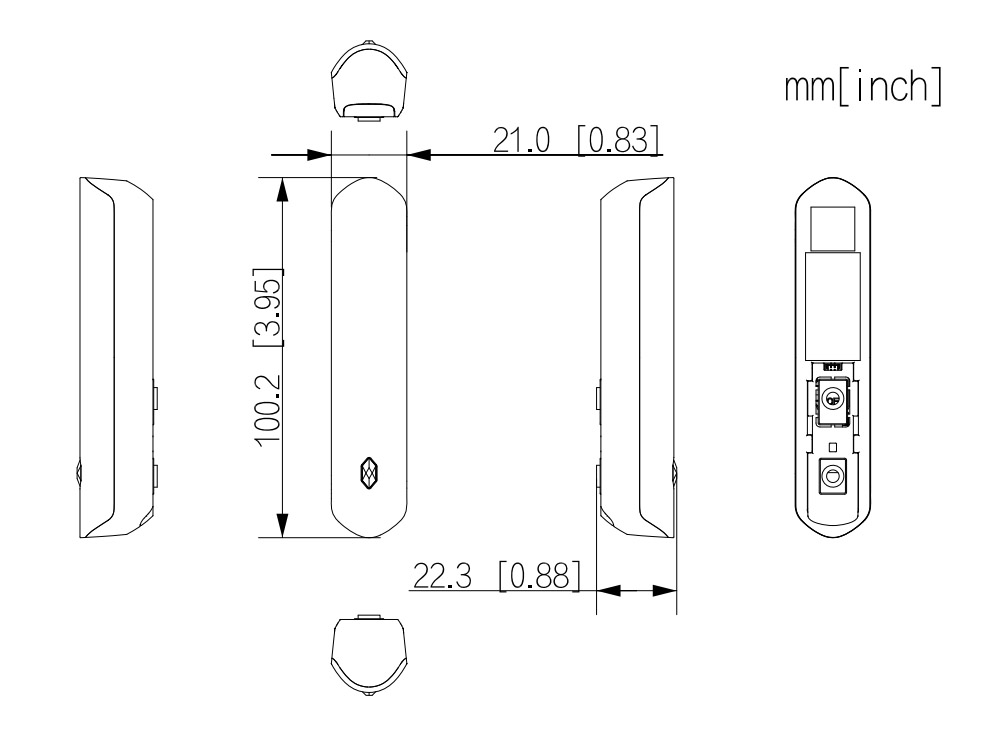

Dimensions 100.2mm × 20.8mm × 20.3mm (3.94" × 0.82" ×0.80")
Package Dimensions 135.0mm × 98.5mm × 27.8mm (5.31" × 3.88" × 1.09")
Installation Mode Bracket mount
Net Weight 70g (0.15 lb)
Gross Weight 115g (0.25lb)
Certification THERE IS
Battery Life 4 years (The external input type is NO)
2 years (The external input type is NC or Pulse)
Casing Material PC + ABS
Temperature
Measurement Range –15 °C to +65 °C (+5 °F to +149 °F) (indoor)
Measurement Precision ±1°C (±1.8°F)
Resolution 1 °C (33.8 °F)
