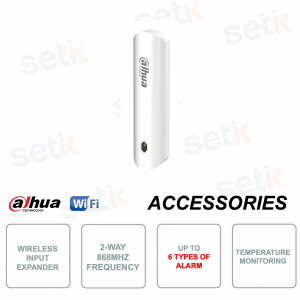

ARM310-W2-868 Wireless Module for Wired Sensors with 4-Year Battery Life - Dahua

ARM310-W2-868 Wireless Module for Wired Sensors with 4-Year Battery Life - Dahua

 
BEST PRICE -35%

ARM310-W2-868 - module allows the integration of wired sensors into wireless alarm systems. It supports six alarm types, has configurable NO/NC input and communicates up to 1,200 m in open spaces thanks to AES128 encryption and frequency hopping. It is compatible with the DMSS app for quick configurations and cloud updates. It includes temperature detection, signal strength and low battery alarm. Powered by CR123A battery with up to 4 years of autonomy, it is ideal for residential and commercial security solutions. Dahua

Technical Data Sheet

Artikel-Nr.: ARM310-W2-868

Marke: Dahua

EAN: 6923172532633

Disponibilità: 46

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

TOTALER AUSVERKAUF ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

ARM310-W2-868 | WIRELESS MODULE FOR INPUT EXPOSURE


Dahua

Dahua ARM310-W2-868 is a wireless expansion module designed to integrate wired devices into wireless alarm systems, providing a versatile and reliable solution for residential and commercial security. Compatible with DMSS app for quick configuration, it supports six alarm types: intrusion, medical emergency, fire, emergency, gas leakage and tampering. Equipped with configurable dry contact input (NO/NC), signal strength detection, low battery alarm and temperature monitoring, it ensures stable communication with frequency hopping technology and AES128 encryption. Its communication range reaches up to 1,200 meters in open space, ensuring extensive and reliable coverage.

Main specifications:

- Support for multiple alarm types: handles intrusion, fire, medical emergencies and gas leaks

- Reliable communication: Range up to 1,200 m with frequency hopping technology and AES128 encryption

- Configurable inputs: accepts NO/NC contacts for different types of wired sensors

- System alarms: reports low battery, tampering and temperature changes

- Remotely upgradeable: Supports cloud updates with automatic recovery in case of failure.

Further details

✅ Supported alarm types:
Intrusion, medical emergency, fire, emergency, gas leak, tampering.
✅ Configurable inputs:
Supports NO and NC contacts (NO by default).
✅ Wireless communication :
Frequency 868.0–868.6 MHz, range up to 1,200m in open space, two-way communication with frequency hopping.

✅ Security:
AES128 encryption for data protection.

✅ Monitoring:
Signal strength detection, low battery alarm, temperature monitoring (-15°C to +65°C).
✅ Power supply:
CR123A battery with up to 4 years life (NO input).

✅ Updates:
Support for remote cloud updates

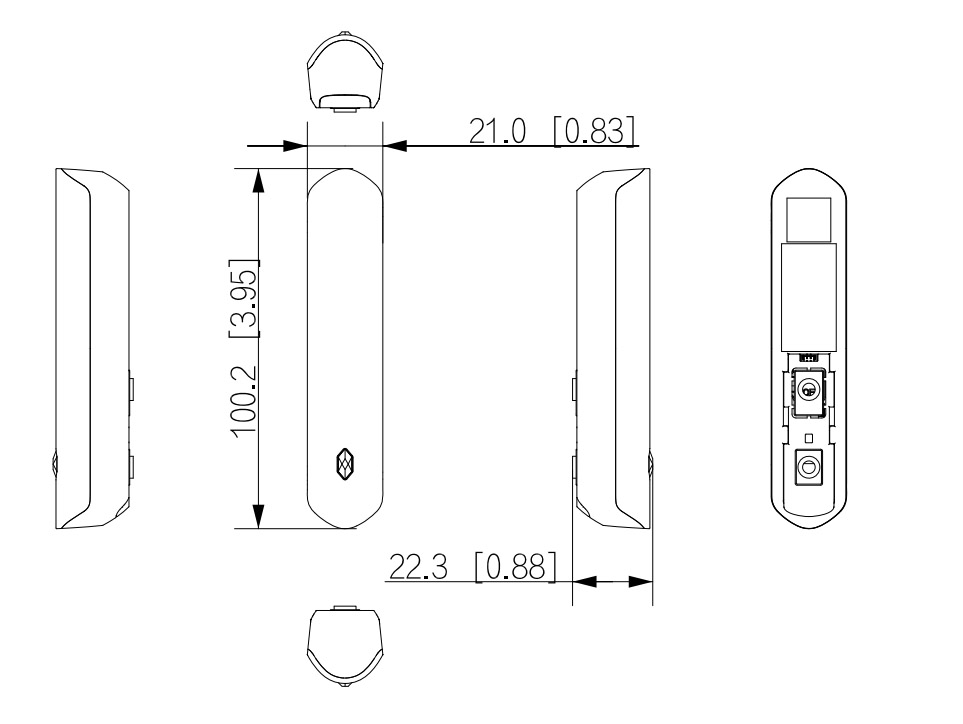

ARM310-W2-868 cover

Technical data sheet

MODEL ARM310-W2-868
Port
Indicator Light 1 × green alarm indicator
Button 1 x power button
Protection Zone 1-channel dry contact input
Function
Tamper Alarm Yes
Remote Upgrade Cloud update
Low Battery Alarm Yes
Test Mode Yes
Search Signal strength detection
Wireless
Carrier Frequency 868.0MHz–868.6MHz
Communication Distance Up to 1,200 m (3,937.01 ft) in an open space
Communication Mechanism Two way
Frequency Hopping Yes
Encryption Mode AES128
General
Power Supply Mode CR123A battery
Power Consumption Max. 125mW
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity 10%–90% (RH)
Dimensions 100.2mm × 20.8mm × 20.3mm (3.94" × 0.82" ×0.80")
Package Dimensions 135.0mm × 98.5mm × 27.8mm (5.31" × 3.88" × 1.09")
Installation Mode Bracket mount
Net Weight 70g (0.15 lb)
Gross Weight 115g (0.25lb)
Certification THERE IS
Battery Life 4 years (The external input type is NO)
2 years (The external input type is NC or Pulse)
Casing Material PC + ABS
Temperature
Measurement Range –15 °C to +65 °C (+5 °F to +149 °F) (indoor)
Measurement Precision ±1°C (±1.8°F)
Resolution 1 °C (33.8 °F)
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
