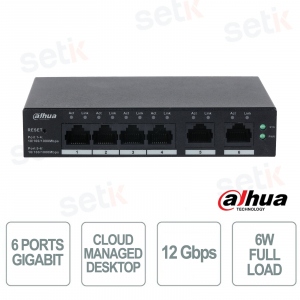

CS4006-4GT | 6-PORT CLOUD MANAGED NETWORK SWITCH

The Dahua CS4006-4GT managed cloud switch is the ideal choice for enterprise networks and security systems, thanks to its 6 Gigabit ports and support for advanced Layer 2 management features. With the DoLynk Care platform, it offers remote monitoring, network topology management, and real-time notifications. The fanless metal design ensures quiet operation, long life, and protection against surges, lightning, and static electricity, making it perfect for offices, hotels, retail stores, and SMBs .
Main specifications:
- 6 RJ-45 Gigabit ports (4 access + 2 uplink)
- Switching capacity 12 Gbps and forwarding rate 8.93 Mpps
- Cloud management via DoLynk Care app
- VLAN, STP/RSTP and link aggregation functions
- Integrated protection against overvoltage and electrostatic discharges
- Fanless metal design with operating range –10°C ~ +55°C
Further details
Technical data sheet
CS4006-4GT | |
Basic | |
Layer | Layer 2 |
Switching Capacity | 12 Gbps |
Packet Forwarding Rate | 8.93 Mpps |
Description of Function Slots | Port 1-4: 4 × RJ45 10/100/1000Mbps; Port 5-6: 2 × RJ45 10/100/1000 Mbps (uplink) |
Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
Operating Humidity | 5%–95% (RH), non-condensing |
Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
Storage Humidity | 5%–95% (RH), non-condensing |
Power Supply | External power supply: 12 VDC, 1.5 A |
Power Consumption | Idling: ≤2.5W Full load: 6 W |
Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
Lightning Protection | Common mode: 4 kV Differential mode: 2 kV |
Net Weight | 0.30 kg (1.1 lb) |
Gross Weight | 0.78 kg (1.72 lb) |
Product Dimensions | 130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H) |
Packaging Dimensions | 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H) |
Casing Material | Sheet metal |
Installation | Desktop mount; wall mount |
Hardware | |
Reset Button | 1 |
Performance | |
MTBF | 222.36 years |
Packet Buffer Size | 4 Mbit |
Jumbo Frame | 15K Bytes |
MAC Table Size | 8K |
Communication Standard | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3az IEEE 802.3ab IEEE 802.3ad |
VLAN Number | 32 |
Feature | |
Ethernet Loop Protection | STP; RSTP |
VLAN Function | IEEE 802.1Q VLAN |
Link Aggregation | Static Aggregation |
Port Feature | IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control MAC+Port Binding Loop Prevention |
Mirror | N:1 Mirroring Local Port Mirroring |
Reliability | LLDP |
DHCP Function | DHCP Client |
Security | Port Isolation |
Equipment Management | Web Management Cloud Management Logs Fault Alarm |
General | |
Packing List | 1 × Quick Start Guide 1 × Legal and Regulatory Information 1 × Power Adapter 1 × Power Cord |
