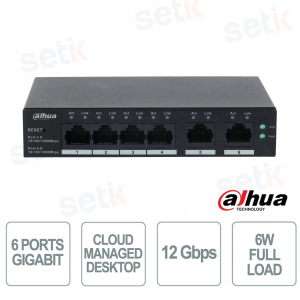

CS4006-4GT | 6-PORT CLOUD MANAGED NETWORK SWITCH

The Dahua CS4006-4GT managed cloud switch is the ideal choice for enterprise networks and security systems, thanks to its 6 Gigabit ports and support for advanced Layer 2 management features. With the DoLynk Care platform, it offers remote monitoring, network topology management, and real-time notifications. The fanless metal design ensures quiet operation, long life, and protection against surges, lightning, and static electricity, making it perfect for offices, hotels, retail stores, and SMBs .
Main specifications:
- 6 RJ-45 Gigabit ports (4 access + 2 uplink)
- Switching capacity 12 Gbps and forwarding rate 8.93 Mpps
- Cloud management via DoLynk Care app
- VLAN, STP/RSTP and link aggregation functions
- Integrated protection against overvoltage and electrostatic discharges
- Fanless metal design with operating range –10°C ~ +55°C
Further details
Technical data sheet
| CS4006-4GT | |
| Basic | |
| Layer | Layer 2 |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| Description of Function Slots | Port 1-4: 4 × RJ45 10/100/1000Mbps; Port 5-6: 2 × RJ45 10/100/1000 Mbps (uplink) |
| Operating Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity | 5%–95% (RH), non-condensing |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Storage Humidity | 5%–95% (RH), non-condensing |
| Power Supply | External power supply: 12 VDC, 1.5 A |
| Power Consumption | Idling: ≤2.5W Full load: 6 W |
| Statics Protection | Air discharge: 8 kV; Contact discharge: 6 kV |
| Lightning Protection | Common mode: 4 kV Differential mode: 2 kV |
| Net Weight | 0.30 kg (1.1 lb) |
| Gross Weight | 0.78 kg (1.72 lb) |
| Product Dimensions | 130 mm × 90 mm × 26 mm (5.11" × 3.54" × 1.02") (L × W × H) |
| Packaging Dimensions | 265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99") (L × W × H) |
| Casing Material | Sheet metal |
| Installation | Desktop mount; wall mount |
| Hardware | |
| Reset Button | 1 |
| Performance | |
| MTBF | 222.36 years |
| Packet Buffer Size | 4 Mbit |
| Jumbo Frame | 15K Bytes |
| MAC Table Size | 8K |
| Communication Standard | IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3az IEEE 802.3ab IEEE 802.3ad |
| VLAN Number | 32 |
| Feature | |
| Ethernet Loop Protection | STP; RSTP |
| VLAN Function | IEEE 802.1Q VLAN |
| Link Aggregation | Static Aggregation |
| Port Feature | IEEE 802.3x Flow Control Unknown Unicast Suppression Multicast Storm Control Broadcast Storm Control MAC+Port Binding Loop Prevention |
| Mirror | N:1 Mirroring Local Port Mirroring |
| Reliability | LLDP |
| DHCP Function | DHCP Client |
| Security | Port Isolation |
| Equipment Management | Web Management Cloud Management Logs Fault Alarm |
| General | |
| Packing List | 1 × Quick Start Guide 1 × Legal and Regulatory Information 1 × Power Adapter 1 × Power Cord |
