TP-Link Omada IES208G – 8-Port Gigabit Industrial Managed Switch with VLAN and Cloud

TP-Link Omada IES208G – 8-Port Gigabit Industrial Managed Switch with VLAN and Cloud

nuevo

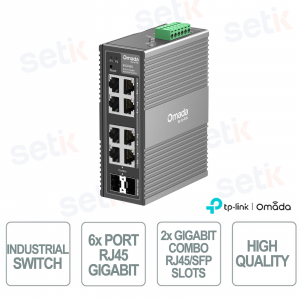

The TP-Link Omada IES208G is an easy-to-use industrial managed switch with 8 Gigabit ports (6 RJ45 and 2 RJ45/SFP combo), designed to ensure reliable performance even in extreme conditions from -40°C to +75°C. Equipped with 6kV lightning protection, dual redundant power inputs and an IP40 aluminum enclosure, it ensures maximum durability and business continuity. It supports advanced features such as VLAN, QoS, STP/RSTP and centralized cloud management via the web or the Omada app, allowing for quick configuration and remote control. With 16 Gbps switching capacity, a large buffer and a fanless design to reduce power consumption, it represents a robust and scalable solution for professional industrial networks.

Technical data sheet

referencia : IES208G

brand : OMADA

EAN: 1210002602099

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

IES208G | INDUSTRIAL SWITCH 8 GIGABIT PORTS - TPLINK OMADA


Made Omada

The TP-Link Omada IES208G is an 8-port Gigabit industrial managed switch designed to deliver stable and reliable performance even in extreme environments, thanks to its professional design with 6kV lightning protection, redundant power supply, and rugged IP40 aluminum enclosure. It supports advanced features such as VLAN, QoS, and STP/RSTP, allowing centralized cloud management via the web or the Omada app. With 16 Gbps switching capacity and a wide operating temperature range (-40°C ~ +75°C), it is the ideal choice for secure and scalable industrial network infrastructures.

Main specifications:

- 8 Gigabit ports (6 RJ45 + 2 RJ45/SFP combo)

- Industrial protection from -40°C to +75°C and 6kV lightning

- 1+1 redundant power supply for increased reliability

- VLAN, QoS, STP/RSTP support and Omada cloud management

- Robust IP40 aluminum construction with wall or DIN-rail mounting

Further details

Number of doors:
It features 8 total Gigabit ports : 6 standard RJ45 and 2 RJ45/SFP combo, offering connection flexibility for both copper and fiber optics, ideal for various industrial networking needs.
Switching capacity :
With a switching capacity of 16 Gbps and a forwarding rate of 11.9 Mpps, it ensures high data transfer speeds, minimizing latency and better supporting critical and traffic-intensive applications.
Software Features :
It supports advanced Layer 2 features, including VLAN, QoS, IGMP Snooping, Link Aggregation, STP/RSTP, and Port Mirroring , enabling optimized traffic management, priority control, and network loop protection.
Cloud Management :
Integrated with the Omada SDN platform, it enables centralized management via web GUI or Omada app , with features such as batch configuration, automatic firmware upgrades, and remote monitoring, simplifying network administration.

Technical data sheet

Model IES208G
HARDWARE FEATURES
Interface 6× 10/100/1000Mbps RJ45 Ports
2× Gigabit SFP/RJ45 Combo Slots
Auto-Negotiation/Auto MDI/MDIX
Number of fans Fanless
Installation DIN-rail mounting
Wall mounting
Diet 9.6-60V 1+1 Redundant DC Power Input
Dimensions (L x W x H) 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection ±6 kV in common mode for Ethernet ports
±4 kV in common mode for DC power input ports
PERFORMANCES
Switching capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
ARP Table 8K
Buffer (packets) 4 Mbit
Jumbo frame 15 KB
SOFTWARE FEATURES
QoS (Quality of Service) 802.1p DSCP Priority
8 Priority Queues
Priority Schedule Mode
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port-Based Rate Limit
Storm Control
Multiple Control Modes (kbps/pps)
Broadcast/Multicast/Unknown-Unicast Control
L2 functionality Link Aggregation
Static Link Aggregation
Up to 4 aggregation groups and up to 6 ports per group
Loopback Detection
Flow Control
802.3x Flow Control
Mirroring
Port Mirroring
One-to-One
Many-to-One
Ingress/Egress/Both
Port Statistics
Port Mirror Status
Traffic Statistics
802.1ab LLDP
Spanning Tree
STP (802.1d)
RSTP (802.1w)
L2 Multicast IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
VLAN VLAN MTU
Port-Based VLAN
802.1Q VLAN Tag
Max 32 VLAN Groups
4K VID
Transmission method Store-And-Forward
MANAGEMENT
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features Web-based GUI
DHCP Client
Cable Diagnostics
Digital Diagnostic Monitoring (DDM)
Automatic Device Discovery†
Batch Configuration
Batch Firmware Upgrading
Unified Configuration
OTHER
Certification CE, FCC, RoHS
Package Contents IES208G
DIN-Rail Mounting Bracket
Wall-Mounting Plates
Installation Guide
Environment Operating Temperature: -40℃~75℃ (-40℉~167℉)
Storage Temperature: -40℃~85℃ (-40℉~185℉)
Operating Humidity: 5%~95% non-condensing
Storage Humidity: 5%~95% non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
