TP-Link Omada IES208G è uno switch industriale gestito facile da usare con 8 porte Gigabit (6 RJ45 e 2 combo RJ45/SFP), progettato per garantire prestazioni affidabili anche in condizioni estreme da -40°C a +75°C. Dotato di protezione da fulmini 6kV, doppio ingresso di alimentazione ridondante e struttura in alluminio IP40, assicura massima resistenza e continuità operativa. Supporta funzioni avanzate come VLAN, QoS, STP/RSTP e gestione centralizzata via cloud tramite web o app Omada, permettendo configurazioni rapide e controllo remoto. Con capacità di switching da 16 Gbps, ampio buffer e design fanless per ridurre i consumi, rappresenta una soluzione robusta e scalabile per reti industriali professionali.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

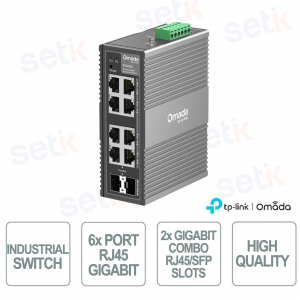

IES208G | SWITCH INDUSTRIALE 8 PORTE GIGABIT - TPLINK OMADA

Il TP-Link Omada IES208G è uno switch industriale gestito a 8 porte Gigabit progettato per offrire prestazioni stabili e affidabili anche in ambienti estremi, grazie al design professionale con protezione da fulmini 6kV, alimentazione ridondante e robusta scocca in alluminio IP40. Supporta funzioni avanzate come VLAN, QoS e STP/RSTP, permettendo una gestione centralizzata via cloud tramite web o app Omada. Con capacità di switching da 16 Gbps e un ampio intervallo di temperatura operativa (-40°C ~ +75°C), rappresenta la scelta ideale per infrastrutture di rete industriali sicure e scalabili.
Specifiche principali:
- 8 porte Gigabit (6 RJ45 + 2 combo RJ45/SFP)
- Protezione industriale da -40°C a +75°C e fulmini 6kV
- Alimentazione ridondante 1+1 per maggiore affidabilità
- Supporto VLAN, QoS, STP/RSTP e gestione cloud Omada
- Struttura robusta in alluminio IP40 con montaggio a parete o DIN-rail
Ulteriori dettagli
Scheda tecnica
Model | IES208G |
CARATTERISTICHE HARDWARE | |
Interfaccia | 6× 10/100/1000 Mbps RJ45 Ports 2× Gigabit SFP/RJ45 Combo Slots Auto-Negotiation/Auto MDI/MDIX |
Numero ventole | Fanless |
Installation | DIN-rail mounting Wall mounting |
Alimentazione | 9.6-60V 1+1 Redundant DC Power Input |
Dimensioni ( L x P x A ) | 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm) |
Surge Protection | ±6 kV in common mode for Ethernet ports ±4 kV in common mode for DC power input ports |
PRESTAZIONI | |
Capacità di switching | 16 Gbps |
Packet Forwarding Rate | 11.9 Mpps |
Tabella ARP | 8K |
Buffer (pacchetti) | 4 Mbit |
Jumbo frame | 15 KB |
CARATTERISTICHE SOFTWARE | |
QoS (Quality of Service) | 802.1p DSCP Priority 8 Priority Queues Priority Schedule Mode WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control Port-Based Rate Limit Storm Control Multiple Control Modes (kbps/pps) Broadcast/Multicast/Unknown-Unicast Control |
Funzionalità L2 | Link Aggregation Static Link Aggregation Up to 4 aggregation groups and up to 6 ports per group Loopback Detection Flow Control 802.3x Flow Control Mirroring Port Mirroring One-to-One Many-to-One Ingress/Egress/Both Port Statistics Port Mirror Status Traffic Statistics 802.1ab LLDP Spanning Tree STP (802.1d) RSTP (802.1w) |
L2 Multicast | IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave |
VLAN | MTU VLAN Port-Based VLAN 802.1Q Tag VLAN Max 32 VLAN Groups 4K VID |
Metodo di trasmissione | Store-And-Forward |
GESTIONE | |
Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
Management Features | Web-based GUI DHCP Client Cable Diagnostics Digital Diagnostic Monitoring (DDM) Automatic Device Discovery† Batch Configuration Batch Firmware Upgrading Unified Configuration |
ALTRO | |
Certificazione | CE, FCC, RoHS |
Contenuto della confezione | IES208G DIN-Rail Mounting Bracket Wall-Mounting Plates Installation Guide |
Ambiente | Operating Temperature: -40℃~75℃ (-40℉~167℉) Storage Temperature: -40℃~85℃ (-40℉~185℉) Operating Humidity: 5%~95% non-condensing Storage Humidity: 5%~95% non-condensing |
