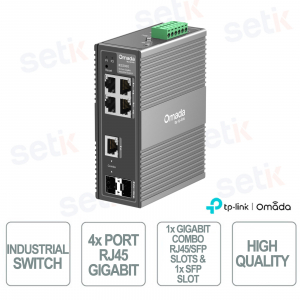

IES206G | INDUSTRIAL SWITCH 6 GIGABIT PORTS - TPLINK OMADA


Made Omada

The TP-Link Omada IES206G is a 6-port Gigabit industrial managed switch (4 RJ45, 1 RJ45/SFP combo, and 1 SFP), ideal for ensuring stable and secure connections in extreme environments thanks to its professional design with 6kV lightning protection, redundant power supply, and IP40 aluminum enclosure. With a switching capacity of 12 Gbps and advanced network features such as VLAN, QoS, STP/RSTP, and IGMP Snooping, it offers high performance and optimized traffic management. Integrated with the Omada SDN platform, it enables centralized cloud management, batch configurations, and remote monitoring via web or app.

Main specifications:

- 6 Gigabit ports (4 RJ45, 1 RJ45/SFP combo, 1 SFP)

- 12 Gbps switching capacity and 8.93 Mpps forwarding rate

- Support VLAN, QoS, STP/RSTP, IGMP Snooping and Port Mirroring

- Omada SDN cloud management with centralized configurations and updates

Further details

Number of doors:
It has 6 Gigabit ports : 4 RJ45, 1 RJ45/SFP combo and 1 SFP, offering great connection flexibility for both copper and fiber optics to adapt to different industrial infrastructures.
Switching capacity :
With 12 Gbps switching capacity and 8.93 Mpps forwarding rate, the switch ensures high data transfer speeds, reducing latency and optimizing network traffic management.
Software Features :
It supports advanced networking features such as VLAN, QoS, IGMP Snooping, STP/RSTP, Link Aggregation and Port Mirroring , ensuring priority for critical data, loop control and accurate traffic monitoring.
Cloud Management :
Integrated with Omada SDN , it enables unified and intuitive management via web or Omada app , with batch configurations, automatic firmware updates and remote monitoring, simplifying operations and increasing efficiency.

Technical data sheet

Model IES206G
HARDWARE FEATURES
Interface 4×10/100/1000Mbps RJ45 Ports
1× Gigabit SFP/RJ45 Combo Slots
1× Gigabit SFP Slot
Auto-Negotiation/Auto MDI/MDIX
Number of fans Fanless
Installation DIN-rail mounting
Wall mounting
Diet 9.6-60V 1+1 Redundant DC Power Input
Dimensions (L x W x H) 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection ±6 kV in common mode for Ethernet ports
±4 kV in common mode for DC power input ports
PERFORMANCES
Switching capacity 12 Gbps
Packet Forwarding Rate 8.93 Mpps
ARP Table 8K
Buffer (packets) 4 Mbit
Jumbo frame 15 KB
SOFTWARE FEATURES
QoS (Quality of Service) 802.1p DSCP Priority
8 Priority Queues
Priority Schedule Mode
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port-Based Rate Limit
Storm Control
Multiple Control Modes (kbps/pps)
Broadcast/Multicast/Unknown-Unicast Control
L2 functionality Link Aggregation
Static Link Aggregation
Up to 4 aggregation groups and up to 6 ports per group
Loopback Detection
Flow Control
802.3x Flow Control
Mirroring
Port Mirroring
One-to-One
Many-to-One
Ingress/Egress/Both
Port Statistics
Port Mirror Status
Traffic Statistics
802.1ab LLDP
Spanning Tree
STP (802.1d)
RSTP (802.1w)
L2 Multicast IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave
VLAN VLAN MTU
Port-Based VLAN
802.1Q VLAN Tag
Max 32 VLAN Groups
4K VID
Transmission method Store-And-Forward
MANAGEMENT
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features Web-based GUI
DHCP Client
Cable Diagnostics
Digital Diagnostic Monitoring (DDM)
Automatic Device Discovery†
Batch Configuration
Batch Firmware Upgrading
Unified Configuration
OTHER
Certification CE, FCC, RoHS
Package Contents IES206G
DIN-Rail Mounting Bracket
Wall-Mounting Plates
Installation Guide
Environment Operating Temperature: -40℃~75℃ (-40℉~167℉)
Storage Temperature: -40℃~85℃ (-40℉~185℉)
Operating Humidity: 5%~95% non-condensing
Storage Humidity: 5%~95% non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
