TP-Link Omada IES206G è uno switch industriale gestito a 6 porte Gigabit (4 RJ45, 1 combo RJ45/SFP e 1 SFP), progettato per garantire connessioni stabili e sicure anche in ambienti estremi con temperature da -40°C a +75°C. Grazie alla capacità di switching da 12 Gbps e al supporto per VLAN, QoS, STP/RSTP e IGMP Snooping, assicura alte prestazioni e gestione ottimizzata del traffico. Il design robusto con protezione da fulmini 6kV, alimentazione ridondante e scocca in alluminio IP40 offre massima affidabilità in ambito industriale. Integrato con la piattaforma Omada SDN, consente gestione centralizzata e monitoraggio remoto via cloud, semplificando configurazioni e manutenzione.
FUORI TUTTO ×
FUORI TUTTO!
Approfitta della imperdibile offerte del nostro outlet
Scopri la promo >>

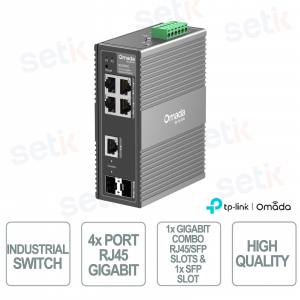

IES206G | SWITCH INDUSTRIALE 6 PORTE GIGABIT - TPLINK OMADA

Il TP-Link Omada IES206G è uno switch industriale gestito a 6 porte Gigabit (4 RJ45, 1 combo RJ45/SFP e 1 SFP), ideale per garantire connessioni stabili e sicure in ambienti estremi grazie al design professionale con protezione da fulmini 6kV, alimentazione ridondante e scocca in alluminio IP40. Con una capacità di switching di 12 Gbps e funzioni avanzate di rete come VLAN, QoS, STP/RSTP e IGMP Snooping, offre prestazioni elevate e gestione ottimizzata del traffico. Integrato con la piattaforma Omada SDN, consente gestione cloud centralizzata, configurazioni batch e monitoraggio remoto tramite web o app.
Specifiche principali:
- 6 porte Gigabit (4 RJ45, 1 combo RJ45/SFP, 1 SFP)
- Capacità di switching da 12 Gbps e forwarding rate 8.93 Mpps
- Supporto VLAN, QoS, STP/RSTP, IGMP Snooping e Port Mirroring
- Gestione cloud Omada SDN con configurazioni e aggiornamenti centralizzati
Ulteriori dettagli
Scheda tecnica
Model | IES206G |
CARATTERISTICHE HARDWARE | |
Interfaccia | 4× 10/100/1000 Mbps RJ45 Ports 1× Gigabit SFP/RJ45 Combo Slots 1× Gigabit SFP Slot Auto-Negotiation/Auto MDI/MDIX |
Numero ventole | Fanless |
Installation | DIN-rail mounting Wall mounting |
Alimentazione | 9.6-60V 1+1 Redundant DC Power Input |
Dimensioni ( L x P x A ) | 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm) |
Surge Protection | ±6 kV in common mode for Ethernet ports ±4 kV in common mode for DC power input ports |
PRESTAZIONI | |
Capacità di switching | 12 Gbps |
Packet Forwarding Rate | 8.93 Mpps |
Tabella ARP | 8K |
Buffer (pacchetti) | 4 Mbit |
Jumbo frame | 15 KB |
CARATTERISTICHE SOFTWARE | |
QoS (Quality of Service) | 802.1p DSCP Priority 8 Priority Queues Priority Schedule Mode WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control Port-Based Rate Limit Storm Control Multiple Control Modes (kbps/pps) Broadcast/Multicast/Unknown-Unicast Control |
Funzionalità L2 | Link Aggregation Static Link Aggregation Up to 4 aggregation groups and up to 6 ports per group Loopback Detection Flow Control 802.3x Flow Control Mirroring Port Mirroring One-to-One Many-to-One Ingress/Egress/Both Port Statistics Port Mirror Status Traffic Statistics 802.1ab LLDP Spanning Tree STP (802.1d) RSTP (802.1w) |
L2 Multicast | IGMP Snooping IGMP v1/v2/v3 Snooping Fast Leave |
VLAN | MTU VLAN Port-Based VLAN 802.1Q Tag VLAN Max 32 VLAN Groups 4K VID |
Metodo di trasmissione | Store-And-Forward |
GESTIONE | |
Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
Cloud Access | Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller. |
Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
Management Features | Web-based GUI DHCP Client Cable Diagnostics Digital Diagnostic Monitoring (DDM) Automatic Device Discovery† Batch Configuration Batch Firmware Upgrading Unified Configuration |
ALTRO | |
Certificazione | CE, FCC, RoHS |
Contenuto della confezione | IES206G DIN-Rail Mounting Bracket Wall-Mounting Plates Installation Guide |
Ambiente | Operating Temperature: -40℃~75℃ (-40℉~167℉) Storage Temperature: -40℃~85℃ (-40℉~185℉) Operating Humidity: 5%~95% non-condensing Storage Humidity: 5%~95% non-condensing |
