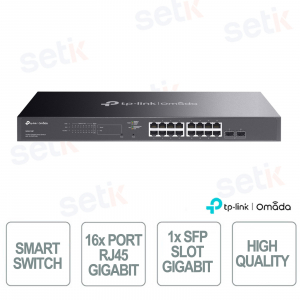

SG2218 | INDUSTRIAL SWITCH 20 GIGABIT PORTS - TPLINK OMADA


Made Omada

The TP-Link Omada SG2218 is an 18-port Gigabit smart switch with 16 LAN ports and 2 SFP slots, ideal for high-performance business networks. It powers access points, IP cameras, and network devices securely and efficiently. With a switching capacity of 36 Gbps and advanced features such as VLAN, QoS, ACL, IGMP Snooping, and static routing, it ensures optimal traffic management. The fanless design with a rackmount metal enclosure ensures reliability and silence, while the Omada SDN platform offers centralized cloud management, intelligent monitoring, and simplified configuration.

Main specifications:

- 18 total ports: 16 Gigabit LAN and 2 SFP slots

- Switching capacity 36 Gbps and forwarding rate 26.8 Mpps

- Advanced features: VLAN, ACL, QoS, IGMP Snooping, static routing

- Omada SDN cloud management and fanless rackmount design

Further details

Number of doors:
Equipped with 18 total ports , including 16 Gigabit LAN ports and 2 Gigabit SFP slots , it allows maximum connection flexibility for different network scenarios .
Switching capacity :
It provides 36 Gbps switching capacity and 26.8 Mpps forwarding rate, ensuring fast and stable transmission even with high traffic volumes, ideal for complex business networks .
Software Features :
It supports advanced features such as VLANs (up to 4K groups), QoS, ACLs, IGMP Snooping, Link Aggregation, and Static Routing , improving traffic management and network security. It also includes 802.1X authentication, IP Source Guard, and DoS attack protections .
Cloud Management :
Integrated with Omada SDN platform , it enables unified management via web, Omada app or hardware/software controller , with Zero-Touch Provisioning, intelligent monitoring and batch configuration functions , making administration easier and more efficient .

Technical data sheet

Model SG2218
HARDWARE FEATURES
Interface 16× 10/100/1000Mbps RJ45 Ports
2× Gigabit SFP Slot
Number of fans Fanless Design
Diet 100-240V AC, 50/60Hz
Dimensions (L x W x H) 17.3×7.1×1.7 in (440×180×44 mm)
Mounting type Rack Mountable
Max. Power Consumption 12.3 W (220 V/50 Hz)
Max. Heat Dissipation 41.97 BTU/hr
PERFORMANCES
Switching capacity 36 Gbps
Packet Forwarding Rate 26.8 Mpps
ARP Table 8K
Buffer (packets) 4 Mbit
Jumbo frame 9 KB
SOFTWARE FEATURES
QoS (Quality of Service) 802.1p DSCP Priority
8 Priority Queues
Priority Schedule Mode
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port-Based Rate Limit
Storm Control
Multiple Control Modes (kbps/pps)
Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ functionality 32 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
DHCP Interface Relay
DHCP VLAN Relay
DHCP L2 Relay
Static ARP
ARP Proxy
Gratuitous ARP
Link Aggregation
Spanning Tree Protocol
Loopback Detection
802.3x Flow Control
Mirroring
Device Link Detect Protocol (DLDP)
802.1ab LLDP/ LLDP-MED
L2 Multicast 511 IPv4, IPv6 shared multicast groups
IGMP Snooping
Multicast VLAN Registration (MVR)
Multicast Filtering
Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
VLAN VLAN MTU
Max. 4K VLAN Groups
802.1Q VLAN Tag
MAC VLAN: 12 Entries
GVRP
Voice VLAN
ACL (Access Control List) Support up to 230 entries
Time-based ACL
MAC ACL
IP ACL
IPv6 ACL
Combined ACL
Rule Operation: Permit/Deny
Policy Action
Mirroring
Redirect
Rate Limit
QoS Remark
ACL Rules Binding
Port Binding
VLAN Binding
Safety IP-MAC-Port Binding
AAA
802.1X
Port-based authentication
MAC (Host) based authentication
Authentication Method includes PAP/EAP-MD5
MAB
Guest VLAN
Support Radius authentication and accountability
IP/IPv6-MAC Binding
512 Binding Entries
DHCP Snooping
DHCPv6 Snooping
ARP Inspection
ND Detection
IP Source Guard
253 Entries
Source IP + Source MAC
IPv6 Source Guard
183 Entries
Source IPv6 Address+Source MAC
DoS Defend
Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
Port Isolation
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IP/Port/MAC-based access control
IPv6 IPv6 Static Routing and ACL
IPv6 Dual IPv4/IPv6
IPv6 Interface
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs MIB II (RFC1213)
Bridge MIB (RFC1493)
P/Q-Bridge MIB (RFC2674)
Radius Accounting Client MIB (RFC2620)
Radius Authentication Client MIB (RFC2618)
Remote Ping, Traceroute MIB (RFC2925)
Support TP-Link private MIBs
RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features Web-based GUI
Command Line Interface (CLI) through telnet
SNMPv1/v2c/v3
SNMP Trap/Inform
SDM Template
DHCP/BOOTP Client
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
EEE
SNTP
System Log
OTHER
Certification CE, FCC, RoHS
Package Contents SG2218
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet
System requirements Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0–45℃ (32–113℉);
Storage Temperature: -40–70℃ (-40–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
