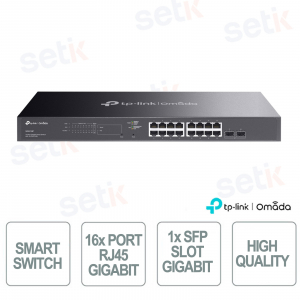

SG2218 | SWITCH INDUSTRIALE 20 PORTE GIGABIT - TPLINK OMADA

Il TP-Link Omada SG2218 è uno switch smart Gigabit a 18 porte con 16 porte LAN e 2 slot SFP, ideale per reti aziendali ad alte prestazioni. Alimenta access point, telecamere IP e dispositivi di rete in modo sicuro ed efficiente. Con una capacità di switching di 36 Gbps e funzioni avanzate come VLAN, QoS, ACL, IGMP Snooping e routing statico, assicura gestione ottimale del traffico. Il design fanless con scocca in metallo rackmount garantisce affidabilità e silenziosità, mentre la piattaforma Omada SDN offre gestione cloud centralizzata, monitoraggio intelligente e configurazioni semplificate.
Specifiche principali:
- 18 porte totali: 16 Gigabit LAN e 2 slot SFP
- Switching capacity 36 Gbps e forwarding rate 26.8 Mpps
- Funzioni avanzate: VLAN, ACL, QoS, IGMP Snooping, routing statico
- Gestione cloud Omada SDN e design fanless rackmount
Ulteriori dettagli
Scheda tecnica
Model | SG2218 |
CARATTERISTICHE HARDWARE | |
Interfaccia | 16× 10/100/1000 Mbps RJ45 Ports 2× Gigabit SFP Slot |
Numero ventole | Fanless Design |
Alimentazione | 100-240V AC, 50/60Hz |
Dimensioni ( L x P x A ) | 17.3×7.1×1.7 in (440×180×44 mm) |
Tipo di montaggio | Rack Mountable |
Max. Power Consumption | 12.3 W (220 V/50 Hz) |
Max. Heat Dissipation | 41.97 BTU/hr |
PRESTAZIONI | |
Capacità di switching | 36 Gbps |
Packet Forwarding Rate | 26,8 Mpps |
Tabella ARP | 8K |
Buffer (pacchetti) | 4 Mbit |
Jumbo frame | 9 KB |
CARATTERISTICHE SOFTWARE | |
QoS (Quality of Service) | 802.1p DSCP Priority 8 Priority Queues Priority Schedule Mode WRR (Weighted Round Robin) Queue Weight Config Bandwidth Control Port-Based Rate Limit Storm Control Multiple Control Modes (kbps/pps) Broadcast/Multicast/Unknown-Unicast Control |
Funzionalità L2 e L2+ | 32 IP Interfaces: Support IPv4/IPv6 Interface Static Routing: 32 IPv4/IPv6 Static Routes DHCP Server DHCP Relay DHCP Interface Relay DHCP VLAN Relay DHCP L2 Relay Static ARP Proxy ARP Gratuitous ARP Link Aggregation Spanning Tree Protocol Loopback Detection 802.3x Flow Control Mirroring Device Link Detect Protocol (DLDP) 802.1ab LLDP/ LLDP-MED |
L2 Multicast | 511 IPv4, IPv6 shared multicast groups IGMP Snooping Multicast VLAN Registration (MVR) Multicast Filtering Limited IP Multicast (256 profiles and 16 entries per profile) |
Caratteristiche avanzate | Automatic Device Discovery Batch Configuration Batch Firmware Upgrading Intelligent Network Monitoring Abnormal Event Warnings Unified Configuration Reboot Schedule |
VLAN | MTU VLAN Max. 4K VLAN Groups 802.1Q Tag VLAN MAC VLAN: 12 Entries GVRP Voice VLAN |
ACL (Access Control List) | Support up to 230 entries Time-based ACL MAC ACL IP ACL IPv6 ACL Combined ACL Rule Operation: Permit/Deny Policy Action Mirroring Redirect Rate Limit QoS Remark ACL Rules Binding Port Binding VLAN Binding |
Sicurezza | IP-MAC-Port Binding AAA 802.1X Port-based authentication MAC (Host) based authentication Authentication Method includes PAP/EAP-MD5 MAB Guest VLAN Support Radius authentication and accountability IP/IPv6-MAC Binding 512 Binding Entries DHCP Snooping DHCPv6 Snooping ARP Inspection ND Detection IP Source Guard 253 Entries Source IP+Source MAC IPv6 Source Guard 183 Entries Source IPv6 Address+Source MAC DoS Defend Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode Port Isolation Secure web management through HTTPS with SSLv3/TLS 1.2 Secure Command Line Interface (CLI) management with SSHv1/SSHv2 IP/Port/MAC-based access control |
IPv6 | IPv6 Static Routing and ACL IPv6 Dual IPv4/IPv6 IPv6 Interface Multicast Listener Discovery (MLD) Snooping IPv6 neighbor discovery (ND) Path maximum transmission unit (MTU) discovery Internet Control Message Protocol (ICMP) version 6 TCPv6/UDPv6 IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
MIBs | MIB II (RFC1213) Bridge MIB (RFC1493) P/Q-Bridge MIB (RFC2674) Radius Accounting Client MIB (RFC2620) Radius Authentication Client MIB (RFC2618) Remote Ping, Traceroute MIB (RFC2925) Support TP-Link private MIBs RMON MIB(RFC1757, rmon 1,2,3,9) |
GESTIONE | |
Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller |
Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller |
Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
Management Features | Web-based GUI Command Line Interface (CLI) through telnet SNMPv1/v2c/v3 SNMP Trap/Inform SDM Template DHCP/BOOTP Client Dual Image, Dual Configuration CPU Monitoring Cable Diagnostics EEE SNTP System Log |
ALTRO | |
Certificazione | CE, FCC, RoHS |
Contenuto della confezione | SG2218 Power Cord Installation Guide Rackmount Kit Rubber Feet |
Requisiti di sistema | Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
Ambiente | Operating Temperature: 0–45 ℃ (32–113 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
