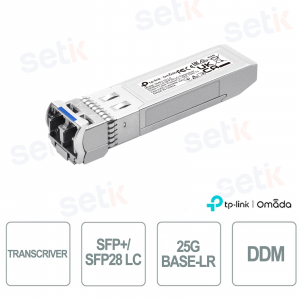

TP-Link Omada SM6110-LR SFP28 | 25G/10G LR transceiver on single-mode fiber up to 10 km

TP-Link Omada SM6110-LR SFP28 | 25G/10G LR transceiver on single-mode fiber up to 10 km

nuevo

The TP-Link Omada SM6110-LR is a QSFP28 transceiver module offering 10G and 25G Ethernet connections up to 10 km over 9/125µm single-mode fiber, ensuring high performance and maximum reliability. Designed with a duplex LC interface, it supports digital diagnostic monitoring (DDM) and integrates Clock & Data Recovery functions for stable transmission. With low power consumption ≤1.2W and compatibility with IEEE standards and protocols such as eCPRI and CPRI, it ensures efficiency and flexibility. The hot-swappable design facilitates installation, making it ideal for data centers, enterprise networks, and cloud applications. CE, FCC, and RoHS certified, it is a safe and regulatory-compliant solution. Omada

Technical Data Sheet

referencia : SM6110-LR

brand : OMADA

EAN: 8885020622355

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SM6110-LR | QSFP28 MODULE WITH 10G AND 25G ETHERNET CONNECTIONS UP TO 10KM


Made Omada

The TP-Link Omada SM6110-LR SFP28 transceiver is designed to provide 10G and 25G Ethernet connections up to 10km over single-mode fiber, offering maximum performance, reliability, and low power consumption. With DDM support and a hot-swappable design, it easily integrates into enterprise networks and data centers, ensuring stability and compatibility with major industry standards.

Main specifications:

- 10G/25G connections up to 10 km on 9/125 µm fiber

- Low power consumption ≤ 1.2 W with 3.3 V power supply

- Support for Digital Diagnostic Monitoring (DDM) and integrated CDR

- Duplex LC connector, IEEE 802.3cc/ae standard, CE, FCC, RoHS

- Hot-swappable design for maximum flexibility

Further details

Single-mode SFP+/SFP28 LC:
It uses 9/125 µm single-mode optical fiber with a duplex LC connector, supporting speeds up to 25.78 Gbps and ensuring stable transmissions up to 10 km. This feature makes it perfect for long-distance networks with high reliability and low latency.
DDM (Digital Diagnostic Monitoring) :
It integrates an advanced diagnostic monitoring system that allows real-time monitoring of key parameters such as optical power, temperature, and voltage, facilitating proactive network management and reducing the risk of malfunctions.
Hot-Pluggable:
The hot-swappable design allows module installation and replacement without interrupting network operation, providing maximum flexibility and reducing downtime in critical environments such as data centers and enterprise infrastructure.

Technical data sheet

Model SM6110-LR
TRANSCRIBER
Standards & Protocols IEEE 802.3ae, 802.3cc
SFF-8402, SFF-8431, SFF-8432, SFF-8472
CPRI, eCPRI
TCP/IP
Wave Length 1310 nm
Diet 3.3V
Fiber Type 9/125um Single-Mode
Max. cable length 10 km
Connector Duplex LC/UPC
Regulatory Compliance CE, FCC, RoHS
Environment Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 10% to 90% RH, Non-Condensing
Storage Humidity: 5% to 90% RH, Non-Condensing
HARDWARE FEATURES
DDM Yes
QSFP28 MSA Yes
Hot Swappable Yes
Dimensions (L x W x H) 2.24*0.55*0.47 in (57*14*12 mm)
PACKAGE CONTENT
Package Content SM6110-LR
Installation Guide
SFP28 Cable
Data Rate Dual Rate 25.78 Gbps and 10.31 Gbps
