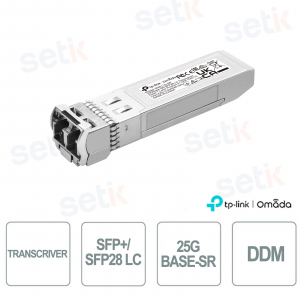

TP-Link Omada SM6110-SR SFP28 | 25G/10G Transceiver on Multimode Fiber

TP-Link Omada SM6110-SR SFP28 | 25G/10G Transceiver on Multimode Fiber

nuevo

The TP-Link Omada SM6110-SR is a transceiver module The SFP28 is designed for high-performance 10G and 25G Ethernet connections over multimode fiber, ensuring reliability and low power consumption. With DDM support for diagnostic monitoring and a hot-swappable design, it offers maximum management flexibility. Thanks to the duplex LC connector and support for IEEE 802.3by/ae standards, it ensures compatibility with major network switches. Transmission ranges reach up to 100 m on OM4 and 300 m on OM3, making it ideal for data centers and modern enterprise networks. CE, FCC, and RoHS certified, it combines security, efficiency, and high stability. Omada

Technical Data Sheet

referencia : SM6110-SR

brand : OMADA

EAN: 8885020622331

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

SM6110-SR | SFP28 MODULE WITH 10G AND 25G ETHERNET CONNECTIONS UP TO 10KM


Made Omada

The TP-Link Omada SM6110-SR SFP28 transceiver is the ideal solution for 10G/25G Ethernet connections over multimode fiber, ensuring maximum reliability, low power consumption, and compatibility with major network standards. With DDM support and a hot-swappable design, it offers advanced monitoring and easy installation, making it perfect for data centers and modern enterprise infrastructures.

Main specifications:

- 10G/25G Multimode SFP28 Transceiver with Duplex LC Connector

- DDM support for real-time diagnostic monitoring

- Hot-Pluggable design for quick installation and replacement

- Power consumption ≤ 1 W with 3.3 V power supply

- Distance up to 300 m on OM3 fiber and 100 m on OM4

Further details

Single-mode SFP+/SFP28 LC:
Featuring a duplex LC interface, this SFP28 module supports 10G and 25G fiber optic connections, offering stable transmission and compatibility with industry standards. Its design allows for simple and secure installation in high-performance network infrastructures.
DDM (Digital Diagnostic Monitoring) :
Includes digital diagnostic monitoring that allows for real-time monitoring of parameters such as signal strength, temperature, and voltage. This feature enables proactive network management, reducing the risk of failure and improving system reliability.
Hot-Pluggable:
Thanks to its hot-swappable design, it can be inserted or replaced without interrupting network service. This feature offers great operational flexibility and minimizes downtime, making it ideal for critical environments such as data centers and corporate networks.

Technical data sheet

Model SM6110-SR
TRANSCRIBER
Standards & Protocols IEEE 802.3ae, 802.3cc
SFF-8402, SFF-8431, SFF-8432, SFF-8472
CPRI, eCPRI
TCP/IP
Wave Length 850 nm
Diet 3.3V
Fiber Type 50/125um or 62.5/125um Multi-mode
Max. cable length 70m (OM3) @25.78Gbps, 100m (OM4) @25.78Gbps, 300m (OM3) @10.31Gbps
Connector Duplex LC/UPC
Regulatory Compliance CE, FCC, RoHS
Environment Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating Humidity: 10% to 90% RH, Non-Condensing
Storage Humidity: 5% to 90% RH, Non-Condensing
HARDWARE FEATURES
DDM Yes
QSFP28 MSA Yes
Hot Swappable Yes
Dimensions (L x W x H) 2.24*0.55*0.47 in (57*14*12 mm)
PACKAGE CONTENT
Package Content SM6110-SR
Installation Guide
SFP28 Cable
Data Rate Dual Rate 25.78 Gbps and 10.31 Gbps
