The TP-Link Omada SM5110-LR(8-pack) - 8 pieces - SFP+ is a module designed to ensure high-speed 10G Ethernet connections up to 10 km over single-mode fiber, offering maximum stability and professional performance. Compatible with the SFP+ MSA and IEEE 802.3ae standards, it integrates the DDM system for real-time digital diagnostic monitoring and ensures ease of use thanks to the Hot-Swappable design, which allows installation and replacement without service interruption. With optimized power consumption and support for transmissions up to 10.3125 Gbps, it represents a reliable and secure solution for data centers and next-generation enterprise networks. Omada
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

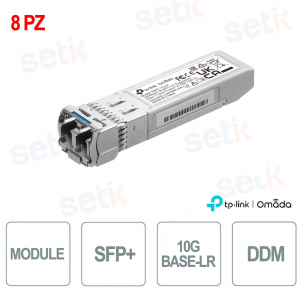

SM5110-LR (8-pack) | SFP+ MODULE WITH ETHERNET CONNECTIONS UP TO 10KM - 8 PIECES

The TP-Link Omada SM5110-LR(8-pack) - 8 pieces - SFP+ transceiver is a reliable solution for 10G Ethernet connections over single-mode fiber up to 10 km, ideal for data centers and enterprise networks that require high speeds and stability. Compatible with the SFP+ MSA and IEEE 802.3ae standards, it integrates the DDM system for digital diagnostic monitoring and supports Hot-Swappable technology , which allows installation and replacement without service interruption. With transmission speeds of up to 10.3125 Gbps and optimized power consumption, it offers professional performance in complete safety.
Main specifications:
- Transmission speeds up to 10.3 Gbps over single-mode fiber
- Operating distance up to 10 km
- Digital Diagnostic Monitoring (DDM) support
- Hot-Swappable design for quick and safe replacement
- Compatible with SFP+ MSA and IEEE 802.3ae standards
- 8 pieces
Further details
Technical data sheet
Model | SM5110-LR |
TRANSCRIBER | |
Standards & Protocols | IEEE 802.3ae, TCP/IP |
Wave Length | 1310 nm |
Diet | 3.3V |
Fiber Type | 9/125um Single-Mode |
Max. cable length | 10 km |
Data transmission speed | 10 Gbps |
Connector | LC Duplex |
Regulatory Compliance | FCC, CE |
Environment | Operating Temperature: 0°C to 70°C (32°F to 158°F) Storage Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 90% RH, Non-Condensing Storage Humidity: 5% to 90% RH, Non-Condensing |
HARDWARE FEATURES | |
DDM | Yes |
QSFP28 MSA | Yes |
Hot Swappable | Yes |
MEDIA CONVERTER & MODULE | |
Dimensions (L x W x H) | 2.2*0.5*0.4 in (56.7*13.9*10.35 mm) |
PACKAGE CONTENT | |
Package Content | SM5110-LR(8-pack) Installation Guide |
