The TP-Link Omada SM5110-LR(8-pack) - 8 pieces - SFP+ is a module designed to ensure high-speed 10G Ethernet connections up to 10 km over single-mode fiber, offering maximum stability and professional performance. Compatible with the SFP+ MSA and IEEE 802.3ae standards, it integrates the DDM system for real-time digital diagnostic monitoring and ensures ease of use thanks to the Hot-Swappable design, which allows installation and replacement without service interruption. With optimized power consumption and support for transmissions up to 10.3125 Gbps, it represents a reliable and secure solution for data centers and next-generation enterprise networks. Omada
CLEARANCE SALE ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

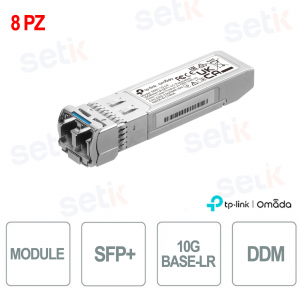

SM5110-LR (8-pack) | SFP+ MODULE WITH ETHERNET CONNECTIONS UP TO 10KM - 8 PIECES

The TP-Link Omada SM5110-LR(8-pack) - 8 pieces - SFP+ transceiver is a reliable solution for 10G Ethernet connections over single-mode fiber up to 10 km, ideal for data centers and enterprise networks that require high speeds and stability. Compatible with the SFP+ MSA and IEEE 802.3ae standards, it integrates the DDM system for digital diagnostic monitoring and supports Hot-Swappable technology , which allows installation and replacement without service interruption. With transmission speeds of up to 10.3125 Gbps and optimized power consumption, it offers professional performance in complete safety.
Main specifications:
- Transmission speeds up to 10.3 Gbps over single-mode fiber
- Operating distance up to 10 km
- Digital Diagnostic Monitoring (DDM) support
- Hot-Swappable design for quick and safe replacement
- Compatible with SFP+ MSA and IEEE 802.3ae standards
- 8 pieces
Further details
Technical data sheet
| Model | SM5110-LR |
| TRANSCRIBER | |
| Standards & Protocols | IEEE 802.3ae, TCP/IP |
| Wave Length | 1310 nm |
| Diet | 3.3V |
| Fiber Type | 9/125um Single-Mode |
| Max. cable length | 10 km |
| Data transmission speed | 10 Gbps |
| Connector | LC Duplex |
| Regulatory Compliance | FCC, CE |
| Environment | Operating Temperature: 0°C to 70°C (32°F to 158°F) Storage Temperature: -40°C to 85°C (-40°F to 185°F) Operating Humidity: 10% to 90% RH, Non-Condensing Storage Humidity: 5% to 90% RH, Non-Condensing |
| HARDWARE FEATURES | |
| DDM | Yes |
| QSFP28 MSA | Yes |
| Hot Swappable | Yes |
| MEDIA CONVERTER & MODULE | |
| Dimensions (L x W x H) | 2.2*0.5*0.4 in (56.7*13.9*10.35 mm) |
| PACKAGE CONTENT | |
| Package Content | SM5110-LR(8-pack) Installation Guide |
