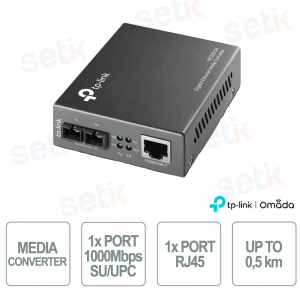

TP-Link MC200CM: Gigabit Multi-Mode Media Converter up to 550m

TP-Link MC200CM: Gigabit Multi-Mode Media Converter up to 550m

 
nuevo

The TP-Link MC200CM is a multi-mode Gigabit media converter designed to connect fiber optics and copper simply and securely, ensuring high performance in business and professional networks. Compatible with IEEE 802.3i, 802.3u, 802.3ab, and 802.3z standards, it supports a 1000Mbps SC port and a 10/100/1000Mbps RJ45 port for maximum flexibility. It allows transmission over multi-mode fiber up to 550 meters with a wavelength of 850nm, ensuring stability and constant speed. Thanks to LED indicators, it offers immediate monitoring of the network status, while the compact design makes it suitable for both standalone use and integration into the TL-MC1400 chassis. With a low power consumption of only 1.66W and CE and FCC certifications, it represents an efficient and reliable solution for the expansion of professional networks.

Technical Data Sheet

referencia : MC200CM

brand : OMADA

EAN: 6935364030438

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

MC200CM| MEDIA CONVERTER 1000BASE-SX/1000BASE-T, MULTIMODE, SC OMADA TP-LINK


Made Omada

The TP-Link MC200CM is a multi-mode Gigabit media converter designed to connect fiber optic and copper networks, ensuring high performance and reliability in business and professional infrastructures. It supports IEEE 802.3i, 802.3u, 802.3ab and 802.3z standards, ensuring universal compatibility. With a 1000Mbps SC port and a 10/100/1000Mbps RJ45 port, it offers flexible connections and stable speeds up to 550 meters on multi-mode fiber. Thanks to the LED indicators, network monitoring is simple and immediate, while the compact design and low power consumption (1.66W) make it an efficient solution and easy to integrate into the TL-MC1400 chassis.

Main specifications:

- Compatibility with IEEE 802.3i/802.3u/802.3ab/802.3z standards

- SC 1000Mbps and RJ45 10/100/1000Mbps port

- Multi-mode fiber transmission up to 550 m (850nm)

- LED for real-time network monitoring

- Low consumption 1.66W, CE and FCC certifications

Further details

✅ Standards Compatibility

It supports IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3z, ensuring broad interoperability with existing devices and networks, ensuring reliability and universal compatibility.
✅ Interfaces
It features a 1000Mbps SC port for fiber optics and a 10/100/1000Mbps RJ45 port , allowing maximum flexibility in integrating fiber and copper.
✅ FX Port Configuration
The FX port dedicated to the fiber connection allows for optimal management of data traffic, ensuring continuity and reducing losses in short-range connections.
✅ Fiber optic connections up to 0.5 km
Supporting multi-mode fiber (50/125 μm up to 550 m and 62.5/125 μm up to 220 m) with a wavelength of 850nm, it ensures stable and fast transmissions in local area network scenarios and corporate campuses.

Technical data sheet

Model MC200CM
MEDIA CONVERTER & MODULE
Standards & Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic features Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 0.55km using 50/125um fiber
Extends fiber distance up to 0.22km using 62.5/125um fiber
Doors 1 1000M SC/UPC port
1 1000M RJ45 port (Auto MDI/MDIX)
Wavelength 850nm
Network Media 1000BASE-SX Multi-mode Fiber
Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Dimensions (L x W x H) 3.7*2.9*1.1in. (94.5*73.0*27.0mm)
Diet External Power Adapter
Maximum energy consumption 1.66W
LED PWR, LINK, RX
Safety & Emissions FCC, CE, RoHS
Package Content Media Converter MC200CM
Power Adapter
Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
