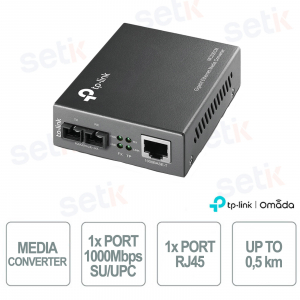

TP-Link MC200CM: Gigabit Multi-Mode Media Converter up to 550m

TP-Link MC200CM: Gigabit Multi-Mode Media Converter up to 550m

New

The TP-Link MC200CM is a multi-mode Gigabit media converter designed to connect fiber optics and copper simply and securely, ensuring high performance in business and professional networks. Compatible with IEEE 802.3i, 802.3u, 802.3ab, and 802.3z standards, it supports a 1000Mbps SC port and a 10/100/1000Mbps RJ45 port for maximum flexibility. It allows transmission over multi-mode fiber up to 550 meters with a wavelength of 850nm, ensuring stability and constant speed. Thanks to LED indicators, it offers immediate monitoring of the network status, while the compact design makes it suitable for both standalone use and integration into the TL-MC1400 chassis. With a low power consumption of only 1.66W and CE and FCC certifications, it represents an efficient and reliable solution for the expansion of professional networks.

Technical Data Sheet

Reference: MC200CM

Brand: OMADA

EAN: 6935364030438

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

A key aspect of OMADA is its ability to offer centralised management. This can be done through a dedicated hardware controller, a software controller, or the Omada SDN cloud service, which enables centralised management of networks. The solutions offered are scalable and flexible, making them suitable for both small corporate networks and large multi-site deployments.

OMADA includes wireless solutions with high-performance Wi-Fi access points, ensuring reliable, high-speed coverage. In addition, it offers managed switches and gateway routers with advanced traffic management, security and quality of service (QoS) features.

Security is another strong point of OMADA's solutions, which include advanced features such as firewalls, VPNs and access control to protect corporate networks. In addition, OMADA's cloud platform enables remote configuration and monitoring of networks, offering great flexibility in IT management.

For businesses, OMADA provides a solution that can reduce operating costs through centralised management that simplifies network maintenance. High-quality hardware components ensure stable and reliable performance, while intuitive interfaces and management tools make network administration easier even for non-technical staff.

OMADA's core products include indoor and outdoor access points with advanced technologies such as Wi-Fi 6, managed switches with Layer 2 and Layer 3 capabilities, and security and routing devices for network traffic management and threat protection. OMADA solutions are commonly used in corporate offices to manage internal networks, in schools and universities to provide Wi-Fi connections for students and staff, and in hotels to offer a stable and fast Internet connection to guests.

[short_description] =>

Tp-Link Omada

OMADA is a TP-Link brand of enterprise network management solutions. The OMADA system includes both hardware and software designed to centralise the management of wireless networks, switching and gateways. This approach is designed to improve the control and management of network infrastructures, particularly in enterprise environments.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

MC200CM| MEDIA CONVERTER 1000BASE-SX/1000BASE-T, MULTIMODE, SC OMADA TP-LINK


Made Omada

The TP-Link MC200CM is a multi-mode Gigabit media converter designed to connect fiber optic and copper networks, ensuring high performance and reliability in business and professional infrastructures. It supports IEEE 802.3i, 802.3u, 802.3ab and 802.3z standards, ensuring universal compatibility. With a 1000Mbps SC port and a 10/100/1000Mbps RJ45 port, it offers flexible connections and stable speeds up to 550 meters on multi-mode fiber. Thanks to the LED indicators, network monitoring is simple and immediate, while the compact design and low power consumption (1.66W) make it an efficient solution and easy to integrate into the TL-MC1400 chassis.

Main specifications:

- Compatibility with IEEE 802.3i/802.3u/802.3ab/802.3z standards

- SC 1000Mbps and RJ45 10/100/1000Mbps port

- Multi-mode fiber transmission up to 550 m (850nm)

- LED for real-time network monitoring

- Low consumption 1.66W, CE and FCC certifications

Further details

Standards Compatibility

It supports IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3z, ensuring broad interoperability with existing devices and networks, ensuring reliability and universal compatibility.
Interfaces
It features a 1000Mbps SC port for fiber optics and a 10/100/1000Mbps RJ45 port , allowing maximum flexibility in integrating fiber and copper.
FX Port Configuration
The FX port dedicated to the fiber connection allows for optimal management of data traffic, ensuring continuity and reducing losses in short-range connections.
Fiber optic connections up to 0.5 km
Supporting multi-mode fiber (50/125 μm up to 550 m and 62.5/125 μm up to 220 m) with a wavelength of 850nm, it ensures stable and fast transmissions in local area network scenarios and corporate campuses.

Technical data sheet

Model MC200CM
MEDIA CONVERTER & MODULE
Standards & Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
Basic features Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Extends fiber distance up to 0.55km using 50/125um fiber
Extends fiber distance up to 0.22km using 62.5/125um fiber
Doors 1 1000M SC/UPC port
1 1000M RJ45 port (Auto MDI/MDIX)
Wavelength 850nm
Network Media 1000BASE-SX Multi-mode Fiber
Network Media 1000BASE-T UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Dimensions (L x W x H) 3.7*2.9*1.1in. (94.5*73.0*27.0mm)
Diet External Power Adapter
Maximum energy consumption 1.66W
LED PWR, LINK, RX
Safety & Emissions FCC, CE, RoHS
Package Content Media Converter MC200CM
Power Adapter
Installation Guide
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
