Dahua AWA6220-O Outdoor Wi-Fi 6: Stable and Secure Connection

Dahua AWA6220-O Outdoor Wi-Fi 6: Stable and Secure Connection

-57% nuevo

AWA6220-O - The outdoor Wi-Fi 6 access point ensures ultra-fast wireless connections up to 2.4 Gbps , ideal for high-density outdoor spaces such as hotels, campuses and commercial areas. Equipped with internal dual-radio antennas with support for external antennas and advanced MU-MIMO and OFDMA technologies, it offers stable coverage and intelligent traffic management. The Gigabit SFP optical port, IP68 water and dust resistant design and wide temperature range of –30 °C to +55 °C ensure extreme reliability even in harsh conditions. Advanced security with WPA3 encryption, 802.1X authentication and MAC filtering, while remote management via HTTP(S), SSH and SNMP simplifies network administration. Dahua

Technical Data Sheet

referencia : AWA6220-O

brand : Dahua

EAN: 6923172533753

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

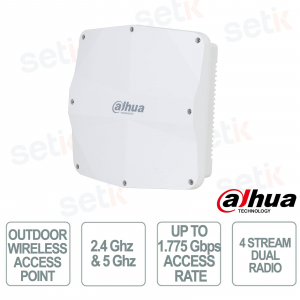

AWA6220-O | OUTDOOR WALL-MOUNTED WIRELESS ACCESS POINT


Dahua

The Dahua AWA6220-O outdoor Wi-Fi 6 access point offers high-performance wireless connections up to 2.4 Gbps, perfect for complex outdoor spaces such as campuses, hotels, and commercial areas. Thanks to MU-MIMO and OFDMA dual-radio technology, it ensures stable coverage and intelligent bandwidth management even with many connected users. The IP68 water and dust resistant design, operating range from -30°C to +55°C, and the Gigabit SFP optical port ensure reliability and flexible installations.

Main specifications:

- Speeds up to 2.4Gbps with Wi-Fi 6 and MU-MIMO/OFDMA support

- Weatherproof with IP68 protection and wide temperature range

- Internal directional antennas with support for external antennas

- Gigabit RJ-45 and SFP ports for wired and fiber optic connections

- Advanced WPA3 security, 802.1X authentication and SNMP remote management

Further details

Connection ports:
Equipped with 2 Gigabit RJ-45 Ethernet ports for fast and reliable wired connections, a Gigabit SFP port for high-performance fiber optic connection and an RJ-45 console port for direct and simplified device management.
Antennas :
It integrates internal high-gain directional antennas (11 dBi on both 2.4 GHz and 5 GHz) with wide coverage and the option to connect additional external antennas to further extend the signal. MU-MIMO and OFDMA technology ensure stable simultaneous connections and high performance even in high-density device scenarios.
Software specifications:
Compliant with the latest 802.11a/b/g/n/ac/ax standards , it supports advanced features such as fast roaming (802.11k/v/r) for seamless connections, intelligent QoS to manage traffic prioritization, and enhanced security with WPA3, 802.1X authentication, MAC filtering and user isolation. It also includes complete remote management via HTTP(S), SSH, Telnet and SNMP, as well as automatic channel, power and bandwidth optimization for a constantly performing network .

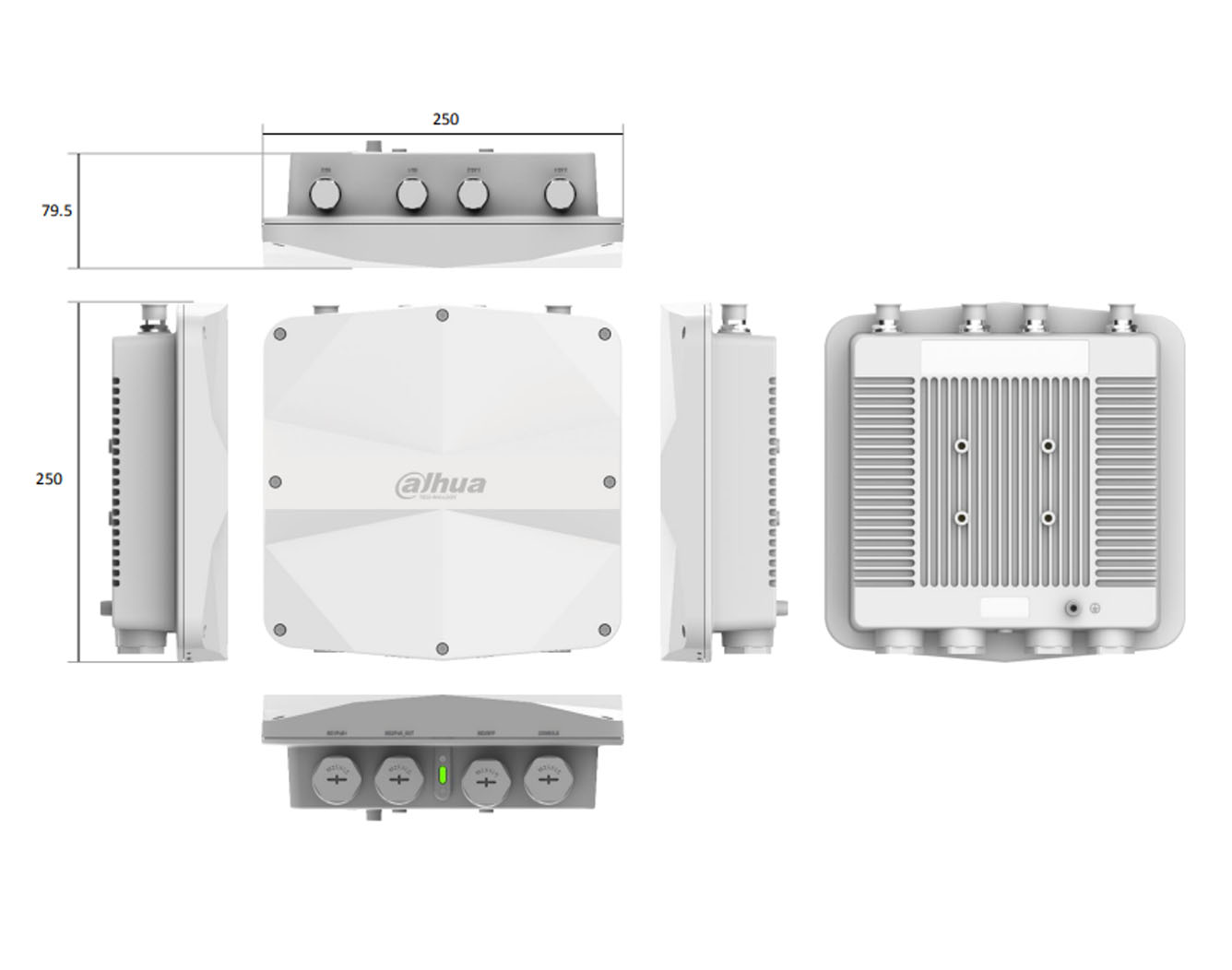

AWA6220-O dimensions

Technical data sheet

Model AWA6220-O
Hardware
Weight (excluding mounting accessories)

1.8 kg (3.97 lb)

Dimensions (excluding mounting and accessories)

250 mm x 250 mm x 79.5 mm (9.84" × 9.84" × 3.13") (L × W × H)

Ethernet Ports

2 × 100M/1000M Base-T RJ-45
1 × 100M/1000M Base-X SFP
1 × Console port (RJ-45)

Antenna

Internal directional antenna, antenna gain: 11 dBi@2.4G/11 dBi@5G/ Horizontal beamwidth (HBW): 65 degrees
Vertical beamwidth (VBW): 30 degrees
Support extended external antenna

Working Frequencies

802.11ax/ac/n/a: 5.725 GHz–5.850 GHz; 5.47GHz–5.725GHz; 5.15GHz–5.35GHz
802.11ax/b/g/n: 2.4 GHz–2.483 GHz

Modulation Mode

11b: DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps
11a/d: OFDM: 64QAM@48/54 Mbps, 16QAM@24 Mbps, QPSK@12/18 Mbps, BPSK@6/9 Mbps
11n: MIMO-OFDM: BPSK, QPSK,16QAM, 64QAM
11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM
11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Maximum Transmit Power 2.4 GHz: 27 dBm
5 GHz: 24 dBm
Reset/Restoration To Factory Default Yes
State LED Alternating flashing mode, orange/green/blue for different working states, breathing mode
Environment Outdoor
Working Temperature –30 °C to 55 °C (–22 °F to 131 °F )
Storage Temperature –40 °C to 70 °C(–40 °F to +158 °F)
Working Humidity 0%–100% (non-condensing)
Storage Humidity 0%–100% (non-condensing)
Protection Class IP68
EMC CE EMC, CE RED
MTBF

>50000H

Software specifications

Compliance

compliant with 802.11a/b/g/n/ac/ax

Working Frequencies and MIMO

5GHz 2×2:2 MU-MIMO 1.2Gbps
2.4 GHz, 2 × 2:2 MU-MIMO 0.575 Gbps or
5 GHz (1) 2 × 2:2 MU-MIMO 1.2 Gbps
5 GHz (2) 2 × 2:2 MU-MIMO 1.2 Gbps dual 5G mode

Bandwidth

20MHz/40MHz/80MHz

WLAN Basics

Maximum number of clients per radio:512
Virtual APs:32
Open system/shared key authentication
Broadcast probe request acknowledge control
Concurrent login of WPA, WPA2,WPA3 and Pre-RSNA users
RTS/CTS
CTS-to-self
802.11k and 802.11v smart roaming
802.11r fast transition roaming
Advanced Traffic Management
Restrict low rate/sticky terminals access
Channel reuse
Receiver sensitivity adjustment
Automatic channel/power/bandwidth adjustment
Hide SSID
Hotspot 2.0

Security Policy

WEP-64/128/152bit, dynamicWEP, TKIP, AES, EAP, CCMP, WPA3, OWE
Multiple triggering conditions for unicast and broadcast key update
Support 802.11i
802.1X authentication, MAC authentication, PSK authentication, Portal authentication, PPSK
Layer 2 user isolation
SSID-based user isolation
Packet filtering
MAC address filtering
Broadcast storm suppression
Wireless EAD
SSID and VLAN binding
WIDS/WIPS
Rogue device detection and countermeasure
Dynamic ARP Inspection
IP Source Guard (IPSG)
Management frame protection (802.11w)

AAA

RADIUS client
Multiple-domain authentication server
Backup authentication server

Layer 2 and Layer 3 Features IP address configuration: Static IP (available only in fat AP mode)/DHCP assigned IP (Option 60)
IPV6: Native IPv6/IPv6 Portal/IPv6 SAVI
ACL: IPv4/IPv6
Local forwarding based on SSID and VLAN
Link Layer Discovery Protocol (LLDP)
SSID-based VLAN assignment
EoGRE Tunnel
Multicast: IGMP Snooping/MLD Snooping
QoS

802.11e:Wi-Fi Multimedia (WMM)
802.1p priority and marking on Ethernet ports
Priority mapping for wired and wireless packets
SSID/VLAN and QoS policy mapping
Layer 2 to Layer 4 packet filtering and traffic classification
CAR
Client bandwidth management
Traffic-based load balancing
Session-based load balancing
Frequency-based load balancing (supports dual-band)
Band navigation (5G priority)
Multicast optimization (IPv4/IPv6)
Call Admission Control (CAC)
Airtime optimization
Airtime fairness
Layer 4-7 application identification
SVP Phone

Management and Maintenance

AP Working Mode: Fit/Fat
Network management:Trap, HTTP(S), SSH, Telnet, FTP/TFTP, SNMP V1/V2/V3 only applicable in Fat mode
SSID Management
Syslog
Remote probing and analysis
