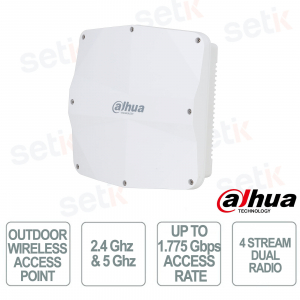

AWA6220-O | ACCESS POINT WIRELESS DA ESTERNO DA PARETE

L’Access Point Wi-Fi 6 outdoor Dahua AWA6220-O offre connessioni wireless ad alte prestazioni fino a 2,4 Gbps, perfette per spazi esterni complessi come campus, hotel e aree commerciali. Grazie alla tecnologia dual-radio MU-MIMO e OFDMA, garantisce copertura stabile e gestione intelligente della banda anche con molti utenti connessi. Il design IP68 resistente ad acqua e polvere, il funzionamento da –30 °C a +55 °C e la porta ottica Gigabit SFP assicurano affidabilità e installazioni flessibili.
Specifiche principali:
- Velocità fino a 2,4 Gbps con Wi-Fi 6 e supporto MU-MIMO/OFDMA
- A prova di intemperie con protezione IP68 e ampio range di temperatura
- Antenne interne direzionali con supporto per antenne esterne
- Porte Gigabit RJ-45 e SFP per collegamenti cablati e fibra ottica
- Sicurezza avanzata WPA3, autenticazione 802.1X e gestione remota SNMP
Ulteriori dettagli

Scheda tecnica
Model | AWA6220-O |
Hardware | |
Weight (excluding mounting accessories) |
1.8 kg (3.97 lb) |
Dimensions (excluding mounting and accessories) |
250 mm x 250 mm x 79.5 mm (9.84" × 9.84" × 3.13") (L × W × H) |
Ethernet Ports |
2 × 100M/1000M Base-T RJ-45 |
Antenna |
Internal directional antenna, antenna gain: 11 dBi@2.4G/11 dBi@5G/ Horizontal beamwidth (HBW): 65 degrees |
Working Frequencies |
802.11ax/ac/n/a: 5.725 GHz–5.850 GHz; 5.47 GHz–5.725 GHz; 5.15 GHz–5.35 GHz |
Modulation Mode |
11b: DSS: CCK@5.5/11 Mbps, DQPSK@2 Mbps, DBPSK@1Mbps |
Maximum Transmit Power | 2.4 GHz: 27 dBm 5 GHz: 24 dBm |
Reset/Restoration To Factory Default | Yes |
State LED | Alternating flashing mode, orange/green/blue for different working states, breathing mode |
Enviorment | Outdoor |
Working Temperature | –30 °C to 55 °C (–22 °F to 131 °F ) |
Storage Temperature | –40 °C to 70 °C(–40 °F to +158 °F) |
Working Humidity | 0%–100% (non-condensing) |
Storage Humidity | 0%–100% (non-condensing) |
Protection Class | IP68 |
EMC | CE EMC, CE RED |
MTBF |
>50000H |
Software specifications |
|
Compliance |
compliant with 802.11a/b/g/n/ac/ax |
Working Frequencies And MIMO |
5 GHz 2 × 2: 2 MU-MIMO 1.2 Gbps |
Bandwidth |
20MHz/40MHz/80MHz |
WLAN Basics |
Maximum number of clients per radio:512 |
Security Policy |
WEP-64/128/152bit, dynamicWEP, TKIP, AES, EAP, CCMP, WPA3, OWE |
AAA |
RADIUS client |
Layer 2 And Layer 3 Features | IP address configuration: Static IP (available only in fat AP mode)/DHCP assigned IP (Option 60) IPV6: Native IPv6/IPv6 Portal/IPv6 SAVI ACL: IPv4/IPv6 Local forwarding based on SSID and VLAN Link Layer Discovery Protocol (LLDP) SSID-based VLAN assignment EoGRE Tunnel Multicast: IGMP Snooping/MLD Snooping |
QoS |
802.11e :Wi-Fi Multimedia (WMM) |
Management And Maintenance |
AP Working Mode : Fit/Fat |
