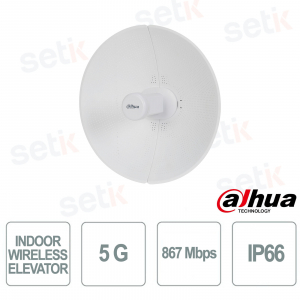

PFM886-15 - is a long-distance 5GHz wireless bridge designed for professional video and data transmission applications. Thanks to 802.11ac MIMO technology, it reaches speeds of up to 867 Mbps and stable connections up to 15 km , ensuring excellent performance even in complex environments. It supports TDMA for point-to-point and point-to-multipoint transmission, with five operating modes (Access Point, Client, WDS AP, WDS Client, WDS Repeater). The IP66 waterproof and anti-UV housing ensures resistance to atmospheric agents, while PoE power supply simplifies installation. Ideal for video surveillance, transportation, industrial infrastructure and long-range wireless networks. Dahua

Technical Data Sheet

referencia : PFM886-15

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PFM886-15 | OUTDOOR LONG RAGE 5G WIRELESS BRIDGE

Dahua

The Dahua PFM886-15 is a long-range 5GHz outdoor wireless bridge, ideal for professional applications such as video surveillance, industrial networks, and point-to-point connections. Equipped with 802.11ac MIMO technology, it offers speeds of up to 867 Mbps and a range of up to 15 km, ensuring stable and reliable transmission even in complex environments. It supports TDMA to optimize bandwidth and five operating modes for maximum flexibility (Access Point, Client, WDS AP, WDS Client, Repeater). Thanks to the IP66 waterproof and UV-resistant housing and PoE power supply, it ensures durability and easy installation in any conditions.

Main specifications:

- Wireless speed up to 867 Mbps and maximum range of 15 km

- TDMA technology for efficient multi-point transmissions

- 5 operating modes: AP, Client, WDS AP, WDS Client, Repeater

- 23 dBi directional antenna and 27 dBm output power

- IP66 water and UV resistant construction

- PoE power supply for quick and safe installation

Further details

✅ Wireless Features:
The PFM886-15 uses a high-performance 802.11ac MIMO chip , capable of ensuring stable, reliable and high-speed connections. It operates in the 5GHz band (5745–5825 MHz) , extendable from 4920 to 6100 MHz , for greater flexibility and reduced interference. With a built-in 23 dBi antenna and transmission power up to 27 dBm , it ensures coverage of up to 15 km even in complex terrain. TDMA (Time Division Multiple Access) technology optimizes bandwidth and enables smooth and continuous point-to-multipoint transmission.
✅ Hardware :
Designed for outdoor environments, the device features a waterproof and UV-resistant housing with an IP66 rating , ensuring stable operation even in extreme weather conditions. It is powered via PoE (Power over Ethernet) , simplifying installation and reducing wiring costs. It has a Gigabit RJ45 port , 3 LED indicators for signal quality , and low power consumption ( ≤25W ). Its compact design (240×Ø373 mm, 0.94 kg) allows for convenient and safe mounting.
✅ Software:
The system integrates advanced security features with 802.1x/WPA-PSK/WPA2-PSK encryption , IP/MAC filtering and SSID masking . It supports Access Point, Client, WDS AP, WDS Client and Repeater operating modes, offering wide configuration flexibility. It is compatible with the main network protocols ( TCP/UDP/HTTP/NTP/DHCP ) and has professional management tools such as SNMP, Telnet, Syslog, NTP and Access Controller . The intuitive web interface and the ability to remotely upgrade the firmware facilitate maintenance and continuous performance optimization.

Technical data sheet

Model PFM886-15
Wireless Features
Wireless Standard IEEE802.11 a/n/ac
Working Frequency 5745~5825MHz (support frequency to extend, extended range: 4920~6100MHz)
Wireless Speed 867Mbps
Modulation Mode OFDM
Antenna 23dBi
Output Power 27dBm (max)
Receiving Sensitivity 11a： 6Mbps -91 dBm 54 Mbps -72dBm
11n： MCS0 -85 dBm MCS7 -67dBm
11ac：MCS0 -85 dBm MCS9 -60dBm
Transmission Distance ≤15km
Wireless Direction Angle Horizontal 10°, vertical 10°
Hardware
Power 1*PoE RJ45 (PoE input via PoE switch or PoE adapter)
Power Consumption ≤25W
Ethernet Port 1×10/100M/1000MBase-TX (Cat. 5/5E, RJ-45)
Indicator Light 3×Link Quality
Working Temperature -30℃~+70℃
Storage Temperature -40℃~+85℃
Working Humidity 5%~95%RH (no condensation)
Equipment Dimension 240mmⅹØ373mm
Equipment Weight 0.94kg
Protection Level IP66
Software
Encryption Type 802.1x/WPA-PSK/WPA2-PSK
Network Mode Route/Network Bridge
Working Mode Access Point/Client/WDS AP/WDS client/WDS Repeater
Security Mechanism IP/MAC address filtering, hide network name
Network Protocol TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP
TDMA Enhancement Support
Auto ACK Timing Adjustment Support
Management and Log NTP, Syslog, Telnet, AC, SNMP
Webpage Configuration Management Web, SNMP, Access Controller
Firmware Update Web, Access Controller
Bandwidth Flexible Configuration 10/20/40/80MHz
