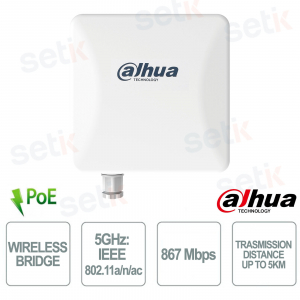

PFWB5-10ac – 5G Outdoor Wireless Bridge 5km with TDMA and MU-MIMO Technology - Dahua

PFWB5-10ac – 5G Outdoor Wireless Bridge 5km with TDMA and MU-MIMO Technology - Dahua

 
-57%

PFWB5-10ac - is a high-performance 5G outdoor wireless bridge , designed for point-to-point and point-to-multipoint connections in video surveillance networks, ISPs and industrial environments . Thanks to TDMA technology and a powered antenna, it guarantees stable transmissions up to 5 km with a bandwidth of up to 867 Mbps . IP65 protection and operation from -30 °C to +70 °C ensure reliability even in extreme climatic conditions, while the minimal WEB interface simplifies configuration. MU-MIMO support improves multi-user capacity and the 24V PoE system optimizes installation. An ideal solution for those seeking stability, efficiency and high speed in professional wireless networks . Dahua

Technical Data Sheet

referencia : PFWB5-10ac

brand : Dahua

EAN: 6939554947667

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

PFWB5-10ac | V-RADIO OUTDOOR 11ac 5G WIRELESS BRIDGE (CPE)

Dahua

The Dahua PFWB5-10ac is a next-generation 5G outdoor wireless bridge, ideal for point-to-point and point-to-multipoint connections up to 5 km, perfect for video surveillance networks, ISPs, and professional wireless infrastructures. Thanks to TDMA technology and MU-MIMO support, it ensures stable, high-speed transmissions of up to 867 Mbps, even in congested environments. IP65 protection, a powered antenna, and operation from -30°C to +70°C ensure durability and consistent performance in any climate. The minimalist web interface design and integrated PoE simplify installation and management.

Main specifications:

- Stable transmission up to 5km

- Bandwidth up to 867 Mbps

- TDMA technology for network stability

- 2x2 MU-MIMO for multiple connections

- IP65 protection against atmospheric agents

- 24V PoE and intuitive WEB interface

Further details

✅ TDMA Enhancement:
 Thanks to TDMA (Time Division Multiple Access) technology, the device stabilizes video bandwidth and reduces interference in wireless transmission. This feature improves efficiency and signal quality, avoiding delays and optimizing communication between multiple nodes, even in high-traffic networks.
✅ Wide Operating Temperature:
The PFWB5-10ac is designed to withstand extreme weather conditions, operating perfectly between –30°C and +70°C . Built-in professional lightning protection circuitry protects the system from surges and thunderstorms, making it suitable for outdoor installations in any environment.
✅ Enhanced Antenna :
The high-gain antenna allows for stable transmission up to 5 km , ensuring a strong and continuous signal even over long distances. The anti-interference structure further improves signal quality, ensuring reliable and high-performance connections in any operating scenario.
✅ Minimal WEB:
Equipped with a minimal and intuitive web interface, the device allows for quick and easy configuration. This solution optimizes installation times and simplifies management, making the entire process more efficient for installers and network technicians .
✅ MU-MIMO:
MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows multiple devices to communicate simultaneously with a single access point, improving network capacity and ensuring greater speed, stability, and flexibility in multi-user connections.
✅ PoE (Power over Ethernet) :
24V/0.5A PoE support simplifies power supply and wiring, allowing data and power to be transmitted over a single Ethernet cable. This reduces installation costs and makes the system look tidier, safer, and more professional , perfect for outdoor environments and technical infrastructure.
PFWB5-10ac dimensions

Technical data sheet

Model PFWB5-10ac
Hardware
Sold in Pairs Yes
Function Slots 1 × RJ-45 10/100/1000 Base-T
Power Supply 100 – 240 VAC
Power Consumption Full load: 10 W
Memory DDR 64 MB
Indicator Light 1 × Power light
1 × LAN light
4 × RSSI LEDs
Performance
Wireless Standard 5 GHz: IEEE 802.11a/n
Operating Frequency 5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Wireless Transmission Rate 802.11 ac@40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps;
802.11 ac@80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps
Channel Width 5/10/20/40 MHz
Max. Output Power CE EIRP:
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14 dBm@5725-5850 MHz
FCC output power:
≤24 dBm@5150-5250 MHz;
≤24 dBm@5250-5350 MHz;
≤24 dBm@5470-5725 MHz;
≤30 dBm@5725-5850 MHz
Antenna Direction Angle Horizontal: 16°, vertical: 16°
Transmission Distance 5000 m (16404.20 ft)
PoE PoE In: 24V/0.5A
PoE Out: NA
Function
Operating Mode AP (WDS)/WAP (TDMA2)/WAP(TDMA3)/Station (WDS/TDMA2/TDMA3)/Wireless client (ARPNAT)
Equipment Management Web
Encryption Mode WPA/WPA2-Personal; WPA/WPA2-Enterprise
Security Mechanism ACL; user isolation
OFDMA Yes
MU-MIMO 2 × 2
DFS Yes
DHCP Yes
Firmware Update Web update
Software DHCP server; SNMP server; NTP client; router advertisement daemon; ping watchdog
General
Operating Temperature –30 °C to +70 °C (–22 °F to +158 °F)
Storage Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity 5%–95% (RH), non-condensing
Net Weight 0.41 kg (0.90 lb)
Gross Weight 0.7 kg (1.54 lb)
Product Dimensions 185mm × 185mm × 65mm (7.28 × 7.28 × 2.55) (L × W × H)
Packaging Dimensions 200mm × 196mm × 94mm (7.87 × 7.71 × 3.70) (L × W × H)
Protection IP65
Installation Bracket mount
Certifications CE; FCC
Packing List 1 × Device;
2 × Dowel Pin;
1 × Pole Mount Bracket;
1 × Power Cord;
1 × 24V PoE Power Adapter;
1 × Quick start guide;
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
