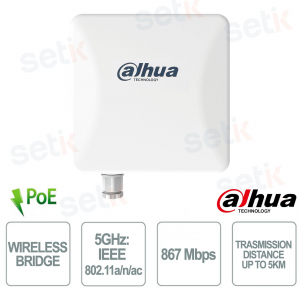

PFWB5-10ac | V-RADIO OUTDOOR 11ac 5G WIRELESS BRIDGE (CPE)

Dahua

The Dahua PFWB5-10ac is a next-generation 5G outdoor wireless bridge, ideal for point-to-point and point-to-multipoint connections up to 5 km, perfect for video surveillance networks, ISPs, and professional wireless infrastructures. Thanks to TDMA technology and MU-MIMO support, it ensures stable, high-speed transmissions of up to 867 Mbps, even in congested environments. IP65 protection, a powered antenna, and operation from -30°C to +70°C ensure durability and consistent performance in any climate. The minimalist web interface design and integrated PoE simplify installation and management.

Main specifications:

- Stable transmission up to 5km

- Bandwidth up to 867 Mbps

- TDMA technology for network stability

- 2x2 MU-MIMO for multiple connections

- IP65 protection against atmospheric agents

- 24V PoE and intuitive WEB interface

Further details

✅ TDMA Enhancement:
 Thanks to TDMA (Time Division Multiple Access) technology, the device stabilizes video bandwidth and reduces interference in wireless transmission. This feature improves efficiency and signal quality, avoiding delays and optimizing communication between multiple nodes, even in high-traffic networks.
✅ Wide Operating Temperature:
The PFWB5-10ac is designed to withstand extreme weather conditions, operating perfectly between –30°C and +70°C . Built-in professional lightning protection circuitry protects the system from surges and thunderstorms, making it suitable for outdoor installations in any environment.
✅ Enhanced Antenna :
The high-gain antenna allows for stable transmission up to 5 km , ensuring a strong and continuous signal even over long distances. The anti-interference structure further improves signal quality, ensuring reliable and high-performance connections in any operating scenario.
✅ Minimal WEB:
Equipped with a minimal and intuitive web interface, the device allows for quick and easy configuration. This solution optimizes installation times and simplifies management, making the entire process more efficient for installers and network technicians .
✅ MU-MIMO:
MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology allows multiple devices to communicate simultaneously with a single access point, improving network capacity and ensuring greater speed, stability, and flexibility in multi-user connections.
✅ PoE (Power over Ethernet) :
24V/0.5A PoE support simplifies power supply and wiring, allowing data and power to be transmitted over a single Ethernet cable. This reduces installation costs and makes the system look tidier, safer, and more professional , perfect for outdoor environments and technical infrastructure.

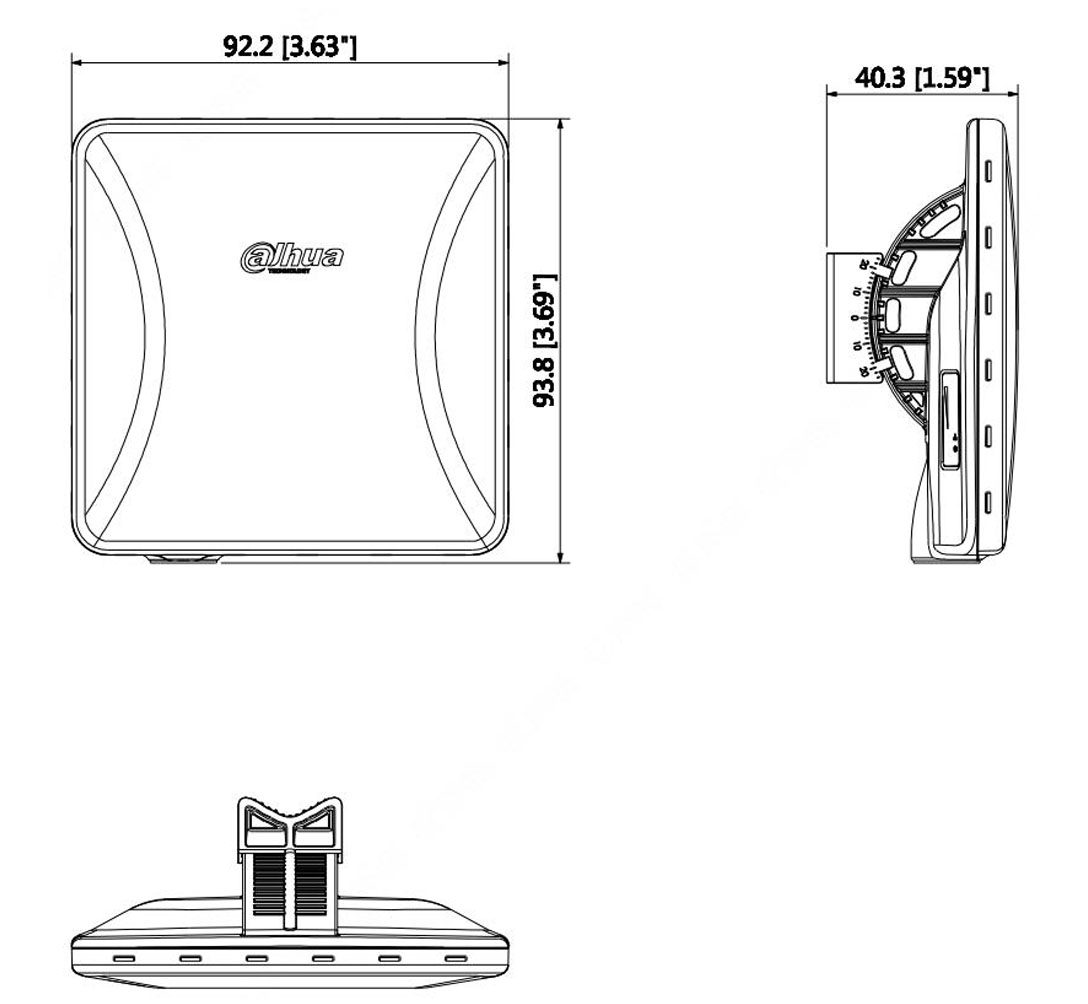

PFWB5-10ac dimensions

Technical data sheet

Model PFWB5-10ac
Hardware
Sold in Pairs Yes
Function Slots 1 × RJ-45 10/100/1000 Base-T
Power Supply 100 – 240 VAC
Power Consumption Full load: 10 W
Memory DDR 64 MB
Indicator Light 1 × Power light
1 × LAN light
4 × RSSI LEDs
Performance
Wireless Standard 5 GHz: IEEE 802.11a/n
Operating Frequency 5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Wireless Transmission Rate 802.11 ac@40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps;
802.11 ac@80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps
Channel Width 5/10/20/40 MHz
Max. Output Power CE EIRP:
≤23 dBm@5150-5250 MHz;
≤23 dBm@5250-5350 MHz;
≤27 dBm@5470-5725 MHz;
≤14 dBm@5725-5850 MHz
FCC output power:
≤24 dBm@5150-5250 MHz;
≤24 dBm@5250-5350 MHz;
≤24 dBm@5470-5725 MHz;
≤30 dBm@5725-5850 MHz
Antenna Direction Angle Horizontal: 16°, vertical: 16°
Transmission Distance 5000 m (16404.20 ft)
PoE PoE In: 24V/0.5A
PoE Out: NA
Function
Operating Mode AP (WDS)/WAP (TDMA2)/WAP(TDMA3)/Station (WDS/TDMA2/TDMA3)/Wireless client (ARPNAT)
Equipment Management Web
Encryption Mode WPA/WPA2-Personal; WPA/WPA2-Enterprise
Security Mechanism ACL; user isolation
OFDMA Yes
MU-MIMO 2 × 2
DFS Yes
DHCP Yes
Firmware Update Web update
Software DHCP server; SNMP server; NTP client; router advertisement daemon; ping watchdog
General
Operating Temperature –30 °C to +70 °C (–22 °F to +158 °F)
Storage Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity 5%–95% (RH), non-condensing
Net Weight 0.41 kg (0.90 lb)
Gross Weight 0.7 kg (1.54 lb)
Product Dimensions 185mm × 185mm × 65mm (7.28 × 7.28 × 2.55) (L × W × H)
Packaging Dimensions 200mm × 196mm × 94mm (7.87 × 7.71 × 3.70) (L × W × H)
Protection IP65
Installation Bracket mount
Certifications CE; FCC
Packing List 1 × Device;
2 × Dowel Pin;
1 × Pole Mount Bracket;
1 × Power Cord;
1 × 24V PoE Power Adapter;
1 × Quick start guide;
