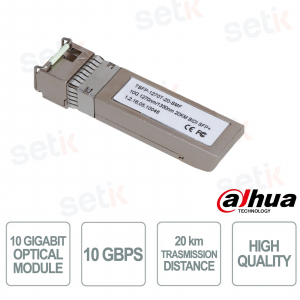

TSFP-1270R-20-SMF | 10 GIGABIT OPTICAL MODULE


Dahua

The Dahua TSFP-1270R-20-SMF is a single-mode, single-fiber 10 Gigabit optical module designed for high-speed, long-distance connections up to 20 km. Thanks to Plug and Play technology, it is easy to install without configuration, ensuring maximum compatibility and high performance. Its rugged industrial design and operating range from -40°C to +85°C ensure reliability even in extreme environments, making it ideal for telecommunications, security, energy, and automation applications.

Main specifications:

- Speed: 10 Gbps

- Transmission: up to 20 km (1270 nm send / 1330 nm receive)

- Fiber: single-mode single fiber

- Connector: LC

- Operating temperature: –40 °C / +85 °C

- Plug and Play installation

Further details

✅ Wide Operating Temperature:
 Designed to withstand even the most extreme environmental conditions, the TSFP-1270R-20-SMF operates over a temperature range of –40°C to +85°C , maintaining consistent performance in industrial, outdoor, or extreme temperature environments. This makes it perfect for mission-critical applications where reliability and signal continuity are essential.
✅ Plug and Play :
Thanks to Plug and Play technology, the module requires no complex configuration or additional software. Simply connect it to your compatible device to start broadcasting immediately, reducing installation time and simplifying the management of professional networks.

✅ Hardware:
 Featuring an LC port and single-mode fiber , the TSFP-1270R-20-SMF supports speeds of up to 10 Gbps , ensuring stable and high-quality connections. Its compact size ( 57.5 × 13.9 × 8.5 mm ) and rugged construction ensure compatibility with a wide range of next-generation switches and network devices.

 ✅ Performance :
 With wavelengths of 1330 nm for transmission and 1270 nm for reception , the module ensures data transfers up to 20 km with energy efficiency and optimal stability. It supports a relative humidity of 5% to 95% , ensuring consistent performance even in variable environmental conditions.

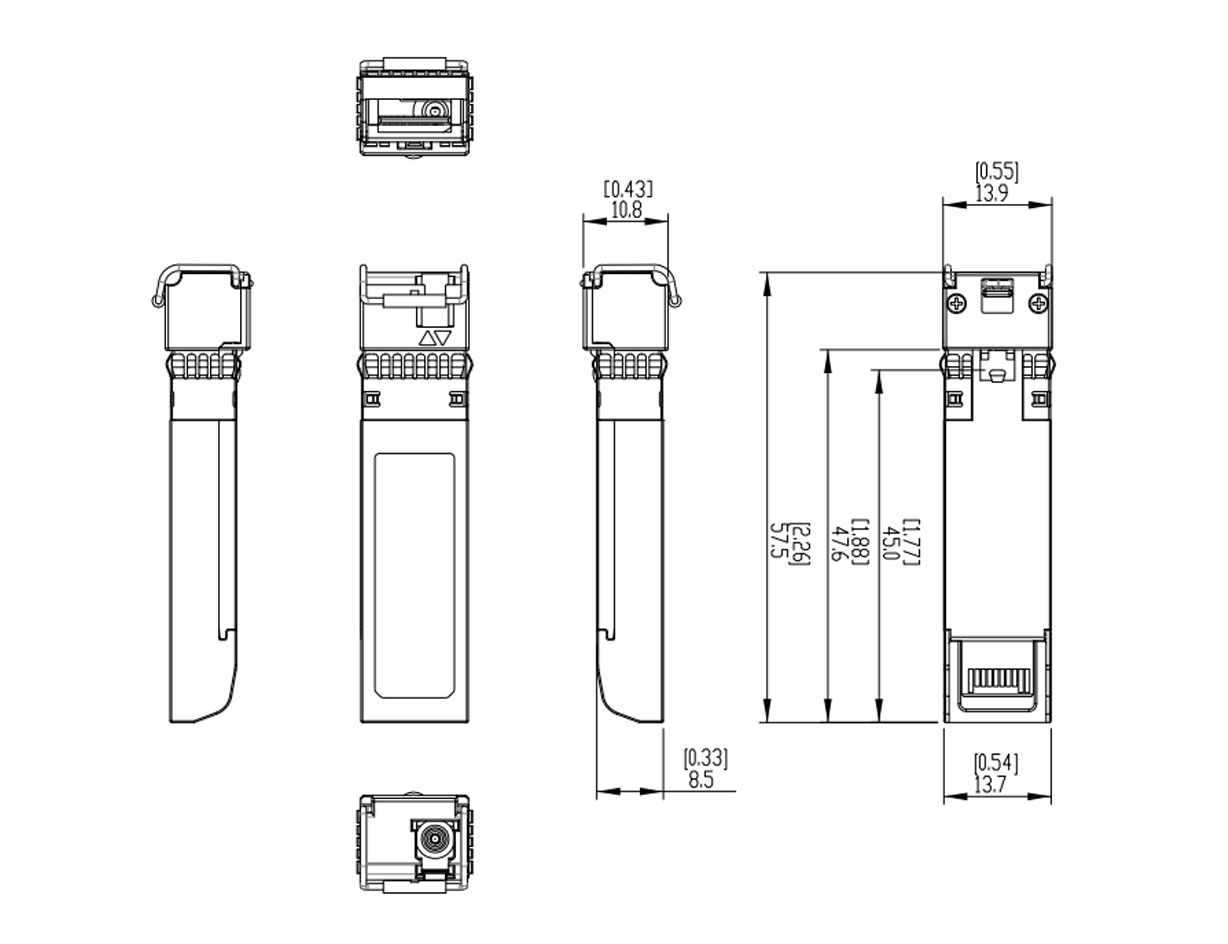

TSFP-1270R-20-SMF dimensions

Technical data sheet

Model TSFP-1270R-20-SMF
Hardware
Optical Fiber Type Single mode single fiber
Optical Port Type LC
Speed 10 Gbps

Performance
Wavelength 1270 nm sending; 1330 nm receiving
Transmission Distance 20 km
Operating Humidity 5%–95%
Operating Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Max. Speed of Optical Port 10 Gbps
Product Dimensions 57.5 mm × 13.9 mm × 8.5 mm (2.2" × 0.5" × 0.3")
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
