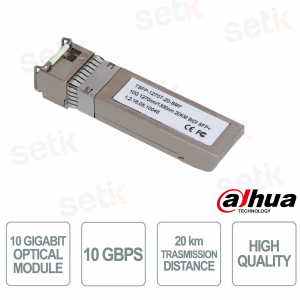

Dahua TSFP-1270R-20-SMF Optical Module – 10Gbps Transmission Up to 20km, Reliability and Professional Performance

Dahua TSFP-1270R-20-SMF Optical Module – 10Gbps Transmission Up to 20km, Reliability and Professional Performance

-57% New

TSFP-1270R-20-SMF - is a 10 Gigabit single-mode fiber optical module, designed to ensure stable and high-speed data transmissions up to 20 km . Thanks to Plug and Play technology, it is easy to install without complex configurations, offering maximum efficiency and compatibility with professional networks. Its rugged design and ability to operate in a wide temperature range from -40 °C to +85 °C ensure reliable performance even in extreme environmental conditions. Ideal for telecommunications, security and industrial automation applications, it combines speed, stability and reliability in a single compact Dahua device.

Technical Data Sheet

Reference: TSFP-1270R-20-SMF

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

TSFP-1270R-20-SMF | 10 GIGABIT OPTICAL MODULE


Dahua

The Dahua TSFP-1270R-20-SMF is a single-mode, single-fiber 10 Gigabit optical module designed for high-speed, long-distance connections up to 20 km. Thanks to Plug and Play technology, it is easy to install without configuration, ensuring maximum compatibility and high performance. Its rugged industrial design and operating range from -40°C to +85°C ensure reliability even in extreme environments, making it ideal for telecommunications, security, energy, and automation applications.

Main specifications:

- Speed: 10 Gbps

- Transmission: up to 20 km (1270 nm send / 1330 nm receive)

- Fiber: single-mode single fiber

- Connector: LC

- Operating temperature: –40 °C / +85 °C

- Plug and Play installation

Further details

Wide Operating Temperature:
Designed to withstand even the most extreme environmental conditions, the TSFP-1270R-20-SMF operates over a temperature range of –40°C to +85°C , maintaining consistent performance in industrial, outdoor, or extreme temperature environments. This makes it perfect for mission-critical applications where reliability and signal continuity are essential.
Plug and Play :
Thanks to Plug and Play technology, the module requires no complex configuration or additional software. Simply connect it to your compatible device to start broadcasting immediately, reducing installation time and simplifying the management of professional networks.

Hardware:
Featuring an LC port and single-mode fiber , the TSFP-1270R-20-SMF supports speeds of up to 10 Gbps , ensuring stable and high-quality connections. Its compact size ( 57.5 × 13.9 × 8.5 mm ) and rugged construction ensure compatibility with a wide range of next-generation switches and network devices.

Performance :
With wavelengths of 1330 nm for transmission and 1270 nm for reception , the module ensures data transfers up to 20 km with energy efficiency and optimal stability. It supports a relative humidity of 5% to 95% , ensuring consistent performance even in variable environmental conditions.
TSFP-1270R-20-SMF dimensions

Technical data sheet

Model TSFP-1270R-20-SMF
Hardware
Optical Fiber Type Single mode single fiber
Optical Port Type LC
Speed 10 Gbps

Performance

Wavelength 1270 nm sending; 1330 nm receiving
Transmission Distance 20 km
Operating Humidity 5%–95%
Operating Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Max. Speed of Optical Port 10 Gbps
Product Dimensions 57.5 mm × 13.9 mm × 8.5 mm (2.2" × 0.5" × 0.3")
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
