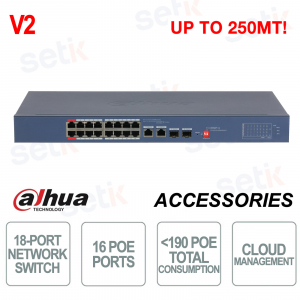

CS4218-16ET-190 V2: 18 Port Smart Managed Switch with PoE 90W - Dahua

CS4218-16ET-190 V2: 18 Port Smart Managed Switch with PoE 90W - Dahua

 
-57% nuevo

CS4218-16ET-190-V2 It is a professional smart managed switch designed for advanced networks, ideal for video surveillance and IT systems thanks to cloud management via DoLynk Care and real-time topology visualization. Equipped with 18 total ports, it includes 16 PoE ports with 802.3af/at/bt support and Hi-PoE up to 90W, ensuring stable power supply for even the most demanding devices. The Long Distance PoE function extends the connection up to 250 meters, while the PoE Watchdog ensures business continuity by automatically restarting faulty ports. The all-metal construction offers protection against surges, currents, lightning, and interference, making it ideal for professional installations in offices, businesses, and security systems. Dahua

Technical Data Sheet

referencia : CS4218-16ET-190-V2

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

CS4218-16ET-190-V2 | 18 PORT CLOUD MANAGED NETWORK SWITCH WITH 16 POE PORTS - DAHUA


Dahua

The Dahua CS4218-16ET-190 V2 is a professional smart managed switch designed for complex networks, capable of integrating local and cloud management via the DoLynk Care platform with real-time monitoring and immediate notifications. Equipped with 16 PoE ports and 2 combo uplink ports, it supports 802.3af/at/bt and Hi-PoE standards with a power output of up to 90W on the red port, ideal for high-power devices. The Long Distance PoE function extends connectivity up to 250 meters, while PoE Watchdog , loop protection and LLDP topology ensure continuous stability and intelligent maintenance. The full-metal structure, resistant to surges, interference and extreme temperatures, makes it perfect for professional installations in offices, companies, CCTV systems and industrial environments.

Main specifications:

- 18 total ports, with 16 10/100 Mbps PoE and 2 RJ-45/SFP combo ports

- Support 802.3af/at/bt and Hi-PoE, with red port up to 90W and total budget 190W

- DoLynk Care cloud management with monitoring, notifications and remote configuration

- LLDP topology visualization for advanced network management

- Long Distance PoE up to 250 m for large installations

- Smart functions: PoE Watchdog, Intelligent PoE, loop protection

- Full-metal construction with surge, lightning and interference protection

- Perfect for CCTV systems, corporate networks and professional installations

Further details

✅ Number of doors:
The switch offers 18 total ports , including 16 10/100 Mbps PoE ports for powering cameras and network devices, as well as 2 Gigabit RJ-45/SFP combo ports for high-speed uplinks, ensuring maximum scalability in professional infrastructures.
✅ Cloud Management:
Thanks to the DoLynk Care platform, the device enables advanced cloud management with real-time monitoring, immediate error notifications, remote configuration and complete control of the network infrastructure from any location.
✅ Network Topology Management:
LLDP support enables automatic generation of the network topology map , facilitating fault location, maintenance and device management with a clear view of the entire system.
✅ Long Distance PoE :
PoE ports support transmission up to 250 meters , reducing the need for repeaters or extenders, ideal for large CCTV systems with cameras far from the power point.
✅ PoE Watchdog :
The integrated function automatically monitors the status of PoE ports and automatically reboots unresponsive ones, restoring IPC connectivity and ensuring business continuity without manual intervention.
✅ Performance :
Featuring a switching capacity of 7.2 Gbps , packet forwarding rate of 5.36 Mpps , 4 Mbit buffer and 15K Jumbo Frame support, it ensures high performance, smooth traffic management and stability even in complex networks.
CS4218-16ET-190 dimensions

Technical data sheet

PRODUCT CS4218-16ET-190-V2
Basic
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
Description of Function Slots Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000Mbps (combo)
PoE Power Port 1-2 ≤ 90W, Port 3-16 ≤ 30W, total ≤ 190W
Layer Layer 2
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 5% –95% (RH), non-condensing
Power Supply External power supply: 53 VDC, 0.8 A
Power Consumption Idling: ≤6W Full load: 212W
Statics Protection Air discharge: 8 kV; Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV; Differential mode: 2 kV
Net Weight 2.29 kg (5.04 lb)
Product Dimensions 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Hardware
PoE Yes
Ethernet Port 16
Reset Button 1
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Performance
MTBF 87.10 years
Packet Buffer Size 4 Mbit
Jumbo Frame 15K Bytes
MAC Table Size 8K
VLAN Number 32
Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z
Feature
PoE Protocol IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power Consumption Management Yes
PoE Pin Assignment 1,2,4,5（V+）,3,6,7,8（V-）
Long Distance PoE Transmission Yes
VLAN Function Port-based VLAN
IEEE 802.3x Flow Control Yes
DHCP Function DHCP Client
Equipment Management Web management; App management
General
Gross Weight 2.94 kg (6.47 lb)
Packaging Dimensions 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; rack mount
Certifications THERE IS
Packing List Quick Start Guide × 1; Legal and Regulatory Information × 1; Power cord × 1; Rack-mount kit × 1
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
