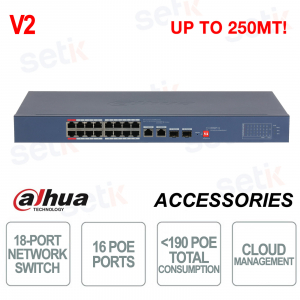

CS4218-16ET-190 V2: 18 Port Smart Managed Switch with PoE 90W - Dahua

CS4218-16ET-190 V2: 18 Port Smart Managed Switch with PoE 90W - Dahua

-57% New

CS4218-16ET-190-V2 It is a professional smart managed switch designed for advanced networks, ideal for video surveillance and IT systems thanks to cloud management via DoLynk Care and real-time topology visualization. Equipped with 18 total ports, it includes 16 PoE ports with 802.3af/at/bt support and Hi-PoE up to 90W, ensuring stable power supply for even the most demanding devices. The Long Distance PoE function extends the connection up to 250 meters, while the PoE Watchdog ensures business continuity by automatically restarting faulty ports. The all-metal construction offers protection against surges, currents, lightning, and interference, making it ideal for professional installations in offices, businesses, and security systems. Dahua

Technical Data Sheet

Reference: CS4218-16ET-190-V2

Brand: Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

CS4218-16ET-190-V2 | 18 PORT CLOUD MANAGED NETWORK SWITCH WITH 16 POE PORTS - DAHUA


Dahua

The Dahua CS4218-16ET-190 V2 is a professional smart managed switch designed for complex networks, capable of integrating local and cloud management via the DoLynk Care platform with real-time monitoring and immediate notifications. Equipped with 16 PoE ports and 2 combo uplink ports, it supports 802.3af/at/bt and Hi-PoE standards with a power output of up to 90W on the red port, ideal for high-power devices. The Long Distance PoE function extends connectivity up to 250 meters, while PoE Watchdog , loop protection and LLDP topology ensure continuous stability and intelligent maintenance. The full-metal structure, resistant to surges, interference and extreme temperatures, makes it perfect for professional installations in offices, companies, CCTV systems and industrial environments.

Main specifications:

- 18 total ports, with 16 10/100 Mbps PoE and 2 RJ-45/SFP combo ports

- Support 802.3af/at/bt and Hi-PoE, with red port up to 90W and total budget 190W

- DoLynk Care cloud management with monitoring, notifications and remote configuration

- LLDP topology visualization for advanced network management

- Long Distance PoE up to 250 m for large installations

- Smart functions: PoE Watchdog, Intelligent PoE, loop protection

- Full-metal construction with surge, lightning and interference protection

- Perfect for CCTV systems, corporate networks and professional installations

Further details

Number of doors:
The switch offers 18 total ports , including 16 10/100 Mbps PoE ports for powering cameras and network devices, as well as 2 Gigabit RJ-45/SFP combo ports for high-speed uplinks, ensuring maximum scalability in professional infrastructures.
Cloud Management:
Thanks to the DoLynk Care platform, the device enables advanced cloud management with real-time monitoring, immediate error notifications, remote configuration and complete control of the network infrastructure from any location.
Network Topology Management:
LLDP support enables automatic generation of the network topology map , facilitating fault location, maintenance and device management with a clear view of the entire system.
Long Distance PoE :
PoE ports support transmission up to 250 meters , reducing the need for repeaters or extenders, ideal for large CCTV systems with cameras far from the power point.
PoE Watchdog :
The integrated function automatically monitors the status of PoE ports and automatically reboots unresponsive ones, restoring IPC connectivity and ensuring business continuity without manual intervention.
Performance :
Featuring a switching capacity of 7.2 Gbps , packet forwarding rate of 5.36 Mpps , 4 Mbit buffer and 15K Jumbo Frame support, it ensures high performance, smooth traffic management and stability even in complex networks.
CS4218-16ET-190 dimensions

Technical data sheet

PRODUCT CS4218-16ET-190-V2
Basic
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
Description of Function Slots Port 1-16: 16 × RJ-45 10/100 Mbps (PoE); Port 17-18: 2 × RJ-45 10/100/1000 Mbps (combo); Port 17-18: 2 × SFP 1000Mbps (combo)
PoE Power Port 1-2 ≤ 90W, Port 3-16 ≤ 30W, total ≤ 190W
Layer Layer 2
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 5% –95% (RH), non-condensing
Power Supply External power supply: 53 VDC, 0.8 A
Power Consumption Idling: ≤6W Full load: 212W
Statics Protection Air discharge: 8 kV; Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV; Differential mode: 2 kV
Net Weight 2.29 kg (5.04 lb)
Product Dimensions 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Hardware
PoE Yes
Ethernet Port 16
Reset Button 1
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Performance
MTBF 87.10 years
Packet Buffer Size 4 Mbit
Jumbo Frame 15K Bytes
MAC Table Size 8K
VLAN Number 32
Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab; IEEE802.3z
Feature
PoE Protocol IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power Consumption Management Yes
PoE Pin Assignment 1,2,4,5(V+),3,6,7,8(V-)
Long Distance PoE Transmission Yes
VLAN Function Port-based VLAN
IEEE 802.3x Flow Control Yes
DHCP Function DHCP Client
Equipment Management Web management; App management
General
Gross Weight 2.94 kg (6.47 lb)
Packaging Dimensions 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; rack mount
Certifications THERE IS
Packing List Quick Start Guide × 1; Legal and Regulatory Information × 1; Power cord × 1; Rack-mount kit × 1
