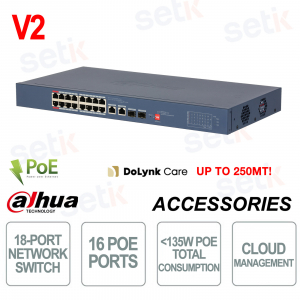

CS4218-16ET-135-V2 18 Port Cloud Managed PoE Switch 135W with 16 PoE Ports and Gigabit Uplink - Dahua

CS4218-16ET-135-V2 18 Port Cloud Managed PoE Switch 135W with 16 PoE Ports and Gigabit Uplink - Dahua

 
-57% nuevo

CS4218-16ET-135-V2 is a professional 18-channel PoE switch designed for video surveillance networks and advanced IT infrastructures, featuring 16 10/100 Mbps PoE ports and 2 Gigabit combo ports for flexible uplinks. It offers a total PoE power of 135 W , with IEEE 802.3af/at support on all ports and up to 90 W on the red ports for high-power devices. Cloud Managed management via DoLynk platform , together with functions such as PoE Watchdog, Long Distance PoE up to 250 m and VLAN , ensures centralized control and operational reliability. The full metal design, surge protection up to 6 kV and operation from -10 °C to +55 °C make it ideal for professional and industrial environments.

Technical Data Sheet

referencia : CS4218-16ET-135-V2

brand : Dahua

EAN: 6937552407640

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CS4218-16ET-135-V2 | 18 PORT CLOUD MANAGED NETWORK SWITCH WITH 16 POE PORTS - DAHUA


Dahua

The Dahua CS4218-16ET-135-V2 is a professional 18-channel PoE switch designed for video surveillance networks and advanced IT infrastructures, ideal for business and industrial environments. It has 16 10/100 Mbps PoE ports and 2 Gigabit combo ports , offering a total PoE power of 135 W with IEEE 802.3af/at support and up to 90 W on the red ports (802.3bt/Hi-PoE) for high-power devices. Cloud Managed management via DoLynk platform allows centralized monitoring, quick configuration and real-time remote control. Advanced features such as PoE Watchdog , Long Distance PoE up to 250 m , VLAN and loop protection ensure reliability, stability and reduced maintenance costs. The rugged metal chassis , surge protection up to 6 kV and operation from -10 °C to +55 °C make it a solid and durable solution for professional installations.

Main specifications:

- 18 total channels with 16 PoE ports and 2 Gigabit combo ports

- Total PoE power 135W

- Support IEEE 802.3af / 802.3at / 802.3bt / Hi-PoE

- High power red ports up to 90W

- Cloud Management with DoLynk platform

- PoE Watchdog and Long Distance PoE up to 250 m

- VLAN, Loop Protection and Network Topology Management

- Metal structure with 6 kV protection and range -10 °C / +55 °C

Further details

✅ Number of doors:
The switch features 18 total channels , with 16 10/100 Mbps PoE ports dedicated to powering network devices such as IP cameras and 2 Gigabit combo ports for high-speed uplinks, ensuring infrastructure flexibility and scalability.
✅ Cloud Management:
Cloud Managed management via the DoLynk Care platform allows real-time monitoring , centralized configuration and remote control of devices, simplifying maintenance operations and reducing intervention times.
✅ Network Topology Management:
With LLDP support, the system can automatically generate and display the network topology , allowing for quick problem identification and efficient management of connected devices.
✅ BT 90W (Red Port):
The high-power red ports support IEEE 802.3af, 802.3at, 802.3bt and Hi-PoE standards, delivering up to 90W per port , ideal for powering high-power devices such as PTZ cameras and professional equipment.
✅ Long Distance PoE :
The Long Distance PoE function allows transmission up to 250 meters , making it possible to install remote devices without the use of repeaters, maintaining connection stability and reliability.
✅ PoE Watchdog :
The intelligent PoE Watchdog system constantly monitors port status and automatically reboots unresponsive devices , reducing downtime and manual maintenance costs.
✅ Performance :
The switch offers 7.2 Gbps switching capacity , 5.36 Mpps packet forwarding rate and Layer 2 architecture, ensuring high performance, traffic stability and reliability even in high-density networks.
CS4218-16ET-135-V2 dimensions

Technical data sheet

PRODUCT CS4218-16ET-135-V2
Basic
Layer Layer 2
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
Description of Function Slots Port 1-16: 16 × RJ45 10/100 Mbps(PoE)
Port 17-18: 2 × RJ45 10/100/1000 Mbps(Combo)
Port 17-18: 2 × SFP 1000Mbps(Combo)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply Built-in power supply: 100–240 VAC, 47–63 Hz, max 3 A
Power Consumption Idling: 3 W
Full load: 141.8 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV;
Differential mode: 1 kV
Net Weight 2.4 kg (5.29 lb)
Gross Weight 3.1 kg (6.83 lb)
Product Dimensions 440 mm × 228.81 mm × 43.65 mm ( × 9.01" × 1.72") (L × W × H)
Packaging Dimensions 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; rack mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 3-16≤30W, port 1-2≤90W, total≤135W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment Port 1-2: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Port 3-16: 1, 2, (V+), 3, 6, (V-)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-16 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-16; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 1626836 h
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
VLAN Function IEEE 802.1Q VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Rack-mounting Kit
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
