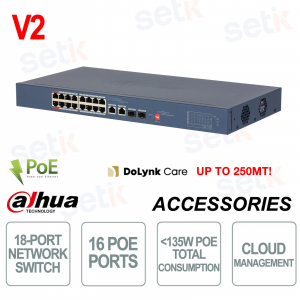

CS4218-16ET-135-V2 18 Port Cloud Managed PoE Switch 135W with 16 PoE Ports and Gigabit Uplink - Dahua

CS4218-16ET-135-V2 18 Port Cloud Managed PoE Switch 135W with 16 PoE Ports and Gigabit Uplink - Dahua

 
-57% Neu

CS4218-16ET-135-V2 is a professional 18-channel PoE switch designed for video surveillance networks and advanced IT infrastructures, featuring 16 10/100 Mbps PoE ports and 2 Gigabit combo ports for flexible uplinks. It offers a total PoE power of 135 W , with IEEE 802.3af/at support on all ports and up to 90 W on the red ports for high-power devices. Cloud Managed management via DoLynk platform , together with functions such as PoE Watchdog, Long Distance PoE up to 250 m and VLAN , ensures centralized control and operational reliability. The full metal design, surge protection up to 6 kV and operation from -10 °C to +55 °C make it ideal for professional and industrial environments.

Technical Data Sheet

Artikel-Nr.: CS4218-16ET-135-V2

Marke: Dahua

EAN: 6937552407640

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

Das 2001 gegründete asiatische Unternehmen verdankt seinen Ruf der hervorragenden Qualität seiner Produkte in Bezug auf Leistung und Kapazität. Die Produktpalette von Dahua reicht von klassischen CCTV-Systemen bis hin zu komplexeren und gegliederten Sicherheitssystemen: nicht nur Videoüberwachung, sondern auch Zutrittskontrolle, Video-Zugangssysteme, Produkte zur Wärmeerkennung und vieles mehr. Die Zuverlässigkeit, die hochmoderne Technologie und die wettbewerbsfähigen Preise, die Dahua bietet, sind nur einige der Gründe, warum Setik sich immer für den Vertrieb der Marke entschieden hat. Dahua ist seit Jahren ein solider Bezugspunkt auf dem internationalen CCTV-Markt, dank der enormen Investitionen, die jedes Jahr in Forschung und Entwicklung fließen. Die Zahlen sprechen für sich: von 2016 bis heute hat Dahua mehr als 800 Patente unter seiner eigenen Marke angemeldet. Gegenwärtig kann sich Dahua rühmen, zu den 10 weltweit führenden Unternehmen in der Welt der Sicherheit zu gehören. In diesem Jahr wurde Dahua mit dem 2. Platz in der Rangliste "2018 TOP SECURITY 50" ausgezeichnet.

Die Produkte der Marke Dahua, die von Setik SRL verkauft werden, können als OEM-Produkte geliefert werden, d.h. Produkte, die vollständig original Dahua-Produkte sind, aber ein anderes ästhetisches Erscheinungsbild haben, das dem Online-Markt vorbehalten ist (im Allgemeinen in Bezug auf Logo und Verpackung). Dies beeinträchtigt in keiner Weise die Garantie und die technischen Eigenschaften des Produkts, das immer ein Original Dahua ist, noch irgendwelche Aktualisierungen und Funktionalitäten.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. ist einer der weltweit führenden Anbieter von Videoüberwachungslösungen mit mehr als 13.000 Mitarbeitern und 35 aktiven Tochtergesellschaften weltweit.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Die besten Dahua-Produkte: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Dahua-Produkte für die digitale Videoüberwachung IP, HYBRIDA, HD-SDI, HDCVI, wie z.B. Kameras, Rekorder, Zugangskontrolle, Zubehör und Wifi-Videosprechanlagen. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 26 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
INSTALLATEUR FINDEN

CS4218-16ET-135-V2 | 18 PORT CLOUD MANAGED NETWORK SWITCH WITH 16 POE PORTS - DAHUA


Dahua

The Dahua CS4218-16ET-135-V2 is a professional 18-channel PoE switch designed for video surveillance networks and advanced IT infrastructures, ideal for business and industrial environments. It has 16 10/100 Mbps PoE ports and 2 Gigabit combo ports , offering a total PoE power of 135 W with IEEE 802.3af/at support and up to 90 W on the red ports (802.3bt/Hi-PoE) for high-power devices. Cloud Managed management via DoLynk platform allows centralized monitoring, quick configuration and real-time remote control. Advanced features such as PoE Watchdog , Long Distance PoE up to 250 m , VLAN and loop protection ensure reliability, stability and reduced maintenance costs. The rugged metal chassis , surge protection up to 6 kV and operation from -10 °C to +55 °C make it a solid and durable solution for professional installations.

Main specifications:

- 18 total channels with 16 PoE ports and 2 Gigabit combo ports

- Total PoE power 135W

- Support IEEE 802.3af / 802.3at / 802.3bt / Hi-PoE

- High power red ports up to 90W

- Cloud Management with DoLynk platform

- PoE Watchdog and Long Distance PoE up to 250 m

- VLAN, Loop Protection and Network Topology Management

- Metal structure with 6 kV protection and range -10 °C / +55 °C

Further details

✅ Number of doors:
The switch features 18 total channels , with 16 10/100 Mbps PoE ports dedicated to powering network devices such as IP cameras and 2 Gigabit combo ports for high-speed uplinks, ensuring infrastructure flexibility and scalability.
✅ Cloud Management:
Cloud Managed management via the DoLynk Care platform allows real-time monitoring , centralized configuration and remote control of devices, simplifying maintenance operations and reducing intervention times.
✅ Network Topology Management:
With LLDP support, the system can automatically generate and display the network topology , allowing for quick problem identification and efficient management of connected devices.
✅ BT 90W (Red Port):
The high-power red ports support IEEE 802.3af, 802.3at, 802.3bt and Hi-PoE standards, delivering up to 90W per port , ideal for powering high-power devices such as PTZ cameras and professional equipment.
✅ Long Distance PoE :
The Long Distance PoE function allows transmission up to 250 meters , making it possible to install remote devices without the use of repeaters, maintaining connection stability and reliability.
✅ PoE Watchdog :
The intelligent PoE Watchdog system constantly monitors port status and automatically reboots unresponsive devices , reducing downtime and manual maintenance costs.
✅ Performance :
The switch offers 7.2 Gbps switching capacity , 5.36 Mpps packet forwarding rate and Layer 2 architecture, ensuring high performance, traffic stability and reliability even in high-density networks.

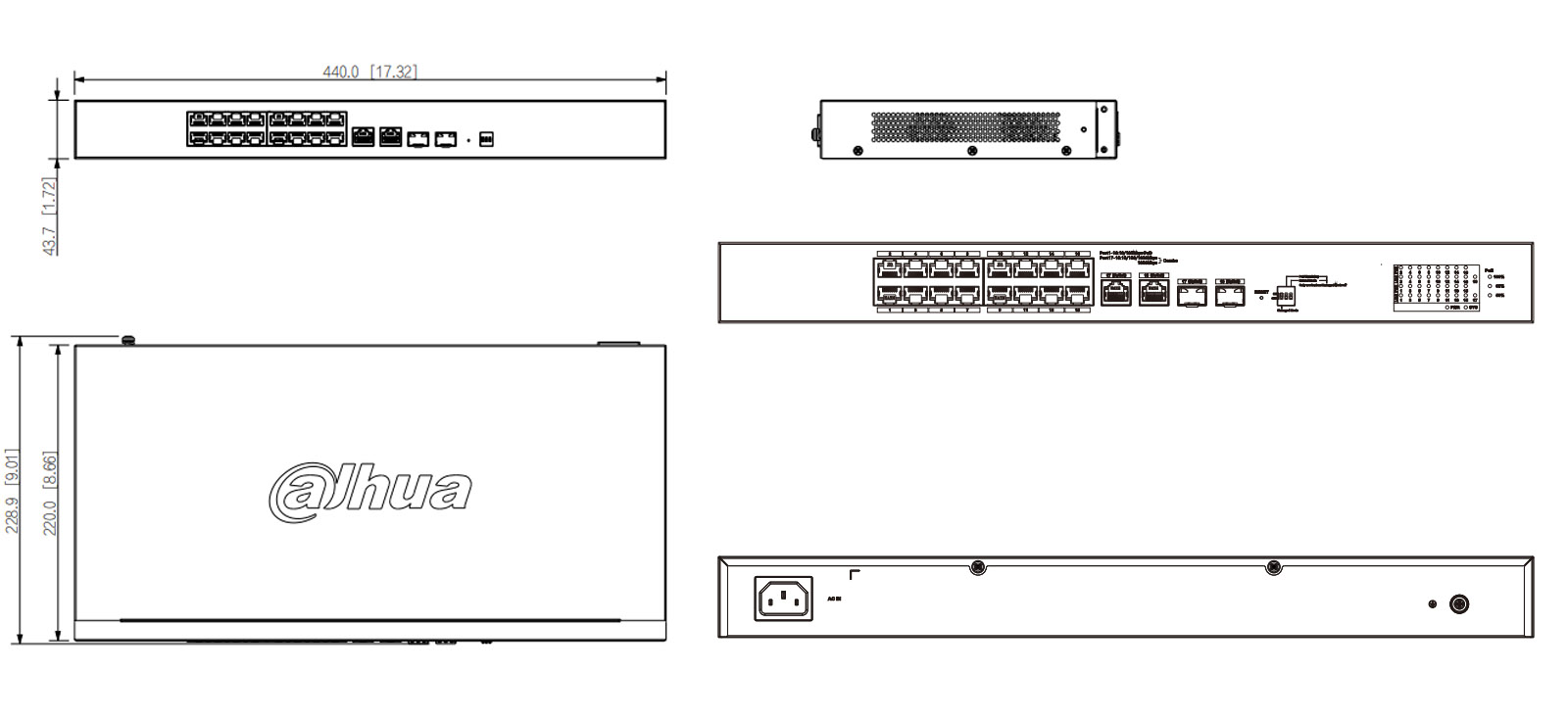

CS4218-16ET-135-V2 dimensions

Technical data sheet

PRODUCT CS4218-16ET-135-V2
Basic
Layer Layer 2
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
Description of Function Slots Port 1-16: 16 × RJ45 10/100 Mbps(PoE)
Port 17-18: 2 × RJ45 10/100/1000 Mbps(Combo)
Port 17-18: 2 × SFP 1000Mbps(Combo)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply Built-in power supply: 100–240 VAC, 47–63 Hz, max 3 A
Power Consumption Idling: 3 W
Full load: 141.8 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV;
Differential mode: 1 kV
Net Weight 2.4 kg (5.29 lb)
Gross Weight 3.1 kg (6.83 lb)
Product Dimensions 440 mm × 228.81 mm × 43.65 mm ( × 9.01" × 1.72") (L × W × H)
Packaging Dimensions 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; rack mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 3-16≤30W, port 1-2≤90W, total≤135W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment Port 1-2: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Port 3-16: 1, 2, (V+), 3, 6, (V-)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-16 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-16; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 1626836 h
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
VLAN Function IEEE 802.1Q VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Rack-mounting Kit
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
