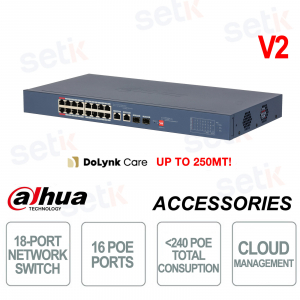

Dahua 18-Port Cloud-Managed PoE Switch with 16 PoE Channels and 240W Total Power for IP Video Surveillance

Dahua 18-Port Cloud-Managed PoE Switch with 16 PoE Channels and 240W Total Power for IP Video Surveillance

 
-57% nuevo

CS4218-16ET-240-V2 The PoE switch is a professional cloud-managed solution designed for video surveillance networks and advanced IT infrastructures. Equipped with 18 total channels , including 16 10/100 Mbps PoE ports and 2 Gigabit combo ports , it guarantees maximum connection flexibility. The high total PoE power of 240 W allows direct powering of IP cameras and high-power devices, with IEEE 802.3af/at/bt support up to 90 W per port . Cloud management via the DoLynk app , PoE Watchdog functions, Long Distance PoE up to 250 m and loop and surge protection make this switch reliable, secure and perfectly optimized for professional smart systems. Dahua

Technical Data Sheet

referencia : CS4218-16ET-240-V2

brand : Dahua

EAN: 6937552407664

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CS4218-16ET-240-V2 | 18 PORT CLOUD MANAGED NETWORK SWITCH WITH 16 POE PORTS - DAHUA


Dahua

The Dahua CS4218-16ET-240-V2 PoE switch is designed for IP video surveillance systems and professional networks that require high performance and centralized management. It has a total of 18 channels , with 16 PoE ports dedicated to directly powering cameras and network devices, supported by a total PoE power of 240 W. Cloud and web management, combined with the advanced functions of PoE Watchdog , Long Distance PoE up to 250 meters and VLAN and loop protection , guarantees stability, security and operational continuity even in complex environments with a high device density.

Main specifications:

- 18 total channels with 16 10/100 Mbps PoE ports

- Total PoE power 240W with IEEE 802.3af/at/bt support

- Up to 90W per port on dedicated ports

- Cloud Management with DoLynk platform

- PoE Watchdog for automatic port recovery

- Long Distance PoE up to 250 m

- VLAN, loop and surge protection

- Professional metal structure for continuous use

Further details

✅ Number of doors:
The switch has 18 total channels , including 16 PoE ports dedicated to powering and directly connecting IP cameras and network devices, plus 2 Gigabit combo ports , ensuring scalability and flexibility for professional video surveillance and networking systems.
✅ Cloud Management:
Centralized cloud management via the DoLynk platform enables real-time remote control , port status monitoring, and automatic notifications, simplifying maintenance and improving the operational efficiency of the entire network.
✅ Network Topology Management:
Thanks to LLDP support, the switch is able to generate and display the network topology , allowing for quick identification of connected devices and advanced management of anomalies directly from the web or cloud interface.
✅ BT 90W (Red Port):
The high-power red ports support IEEE 802.3af/at/bt and Hi-PoE standards, delivering up to 90W per single port , ideal for powering PTZ cameras and high-drain devices without external power supplies.
✅ Long Distance PoE :
The Long Distance PoE function allows transmission up to 250 meters , making the switch perfect for large installations such as warehouses, parking lots and industrial perimeters, maintaining reliability and continuity of power supply.
✅ PoE Watchdog :
The intelligent PoE Watchdog system automatically monitors port status and automatically reboots non-responsive ports , ensuring immediate connection restoration and dramatically reducing manual intervention.
✅ Performance :
Designed for professional environments, the switch offers switching capacity of up to 7.2 Gbps , packet forwarding rate of 5.36 Mpps and 4 Mbit buffer , ensuring stability, speed and reliability even in high data traffic networks.
CS4218-16ET-240-V2 dimensions

Technical data sheet

PRODUCT CS4218-16ET-240-V2
Basic
Layer Layer 2
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
Description of Function Slots Port 1-16: 16 × RJ45 10/100 Mbps(PoE)
Port 17-18: 2 × RJ45 10/100/1000 Mbps(Combo)
Port 17-18: 2 × SFP 1000Mbps(Combo)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply Built-in power supply: 100–240 VAC, 47–63 Hz, max 4 A
Power Consumption Idling: 3 W
Full load: 246.8 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV;
Differential mode: 1 kV
Net Weight 2.5 kg (5.51 lb)
Gross Weight 3.2 kg (7.05 lb)
Product Dimensions 440 mm × 228.81 mm × 43.65 mm ( × 9.01" × 1.72") (L × W × H)
Packaging Dimensions 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; rack mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 3-16≤30W, port 1-2≤90W, total≤240W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment Port 1-2: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Port 3-16: 1, 2, (V+), 3, 6, (V-)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-16 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-16; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 1626836 h
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
VLAN Function IEEE 802.1Q VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Rack-mounting Kit
