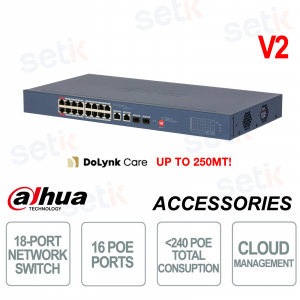

Dahua 18-Port Cloud-Managed PoE Switch with 16 PoE Channels and 240W Total Power for IP Video Surveillance

Dahua 18-Port Cloud-Managed PoE Switch with 16 PoE Channels and 240W Total Power for IP Video Surveillance

-57% New

CS4218-16ET-240-V2 The PoE switch is a professional cloud-managed solution designed for video surveillance networks and advanced IT infrastructures. Equipped with 18 total channels , including 16 10/100 Mbps PoE ports and 2 Gigabit combo ports , it guarantees maximum connection flexibility. The high total PoE power of 240 W allows direct powering of IP cameras and high-power devices, with IEEE 802.3af/at/bt support up to 90 W per port . Cloud management via the DoLynk app , PoE Watchdog functions, Long Distance PoE up to 250 m and loop and surge protection make this switch reliable, secure and perfectly optimized for professional smart systems. Dahua

Technical Data Sheet

Reference: CS4218-16ET-240-V2

Brand: Dahua

EAN: 6937552407664

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

The Asian Company, born in 2001, is famous because of the excellent quality of its product in terms of performances and potential.

The range of products made by Dahua includes not only classic CCTV systems but also more complex and articulate systems: not only video surveillance, indeed, but also access control, video intercoms, thermal cameras and much more.

The reliability, the cutting-edge technologies and the competitive prices offered by Dahua are only some of the reasons why Setik has always chosen to distribute this brand. Dahua has been for years a reference point in the international CCTV market, due to the huge investments dedicated every year to Research and Development. Numbers are clear: since 2016, Dahua has registered more than 800 patents with its own brand.

The Dahua-branded products sold by Setik Srl could eventually be delivered as OEM: this means that the items are absolutely original and made by Dahua, but characterized by a different aesthetic look reserved for the online market (generally as far as the logo and the package are regarded).

This has no effects on the warranty and on the technical specifications nor even on the possible updates and functionalities, because the products are authentic Dahua’s ones.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. is one of the leading solution providers in video surveillance industry, with more than 13,000 employees and 35 active branches all over the world.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Best Dahua Products: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua, dahuatech, dahua distribution, dahua national supplier [meta_description] => Dahua, TVCC manufacturer, IP, Analogue and SDI,HD-CVI [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CS4218-16ET-240-V2 | 18 PORT CLOUD MANAGED NETWORK SWITCH WITH 16 POE PORTS - DAHUA


Dahua

The Dahua CS4218-16ET-240-V2 PoE switch is designed for IP video surveillance systems and professional networks that require high performance and centralized management. It has a total of 18 channels , with 16 PoE ports dedicated to directly powering cameras and network devices, supported by a total PoE power of 240 W. Cloud and web management, combined with the advanced functions of PoE Watchdog , Long Distance PoE up to 250 meters and VLAN and loop protection , guarantees stability, security and operational continuity even in complex environments with a high device density.

Main specifications:

- 18 total channels with 16 10/100 Mbps PoE ports

- Total PoE power 240W with IEEE 802.3af/at/bt support

- Up to 90W per port on dedicated ports

- Cloud Management with DoLynk platform

- PoE Watchdog for automatic port recovery

- Long Distance PoE up to 250 m

- VLAN, loop and surge protection

- Professional metal structure for continuous use

Further details

Number of doors:
The switch has 18 total channels , including 16 PoE ports dedicated to powering and directly connecting IP cameras and network devices, plus 2 Gigabit combo ports , ensuring scalability and flexibility for professional video surveillance and networking systems.
Cloud Management:
Centralized cloud management via the DoLynk platform enables real-time remote control , port status monitoring, and automatic notifications, simplifying maintenance and improving the operational efficiency of the entire network.
Network Topology Management:
Thanks to LLDP support, the switch is able to generate and display the network topology , allowing for quick identification of connected devices and advanced management of anomalies directly from the web or cloud interface.
BT 90W (Red Port):
The high-power red ports support IEEE 802.3af/at/bt and Hi-PoE standards, delivering up to 90W per single port , ideal for powering PTZ cameras and high-drain devices without external power supplies.
Long Distance PoE :
The Long Distance PoE function allows transmission up to 250 meters , making the switch perfect for large installations such as warehouses, parking lots and industrial perimeters, maintaining reliability and continuity of power supply.
PoE Watchdog :
The intelligent PoE Watchdog system automatically monitors port status and automatically reboots non-responsive ports , ensuring immediate connection restoration and dramatically reducing manual intervention.
Performance :
Designed for professional environments, the switch offers switching capacity of up to 7.2 Gbps , packet forwarding rate of 5.36 Mpps and 4 Mbit buffer , ensuring stability, speed and reliability even in high data traffic networks.

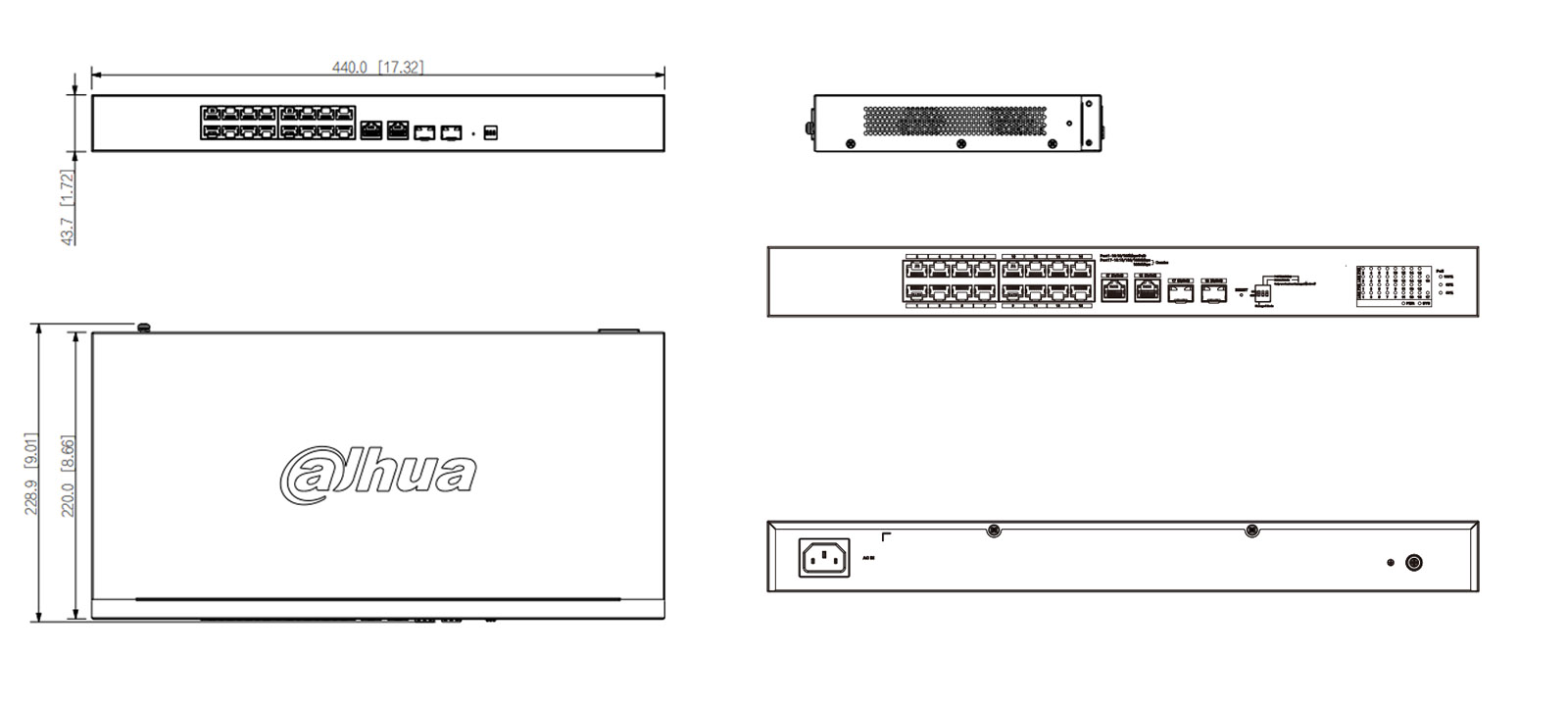

CS4218-16ET-240-V2 dimensions

Technical data sheet

PRODUCT CS4218-16ET-240-V2
Basic
Layer Layer 2
Switching Capacity 7.2 Gbps
Packet Forwarding Rate 5.36 Mpps
Description of Function Slots Port 1-16: 16 × RJ45 10/100 Mbps(PoE)
Port 17-18: 2 × RJ45 10/100/1000 Mbps(Combo)
Port 17-18: 2 × SFP 1000Mbps(Combo)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply Built-in power supply: 100–240 VAC, 47–63 Hz, max 4 A
Power Consumption Idling: 3 W
Full load: 246.8 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV;
Differential mode: 1 kV
Net Weight 2.5 kg (5.51 lb)
Gross Weight 3.2 kg (7.05 lb)
Product Dimensions 440 mm × 228.81 mm × 43.65 mm ( × 9.01" × 1.72") (L × W × H)
Packaging Dimensions 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; rack mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 3-16≤30W, port 1-2≤90W, total≤240W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment Port 1-2: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Port 3-16: 1, 2, (V+), 3, 6, (V-)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-16 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-16; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 1626836 h
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
VLAN Function IEEE 802.1Q VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Rack-mounting Kit
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
