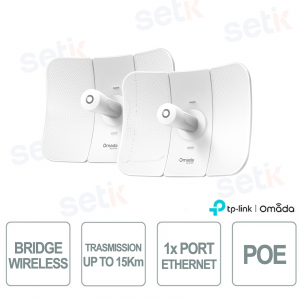

Omada Beam Bridge 5 UR KIT Wireless Bridge 5GHz 867Mbps, PtP up to 15 km, 23 dBi Antennas, PoE Gigabit, IP65 Outdoor

Omada Beam Bridge 5 UR KIT Wireless Bridge 5GHz 867Mbps, PtP up to 15 km, 23 dBi Antennas, PoE Gigabit, IP65 Outdoor

nuevo

Beam Bridge 5 UR KIT is a professional 5 GHz wireless bridge designed for long-distance point-to-point connections up to 15 km , ideal for connecting networks between buildings, industrial sites, rural areas or remote infrastructures. Thanks to Wi-Fi technology up to 867 Mbps with 802.11ac standard and 23 dBi high-gain directional antennas , it guarantees stable and low-latency transmissions even over long distances. The kit is pre-configured Plug & Play with PtP auto-pairing , allowing immediate installation without complex configurations. It has a Gigabit PoE port with 802.3af support and Passive PoE 24/48V , reducing cabling and installation costs. The IP65 weatherproof design with 6 kV lightning protection and operating temperature from -40°C to +70°C makes it perfect for extreme outdoor environments. It also supports remote management via Omada SDN, Web UI or App for centralized network monitoring and configuration. Omada

Technical Data Sheet

referencia : Beam Bridge 5 UR KIT

brand : OMADA

EAN: 1210002603782

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


Beam Bridge 5 UR KIT | ACCESS POINT DESKTOP WI-FI 6 AX3000


Made Omada

The TP-Link Omada Beam Bridge 5 UR KIT is a professional 5 GHz wireless bridge designed for ultra-long distance point-to-point connections up to 15 km , ideal for connecting buildings, industrial sites or remote areas where it is not possible to wire the network. Thanks to Wi-Fi technology up to 867 Mbps with 802.11ac standard and 23 dBi high-gain directional antennas , it guarantees stable and low-latency transmissions even over long distances. The kit is preconfigured Plug & Play with PtP auto-pairing , allowing quick installation without complex configurations. The presence of a Gigabit PoE port with 802.3af support and Passive PoE 24/48V simplifies wiring and power supply via a single cable. The IP65 weatherproof design with 6 kV lightning protection and operation from -40°C to +70°C makes it perfect for outdoor installations. It also supports remote management via Omada SDN, Web UI or App for centralized network monitoring and configuration.

Main specifications:

- 5 GHz wireless bridge up to 867 Mbps with 802.11ac standard

- Point-to-point connection up to 15 km with 23 dBi directional antennas

- Plug & Play pre-configured kit with PtP auto-pairing

- Gigabit Ethernet port with 802.3af PoE power supply and 24/48V Passive PoE

- IP65 weatherproof construction with 6kV lightning protection

- Remote management via Omada SDN, Web interface or App

Further details

Long-range wireless transmissions up to 15km:
The bridge uses 5 GHz wireless technology with 802.11ac standard up to 867 Mbps and 23 dBi high-gain directional antennas , ensuring stable point-to-point connections, low latency and ultra-long range coverage ideal for connecting buildings, industrial sites or remote areas that are difficult to wire.
Intuitive installation with pre-configured Plug & Play kit:
The system comes as a pre-configured kit with automatic PtP auto-pairing , allowing you to instantly activate the wireless connection simply by powering the devices, without complex configurations or advanced networking skills.
Remote alignment with the Omada app:
Thanks to the App-Guided Alignment function, the Omada app allows you to view the signal strength in real time , facilitating the precise alignment of the antennas even over long distances and ensuring optimal transmission performance and stable connection .
Easy installation with PoE power supply:
The presence of a Gigabit Ethernet port with PoE 802.3af and Passive PoE 24/48V support allows power and data to be transmitted via a single network cable , reducing installation time, cabling and implementation costs.
Designed for outdoor and extreme environments:
The IP65 weatherproof design, with lightning protection up to 6 kV and operating temperature from -40°C to +70°C , ensures reliability and continuity of service even in severe climatic conditions .
Centralized remote monitoring and management:
The device supports management via Omada SDN, Web interface or App , allowing remote network configuration, monitoring and diagnostics , ideal for distributed wireless infrastructures and professional installations.

Technical data sheet

Model Beam Bridge 5 UR KIT
HARDWARE FEATURES
Interface 1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In
Key 1 × Reset Button
1 × System Mode Selection Button
DIP Switch Role Switch
Diet 802.3af PoE (1.2pins; 3.6pins)
24V or 48V Passive PoE (+4.5pins; -7.8pins) (Passive PoE Adapter Included)
Energy consumption 15.8W
Dimensions (L x W x H) 14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm)
Antenna External 2×2 Dual-Polarized Directional MIMO Antennas
5 GHz: 23 dBi
Emission pattern width Horizontal: 9°, Vertical: 7°
Weatherproof Enclosure IP65
Bandwidth 5 GHz: 20 MHz/40 MHz/80 MHz
Mounting type Pole Mounting (Kits Included)
WIRELESS FEATURES
PtP Yes
Transmission Distance 15 km (9.3 mi)
Wireless standards IEEE 802.11 a/n/ac
Frequency 5 GHz
Signal rate 5 GHz: Up to 867 Mbps
Wireless functionality MU-MIMO: 5G 2x2 MU-MIMO DL
Maximum number of associated STAs: 8
Speed Test
Channel Optimization
Antenna Alignment
ACS (Automatic Channel Selection)
Rate Limit
Guest Network

Wireless security VLAN
Rogue AP Detection
Maximum number of MAC Filter: 4,000
Wireless Encryption
Transmission power THERE IS:
<23 dbm="" 5="" ghz="" u-nii-1="" 2a="" erip="" br=""> <30 dbm="" 5="" ghz="" u-nii-1="" 2c="" erip="" br=""> FCC:
<27 dbm="" 5="" ghz="" u-nii-1="" br=""> <27 dbm="" 5="" ghz="" u-nii-3="" td="">
MANAGEMENT
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management Omada Central (Cloud-Based)
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requires the use of an Omada Controller.
Email alerts Yes
LED ON/OFF Yes
SNMP Yes
SSH Yes
Web-based management Yes
Zero-Touch Provisioning Yes
OTHER
Certification

CE, FCC, RoHS

Package Contents

Beam Bridge 5 UR KIT
Installation Guide
Mounting Kit
Passive PoE Adapter
Power Cord

System requirements

Ethernet Ports: ±6 kV

Environment

Operating Temperature: -40°C–70°C (-40°F–158°F);
Storage Temperature: -40–70℃ (-40–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Weight

1.1 kg (2.43 lb)
